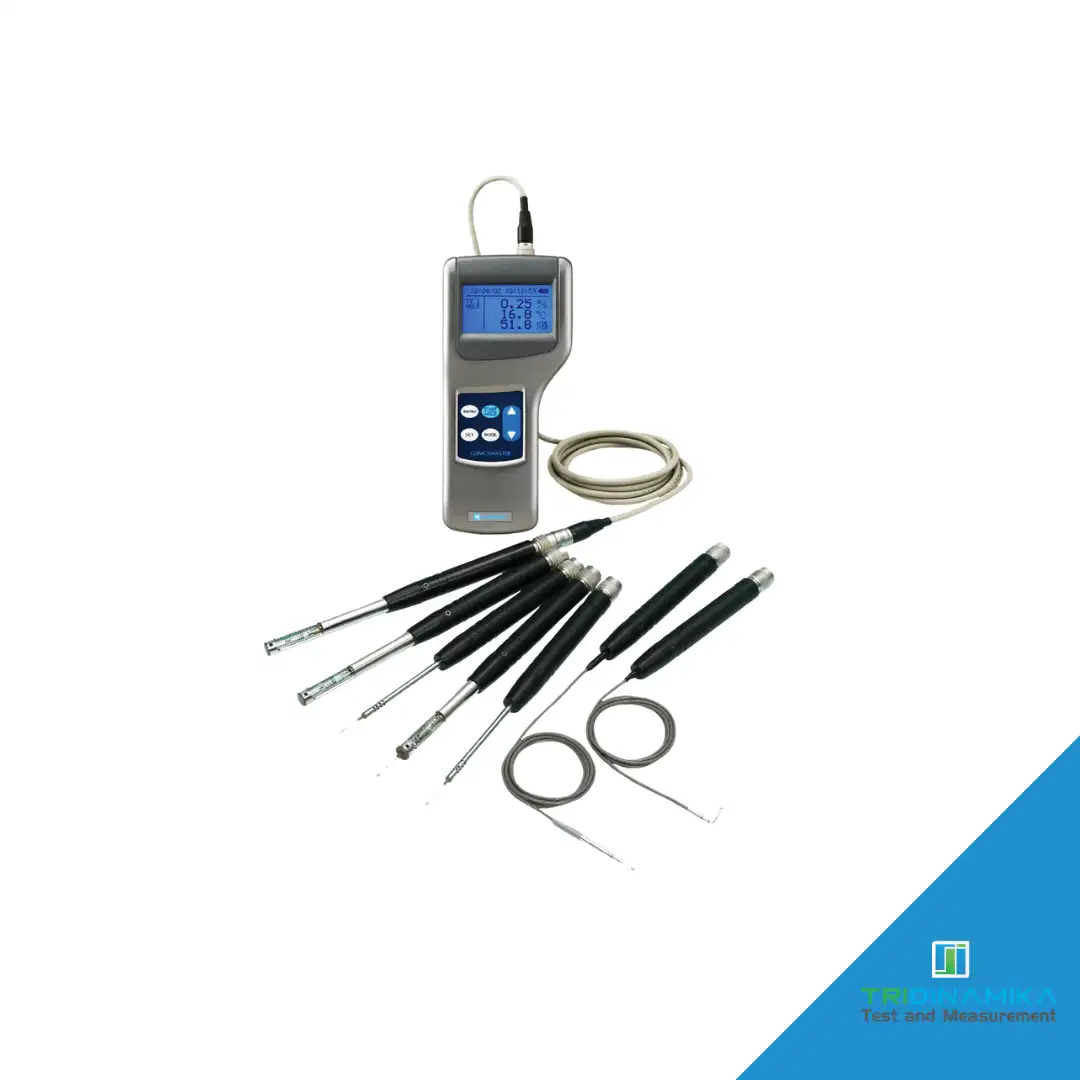

Climomaster Hot-Wire Anemometer – 6501 Series probes can measure temperature and/or humidity along with air flow. Other probes are designed for use in turbulent or high-velocity airflow and some are miniaturized for use in really tight spaces like those encountered when checking the cooling profile of a circuit board. The unit comes standard with 20,000 record storage capacity and advanced data logging capability. It can also be ordered with a pressure sensor and analog output if desired. Many additional accessories such as software, extension rods, hands-free case and special cable lengths are also available.
All of these advanced options and extremely well-crafted components have helped in making the Climomaster Hot-Wire Anemometer – 6501 Series. the top choice for some primary applications, including HVAC Testing, IAQ Investigations, Critical Environment Certification, HEPA Filter Performance Testing, Turbulent Air Testing, Manufacturing Process Controls, and more. All units come standard with an automatic barometric pressure compensation feature. Which helps maintain their excellent accuracy rating even in extreme altitudes
| Weight | 7000 g |
|---|
| Main Unit Specifications | ||
|---|---|---|
| Differential Pressure | ||
| Range | -5 to 5 kPa | |
| Resolution | 0.01 kPa | |
| Accuracy | ±3% of READING or ±0.01 kPa whichever is greater | |
| General Specifications | ||
| Analog Output | DC 0 to 1 V | |
| Interface | USB / Printer | |
| Datalogging | Stores up to 20000 measurement data | |
| Power Supply | 6 × AA Batteries or AC Adapter (AC 100 to 240 V , 50/60 Hz) | |
| Weight | 0.9 lbs (400 g) | |
| Operating Environment | 41 to 104°F (5 to 40°C) with no condensation | |
| Storage Environment | 14 to 122°F (-10 to 50°C) with no condensation | |
| Standards | CE-mark | |
| Warranty | 2 year | |
| What’s Included | Meter, Operation Manual, Carrying Case, USB Cable, AA Batteries, 2m Probe Cable | |
| Unit Model | 6501-0E | 6501-CE | |
|---|---|---|---|
| Differential Pressure | O | ||
| Analog Output | O | ||
| USB Interface | O | O | |
| Printer Interface | O | O | |
| Measurement Specifications | ||
|---|---|---|
| Air Velocity | ||
| Range | 2 to 9840 FPM (0.01 to 50 m/s) | |
| Resolution | 1 FPM (0.01 m/s) | |
| Accuracy | +/- 2% of READING or +/- 0.015 m/s (+/- 3 FPM) whichever is greater | |
| Temperature | ||
| Range | -4 to 158°F (-20 to 70°C) | |
| Resolution | 1°F (0.1°C) | |
| Accuracy | +/- 1°F (+/- 0.5 °C) | |
| Relative Humidity | ||
| Range | 2.0 to 98.0 %RH | |
| Resolution | 0.1% | |
| Accuracy | ±2.0% (at range of 2 to 80%) ±3.0% (at range of 80 to 98%) | |
| General Specifications | ||
| Operating Environment | -4 to 158°F (-20 to 70°C) with no condensation | |
| Storage Environment | 14 to 122°F (-10 to 50°C) with no condensation | |
| Standards | CE-mark | |
| Warranty | 2 year | |
| Standard Accessories | Probe, NIST Certificate | |
| Probe Model | 6531-2G | 6541-2G | 6561-2G | 6542-2G | 6533-2G | 6543-2G | 6551-2G | 6552-2G |
|---|---|---|---|---|---|---|---|---|
| Air Velocity Range (FPM) | 2 to 6000 | 2 to 6000 | 2 to 9840 | 2 to 6000 | 2 to 1000 | 2 to 1000 | 2 to 6000 | 2 to 6000 |
| Airflow Direction | Uni | Uni | Uni | Omni | Omni | Omni | Omni | Omni |
| Probe Type | Rod | Rod | Rod | Needle | Spherical | Spherical | Miniature | Miniature |
| Air Velocity | O | O | O | O | O | O | O | O |
| Temperature | O | O | O | O | O | O | ||
| Relative Humidity | O | O |
