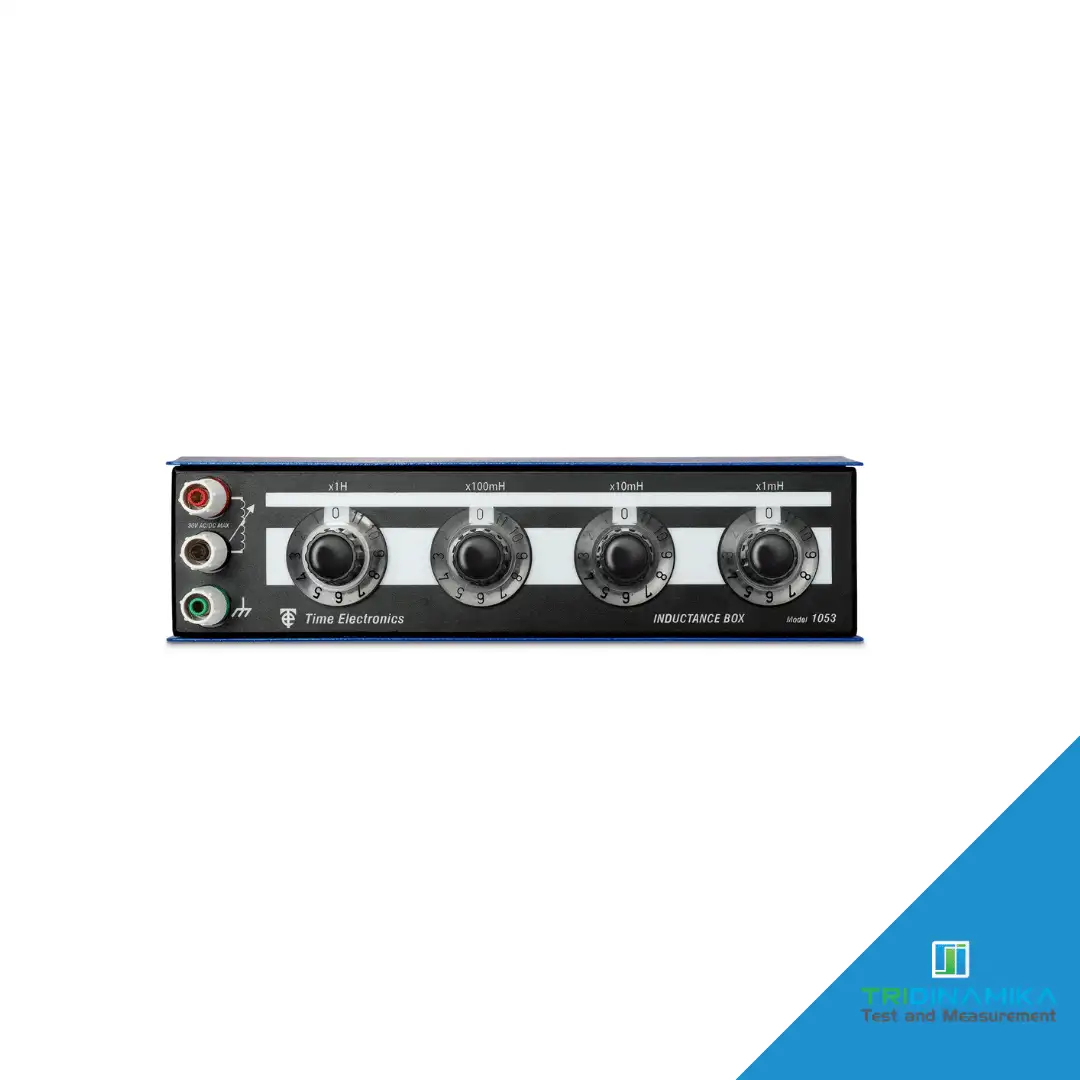

A precision decade inductance box suitable for filter design, general purpose substitution, DC to DC converter design and calibration of measuring instruments.
The 1053 is housed in a fully screened robust metal case making it durable and compact. It is a practical instrument that is simple operation, suitable for use in electronics, production, R&D, or as a calibration tool in the lab or field.
Inductance is set by four easy-to-read dials that are divided into 4 decades. These provide 1 mH, 10 mH, 100 mH, and 1 H steps. The maximum setting is 11.11 H.
The unit features custom wound, high permeability ferrite core inductors that ensure insignificant influence from external magnetic fields and maximum stability.
In-line Readout
Inductance is selected by dialling the value required using the rotary switches. This enables precise setting with a clear unambiguous indication.
Each decade is scaled from 0 to 11. This allows a convenient overlap of the set values.
Safety Terminals
The 1053 connections are via safety terminals that are compatible with standard plugs, 4 mm shrouded plugs, bare wires, and spade terminals.
These terminals are specifically designed with safety features including limited opening distance and a raised flange around the metal connection surface. This ensures that the clearances are sufficient to make the exposed metal parts touch-proof.Keyfeatures :
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free
A precision decade inductance box suitable for filter design, general purpose substitution, DC to DC converter design and calibration of measuring instruments.
The 1053 is housed in a fully screened robust metal case making it durable and compact. It is a practical instrument that is simple operation, suitable for use in electronics, production, R&D, or as a calibration tool in the lab or field.
Inductance is set by four easy-to-read dials that are divided into 4 decades. These provide 1 mH, 10 mH, 100 mH, and 1 H steps. The maximum setting is 11.11 H.
The unit features custom wound, high permeability ferrite core inductors that ensure insignificant influence from external magnetic fields and maximum stability.
In-line Readout
Inductance is selected by dialling the value required using the rotary switches. This enables precise setting with a clear unambiguous indication.
Each decade is scaled from 0 to 11. This allows a convenient overlap of the set values.
Safety Terminals
The 1053 connections are via safety terminals that are compatible with standard plugs, 4 mm shrouded plugs, bare wires, and spade terminals.
These terminals are specifically designed with safety features including limited opening distance and a raised flange around the metal connection surface. This ensures that the clearances are sufficient to make the exposed metal parts touch-proof.
| Brand |
Time Electronic |
|---|
Time Electronics is a UK-based brand specializing in high-precision calibration and test equipment. The company provides advanced solutions for industries such as electrical calibration, process control, and metrology laboratories.
