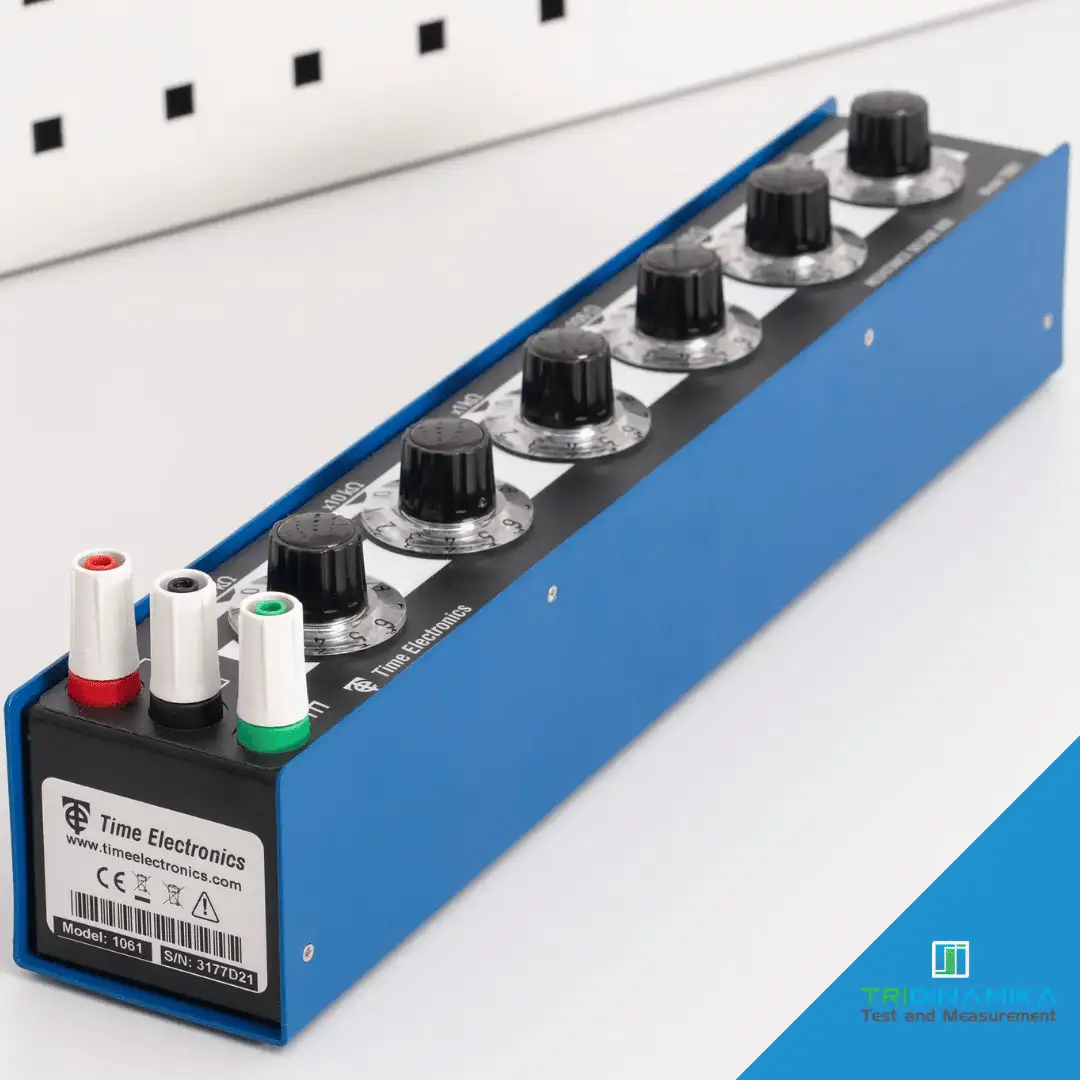

A cost effective resistance decade box designed to meet the standard required in both educational and industrial applications. Metal film resistors with a 0.75 watt power rating are used throughout, providing the advantages of stability and low temperature coefficient.
The 1061 features six large rotary switches, each with a clear numerical readout that makes resistance setting easy and fast. The robust design provides a durable solution for long-term operation, making it ideal for use in education.
The slimline form factor means it takes up minimum bench space, while the 1 % accuracy and wide range makes it suitable for production or select-on-test usage. The case provides complete electrostatic screening.
Safety Terminals
The 1061 connections are via safety terminals that are compatible with 4 mm shrouded plugs, standard plugs, bare wires, and spade terminals.
These terminals are specifically designed with safety features including limited opening distance and a raised flange around the metal connection surface. This ensures that the clearances are sufficient to make the exposed metal parts touch-proof.
Simple Operation and In-line Readout
Resistance is selected by dialling the value required using the rotary switches. This enables precise setting with a clear unambiguous indication.
Each decade is scaled from 0 to 11. This allows a convenient overlap of the set values.Keyfeatures :
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free
A cost effective resistance decade box designed to meet the standard required in both educational and industrial applications. Metal film resistors with a 0.75 watt power rating are used throughout, providing the advantages of stability and low temperature coefficient.
The 1061 features six large rotary switches, each with a clear numerical readout that makes resistance setting easy and fast. The robust design provides a durable solution for long-term operation, making it ideal for use in education.
The slimline form factor means it takes up minimum bench space, while the 1 % accuracy and wide range makes it suitable for production or select-on-test usage. The case provides complete electrostatic screening.
Safety Terminals
The 1061 connections are via safety terminals that are compatible with 4 mm shrouded plugs, standard plugs, bare wires, and spade terminals.
These terminals are specifically designed with safety features including limited opening distance and a raised flange around the metal connection surface. This ensures that the clearances are sufficient to make the exposed metal parts touch-proof.
Simple Operation and In-line Readout
Resistance is selected by dialling the value required using the rotary switches. This enables precise setting with a clear unambiguous indication.
Each decade is scaled from 0 to 11. This allows a convenient overlap of the set values.
| Brand |
Time Electronic |
|---|
Time Electronics is a UK-based brand specializing in high-precision calibration and test equipment. The company provides advanced solutions for industries such as electrical calibration, process control, and metrology laboratories.
