5075 7.5 digit Multimeter

Back

Description

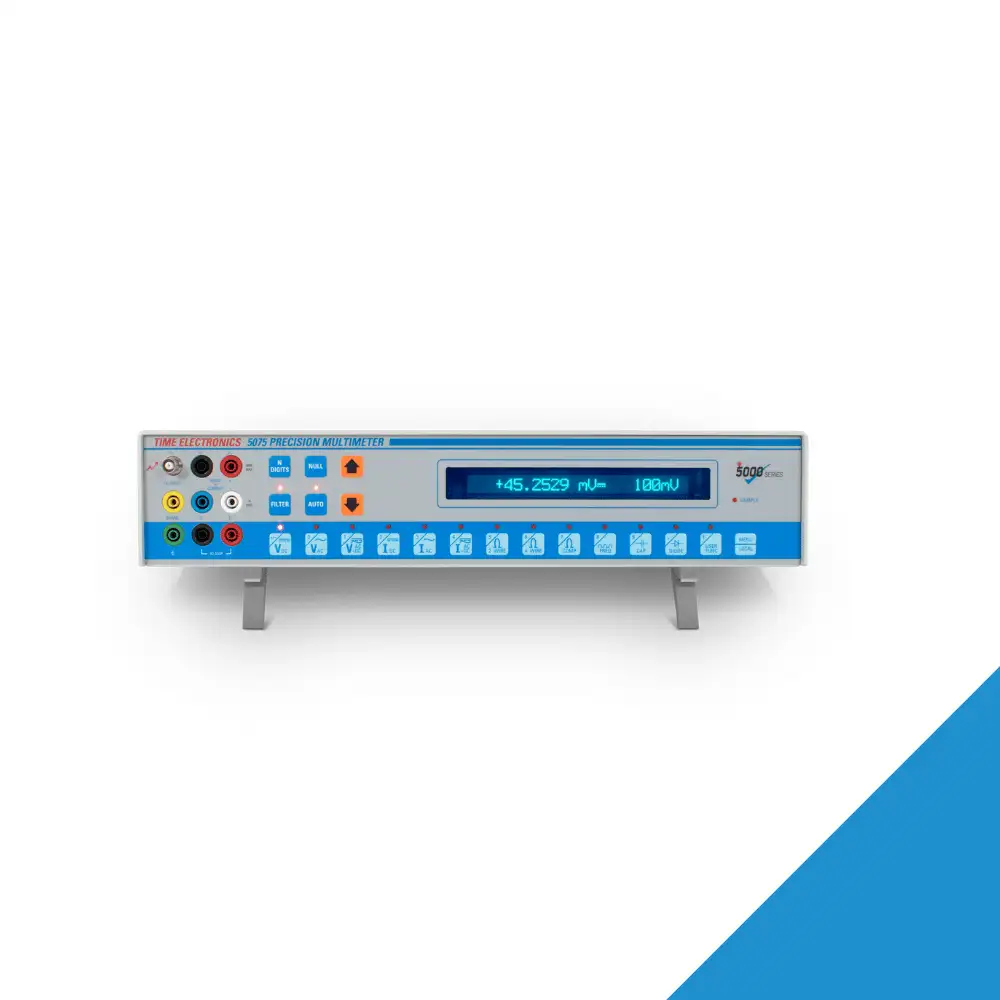

A benchtop digital multimeter that combines high performance and accuracy with simple operation. The 5075 measures from nanovolts to 10 kV, from picoamps to 30 Amps, from nano-ohms up to 1 GΩ, and from picofarads to 300 μF.

It is ideal for users requiring a cost-effective multimeter with multiple functions and exceptional resolution and accuracy up to 7.5 digits. This makes the 5075 is a versatile solution to essential laboratory calibration and verification. It covers a wide range of applications with excellent measurement capabilities, whilst maintaining reliability and long-term performance.

Options include a low thermal, 10-channel scanner that allows multiple inputs to be displayed or compared without the need for a separate switching arrangement. Software driven calibration can be performed by connecting the 5075 to a PC/laptop installed with EasyCal software. GPIB interface is standard with USB optional via an adaptor.

Simple Operation

The 5075 is easy to use with all major functions from range selection to null, requiring just one key press. The large 24 digit display shows clearly the range and reading and can even show the time to the next sample if required. Other functions can be easily selected from a scrolled menu.

Functions for diode/zener tests, max/min, peak hold and continuity checks are available and also various audible warnings can be selected. A bar graph function allows the user to program high and low pass/fail limits and switch to the bar display mode. This will give an audible and visual indication to the user of the components specification.

Filtering Modes

In addition to analogue filtering, an Auto Dynamic Filter (ADF) mode allows the 5075 to automatically select the most suitable filter. For a fast changing signal or for when the signal is first connected the reading is displayed almost immediately, but if the input remains constant, the filter time is increased to provide a more stable accurate reading. If the input were to be disconnected the filter would immediately return to the fastest.

Additional information

Weight 100 g

Specification

Technical Specification
Accuracy specified as ± ppm reading + ± Floor at default resolution (shown in brackets), relative to calibration standards.
DC Voltage
Range Resolution (at default in brackets) 90 Day ± 5 °C 1 Year ± 5 °C
0 to 3 mV / 0 to 10 mV 10 nV (10 nV) 22 + 80 nV 30 + 80 nV
0 to 30 mV / 0 to 100 mV 10 nV (100 nV) 22 + 800 nV 30 + 800 nV
0 to 300 mV
0 to 1 V		 100 nV (1 μV) 22 + 8 μV
12 + 6 μV		 30 + 8 μV
18 + 6 μV
0 to 3 V / 0 to 10 V 1 μV (10 μV) 12 + 60 μV 18 + 60 μV
0 to 30 V / 0 to 100 V 10 μV (100 μV) 20 + 600 μV 30 + 600 μV
0 to 300 V / 0 to 1 kV 100 μV (1 mV) 22 + 8 mV 30 + 8 mV
0 to 3 kV
0 to 10 kV		 1 mV (10 mV) 250 + 1 V
350 + 1.2 V		 350 + 1.2 V
500 + 1.5 V
DC Current
Range Resolution (at default in brackets) 90 Day ± 5 °C 1 Year ± 5 °C
0 to 3 μA / 0 to10 μA 10 pA (10 pA) 150 + 200 pA 200 + 250 pA
0 to 30 μA / 0 to 100 μA 100 pA (100 pA) 75 + 1 nA 100 + 1 nA
0 to 300 μA / 0 to 1 mA 100 pA (1 nA) 75 + 10 nA 100 + 10 nA
0 to 3 mA / 0 to 10 mA 1 nA (10 nA) 75 + 100 nA 100 + 100 nA
0 to 30 mA / 0 to 100 mA 10 nA (100 nA) 75 + 1 μA 100 + 1 μA
0 to 300 mA / 0 to 1 A 100 nA (1 μA) 150 + 10 μA 200 + 10 μA
0 to 3 A / 0 to 10 A 10 μA (10 μA) 500 + 200 μA 750 + 200 μA
0 to 30 A 100 μA (100 μA) 500 + 2 mA 750 + 2 mA
AC Voltage (all AC voltages ± 50 µV)
Range Resolution* 90 Day ± 5 °C 1 Year ± 5 °C
0 to 30 mV 1 μV 0.05 % + 4 μV 0.06 % + 4 μV
0 to 300 mV 10 μV 0.05 % + 40 μV 0.06 % + 40 μV
0 to 3 V 100 μV 0.05 % + 400 μV 0.06 % + 400 μV
0 to 30 V 1 mV 0.05 % + 4 mV 0.06 % + 4 mV
0 to 300 V 10 mV 0.15 % + 0.1 V 0.2 % + 0.12 V
0 to 3 kV 100 mV 0.15 % + 1 V 0.2 % + 1.2 V
AC Current (all AC current ± 50 nA)
Range Resolution* 90 Day ± 5 °C 1 Year ± 5 °C
0 to 30 μA 1 nA 0.1 % + 8 nA 0.2 % + 10 nA
0 to 300 μA 10 nA 0.1 % + 80 nA 0.2 % + 100 nA
0 to 3 mA 100 nA 0.1 % + 800 nA 0.2 % + 1 μA
0 to 30 mA 1 μA 0.1 % + 8 μA 0.2 % + 10 μA
0 to 300 mA 10 μA 0.1 % + 80 μA 0.2 % + 100 μA
0 to 3 A 100 μA 0.15 % + 1 mA 0.2 % + 1 mA
0 to 30 A 1 mA 0.15 % + 10 mA 0.2 % + 10 mA
Resistance
Range Resolution (at default in brackets) 90 Day ± 5 °C 1 Year ± 5 °C
0 to 30 mΩ / 0 to 100 mΩ 10 nΩ (100 nΩ) 70 + 2 μΩ 100 + 2.5 μΩ
0 to 300 mΩ / 0 to 1 Ω 100 nΩ (1 μΩ) 40 + 10 μΩ 60 + 15 μΩ
0 to 3 Ω / 0 to 10  Ω 1 μΩ (10 μΩ) 30 + 80 μΩ 40 + 100 μΩ
0 to 30 Ω / 0 to100 Ω 10 μΩ (100 μΩ) 20 + 600 μΩ 30 + 800 μΩ
0 to 300 Ω / 0 to 1k Ω 100 uΩ (1 mΩ) 20 + 6 mΩ 30 + 8 mΩ
0 to 3k Ω / 0 to 10 kΩ 1 mΩ (10 mΩ) 20 + 60 mΩ 30 + 80 mΩ
0 to 30 kΩ / 0 to 100 kΩ 10 mΩ (100 mΩ) 30 + 600 mΩ 45 + 800 mΩ
0 to 300 kΩ / 0 to 1 MΩ 100 mΩ (1 Ω) 60 + 8 Ω 90 + 10 Ω
0 to 3 MΩ / 0 to 10 MΩ 1 Ω (10 Ω) 100 + 100 Ω 150 + 120 Ω
0 to 30 MΩ / 0 to 100 MΩ 100 Ω (100Ω) 750 + 10 kΩ 1000 + 10 kΩ
0 to 300 MΩ / 0 to 1 GΩ 10k Ω (10kΩ) 0.5 % + 1 MΩ 0.75 % + 1 MΩ
PRT (Pt100) Temperature
Range Resolution 90 Day ± 5 °C 1 Year ± 5 °C
-200 to +600 °C 0.001 °C 0.05 °C 0.06 °C
Frequency
Range Resolution 90 Day ± 5 °C 1 Year ± 5 °C
0 to 100 kHz 1 Hz 10 + 1 12 + 1
Capacitance
Range Resolution (5 digit) 90 Day ± 5 °C 1 Year ± 5 °C
0 to 30 nF 1 pF 0.2 % + 20 pF 0.25 % + 20 pF
0 to 300 nF 10 pF 0.2 % + 200 pF 0.25 % + 200 pF
0 to 3 μF 100 pF 0.2 % + 2 nF 0.25 % + 2 nF
0 to 30 μF 1 nF 0.2 % + 20 nF 0.25 % + 20 nF
0 to 300 μF 10 nF 0.2 % + 200 nF 0.25 % + 200 nF
Accuracy stated as 90 day and 1 year specification for all ranges ± 5 °C in 6 digit mode for DC and 6 digit mode for AC. See extended specifications for full technical data.
Operational Specifications – Basic Functions
N Digits

Changes the reading resolution, which can be changed from 4 up to 7 digits, (depending on the scale selected).
Null Null facility is available on all DC ranges, Ohms and Capacitance. Null is not available on AC or frequency. When this key is pressed, the DMM will accept the measured present value as the zero value for the range selected. If auto-range is on, the unit will null each range. This is useful for cancelling an offset voltage or for zeroing the value of the test leads on resistance.
Auto Ranging Auto-range (AUTO) will select the optimum range for the measurement. This will introduce very little delay for the operator. The indicator above the keypad will show when the DMM is in auto-range mode.
Filter The filter alters the integration time of the reading. Filter times are 150 ms, 250 ms, 500 ms, 1 s, 2 s, 4 s, 8 s, 16 s, 32 s and off.
Internal Temperature Internal Temperature controlled at 35 ˚C ± 2 ˚C with an ambient temperature of 20 to 28 ˚C
Operational Specifications – Advanced Functions
Ohms Compensation Cancels the effects of any offset voltages by first measuring the input voltage with the current source on and the measuring the voltage with the current source off. The induced voltage is the difference between the two voltages, thus giving a more accurate reading. Can be used in 2 and 4 wire mode for measurements up to 100kΩ. Ohms compensation doesn’t work on ranges above 100kΩ.
Diode / Zener Diode Test The diode test function will pass a current of 1 mA through the diode under test and displays the diode forward voltage. Can be used for zener diodes to 10 V.
Self Test Reset The instrument can perform a self-test of all its digital circuits including the IEEE and RAM.
Max – Min Displays the maximum and minimum readings of the input. By using the up and down keys the Maximum, Minimum or Present value input may be displayed.
Peak Hold This function will display the peak value measured. By using the up and down keys the Peak value or Present input may be displayed.
Component Test Used for component selection. If a component to be tested must fall between a high and low value, component test can be used to make the selection process quicker. It provides a visual display which moves a pointer between the high and low values input, and also indicates whether the component is higher or lower in value than the high and low points if it doesn’t fall between them.
PRT Temp Pt100 elements can be measured and displayed in ˚C using this function.
Dual Display Display Voltage and frequency of the input or the current and frequency (if the AC module has been installed), for AC inputs.
Analogue Filter The analogue filter can be switched into the input circuit to remove any high frequency noise that may be present on the input.
Auto Dynamic Filter The Auto dynamic filter automatically selects the most appropriate filter period. The auto dynamic filter will increase or decrease the filter period (up to the maximum set using the filter key) depending upon the stability of the input signal.
Continuity / Sample Beep Continuity tests can be performed by selecting this option when in resistance mode. Any value below 30 % of the full range will produce the continuity beep. Sample beep alerts the operator to a new reading being displayed.
Internal Date / Time Date and Time can be displayed or entered using this option.
Internal Temp The internal temperature of the 5075 can be displayed and is updated approximately every 5 minutes. The internal temperature is used to perform an internal calibration when the temperature varies by 1 ˚C, thus insuring the temperature coefficient of the unit remains negligible.
Remote Control The IEEE – 488 interface allows remote control of the 5075 by a suitable computer or controller. Repetitive calibration work can be performed. The main limitations of the IEEE are :-
 1) A maximum of 15 devices on the bus.
 2) The maximum bus length should not be greater than 20 m or number of devices x 2, which ever is the shorter.
Scanner Option The scanner option for the 5075 DMM consists of an internally fitted relay board. This board provides 10 input channels. Up to two boards may be fitted giving up to 20 channels. The relays switch all 4 input terminals: V+, V-, I+, I– to one of 10/20 inputs via the 25 way ‘D’ connectors. The scanner card may be used for voltage, current, resistance, capacitance, frequency, and Pt100.
Scanner Specifications
Maximum voltage: 200 V DC / 150 V AC
Maximum current: 1 A DC / 1 A AC
Thermal EMF: Less than 2 μV per contact
Contact resistance: Less than 150 mΩ
Operating life: Up to 200 million operations
Operating time: 20 ms

General Specification

Warm up 2 hours to full accuracy
Interfaces GPIB (with cable supplied). USB adaptor optional (code 9794)
Temp Performance Operating: 0 to 40 °C. Full specification: 23 °C ± 5 °C. Storage: -20 °C to 60 °C
Operating Humidity 0 to 30 °C < 90 %.  30 to 40 °C < 70 %
Operating Altitude 0 to 3 km. Non operating: 3 km to 12 km
Line Power 110/220/240 V AC, 50/60 Hz.
Dimensions W 423 x H 89 x D 415 mm
Weight 8.5 kg
Supplied With User manual, GPIB cable, test leads, power lead
Country of Origin UK
Shipping Details Packed Dimensions: L 51 x W 51 x H 68 cm / Packed Weight: 18 kg
HS Code 9030 3200
