SPECIFICATIONS CA 1310
Microphone: ½” electret-condenser microphone
Measurement range: 30.0 to 130.0 dB
Frequency range: 20 Hz to 8 kHz
Accuracy: (in reference conditions at 94 dB, 1 kHz) ± 1 dB
Frequency weighting: A / C
Time weighting FAST: 125 ms / SLOW: 1 second
FUNCTIONS
Measurement modes: SPL (sound pressure level), Leq (equivalent continuous sound level), MaxL (maximum sound level), MinL (minimum sound level)
Leq integration time As required among the following values: 10 sec, 1 min, 5 min, 10 min, 15 min, 30 min, 1 hr, 8 hrs, 24 hrs
Recording: 64,000 points
Time display and time/date-stamping: Yes
Min/Max: Yes
DISPLAY
Digital display: 0.1 dB resolution
Display refresh rate: 500 ms
Bargraph :50 segments
display refresh rate: 50 ms
Backlighting: Yes
POWER SUPPLY
Batteries: 1.5V AA x 4
Battery life: More than 60 hours
Batteries: 1.5V AA x 4
Battery life: More than 60 hours
PHYSICAL SPECIFICATIONS
Interfaces: Micro USB for data transfer or use of mains power supply
Analogue AC / DC Jack output: AC output: 1 Vrms at full scale / DC output: 10 mV / dB
Tripod insert: Yes
Dimensions / weight: 262 x 75 x 39 mm / 390 g (with batteries)
Ingress protection: IP 40
ENVIRONMENTAL SPECIFICATIONS
Operating temperature: 0 to 40 °C
Storage temperature: -10 to +60 °C
Humidity: 10 to 90 %RH
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free

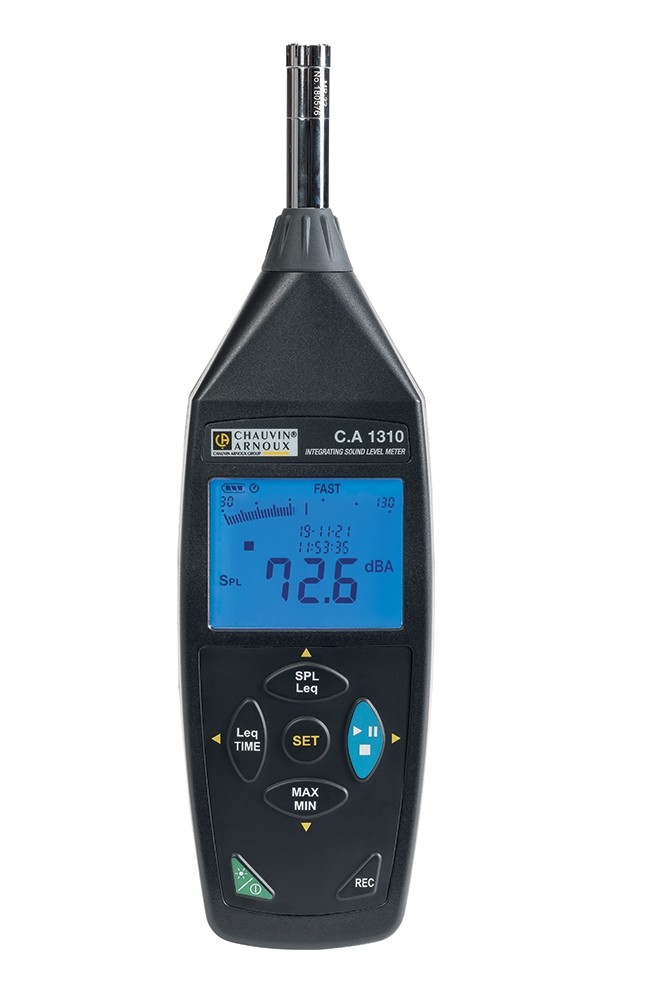

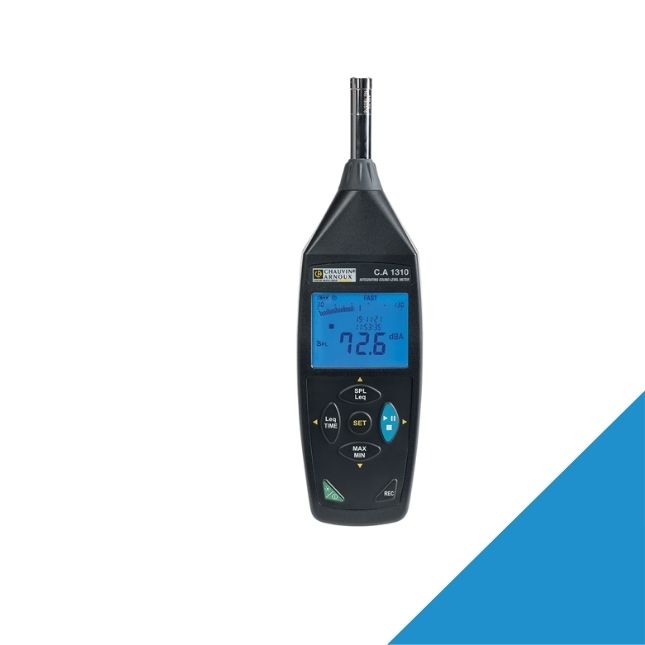

The CA 1310 Class 2 integrating sound level meter compliant with the IEC 61672-1 standard is the ideal instrument for measuring the sound environment for a large number of applications :
Measurement of the equivalent continuous sound level (Leq)
Recording of up to 64,000 measurement points
Wide backlit screen with digital display and bargraph
Microphone for remote use (extension accessory)
Testing of noise exposure at work,
Testing of HVAC system noise
Building acoustics, neighbourhood noise disputes, etc.
Noise nuisance assessments, etc.
Equipped with a wide backlit screen with digital and bargraph display and time/date-stamping, the CA 1310 is easy to read in all circumstances. Its ergonomic casing makes it simple to use: excellent grip, access to all the functions on the front panel, tripod insert, etc. The microphone can be used remotely with a 5m extension cable, available as a n option. Powered by normal or rechargeable batteries, it offers an excellent battery life of 60 hours! It can also be connected to the mains via its micro-USB port.
The CA 1310 offers 2 types of measurements: ‘instantaneous’ (SPL) or ‘equivalent continuous sound level’ (Leq). For Leq measurements, the integration time can be set to periods from 10 seconds to 24 hours. It can record up to 64,000 measurement points, with a sampling rate which can be set directly in the instrument’s SETUP menu.
The PC software, SL-Software, allows you to monitor the measurements in real time, view the data and export them for analysis or measurement report generation.
The CA 1310 is delivered in a case with a foam wind-shield for outdoor measurements.
| Brand |
Chauvin Arnoux |
|---|
