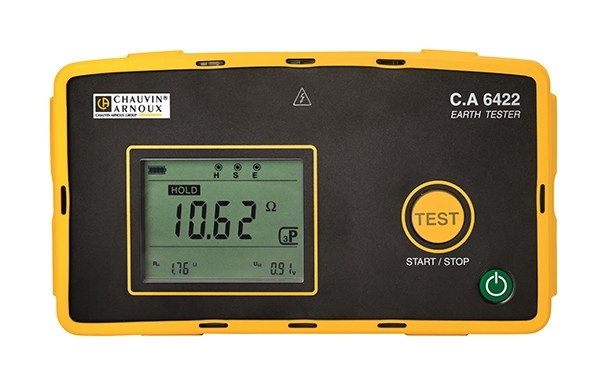

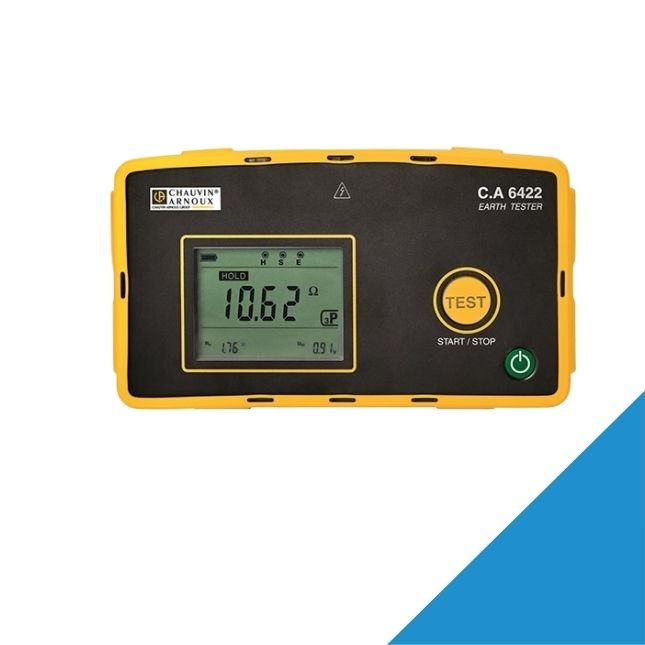

Chauvin Arnoux CA 6422 Earth and resistivity testers
Highlights
2P resistance measurement up to 50 kΩ / 3P earth up to 2 kΩ
Automatic stabilization of the measurement / Battery life > 2,000 x 3P earth measurements
Technical specifications:
– 2P resistance: 0.05 Ω to 50 kΩ
– 3P earth: 0.5 Ω to 2 kΩ
– Measurement mode: one-shot or permanent
– Power supply: 6 x LR6 or AA batteries
– Compliant with IEC 61557-1 and IEC 61557-4
Product Details
Rugged and waterproof, the CA 6422 earth tester is ideal for intensive use in the field. This tester can be used for 2P and 3P earth measurements. The connections are clearly identified with text markings and colour coding. All the measurements and functions are directly accessible on the instrument’s front panel, even when you are wearing gloves.
The CA 6422 is equipped with a backlit LCD screen which is particularly easy to read. A LED indicates when a hazardous voltage is present, while the NOISE symbol flashes to indicate when a noise voltage is present.
| Brand |
Chauvin Arnoux |
|---|
