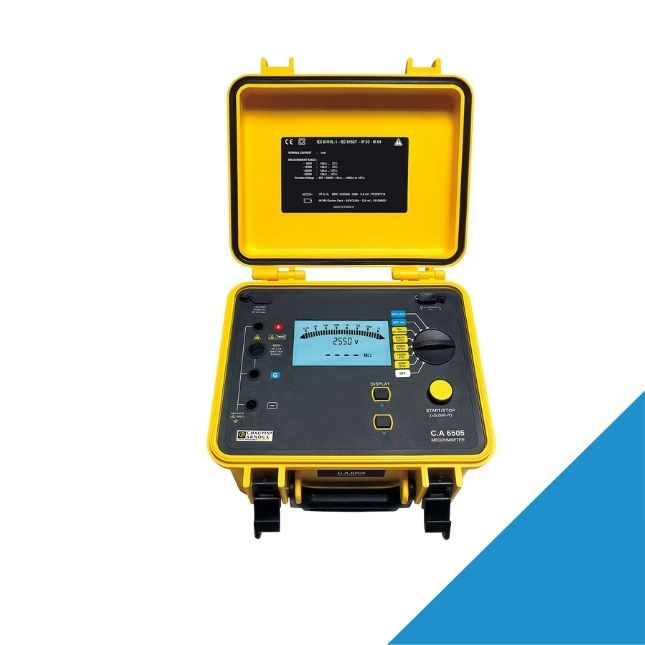

Chauvin Arnoux CA 6505 Digital insulation tester for use in the field 5 kV
Functions and specifications:
Fixed 500/1,000/2,500/5,000 V DC test voltage or programmable from 40 V to 5,100 V DC
Measurement range: 10 kΩ to 10 TΩ
Programmable test duration
Calculation of DAR & PI quality ratios
Measurement of voltage, capacitance and leakage current
LCD screen with bargraph
Power supply by NiMh rechargeable battery
Compliant with IEC 61557
IP53 protection
IEC 61010 1,000 V CAT III safety
Dimensions: 270 x 250 x 180 mm / 4.3 kg
-
Ini demo, bisa diisi apa saja
-
Ini demo, bisa diisi apa saja
-
Ini demo, bisa diisi apa saja
-
Ini demo, bisa diisi apa saja
-
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
-
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free
Product Details
Description

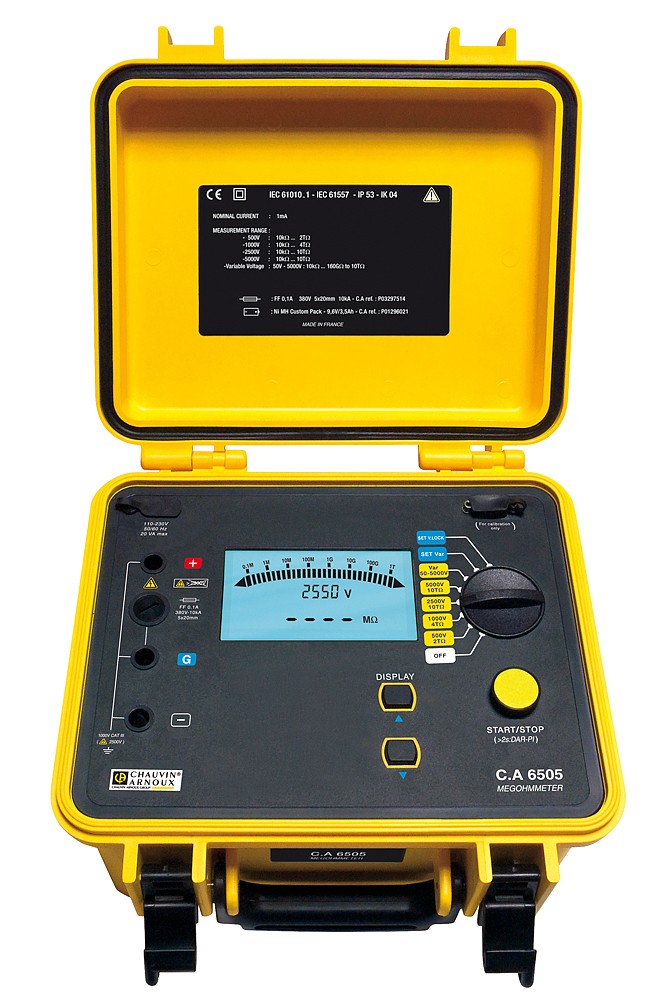

The C.A 6505 5 kV megohmmeter makes industrial equipment inspection and maintenance testing particularly simple.
In its site-proof casing suitable for even the severest conditions, the C.A 6505 offers optimum accuracy and expertise for insulation testing.
As soon as it is connected, it measures the voltage, frequency, capacitance and residual current values on the installation or equipment to be tested.
| Brand |
Chauvin Arnoux |
|---|
