Description

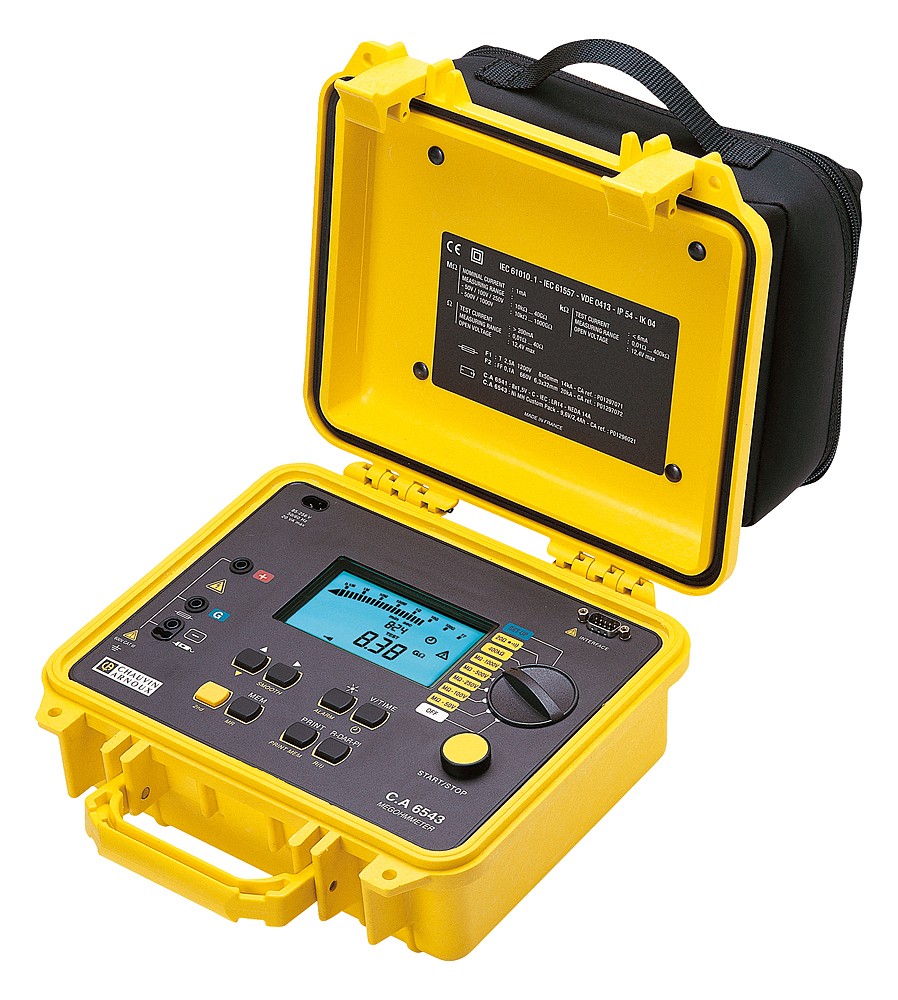

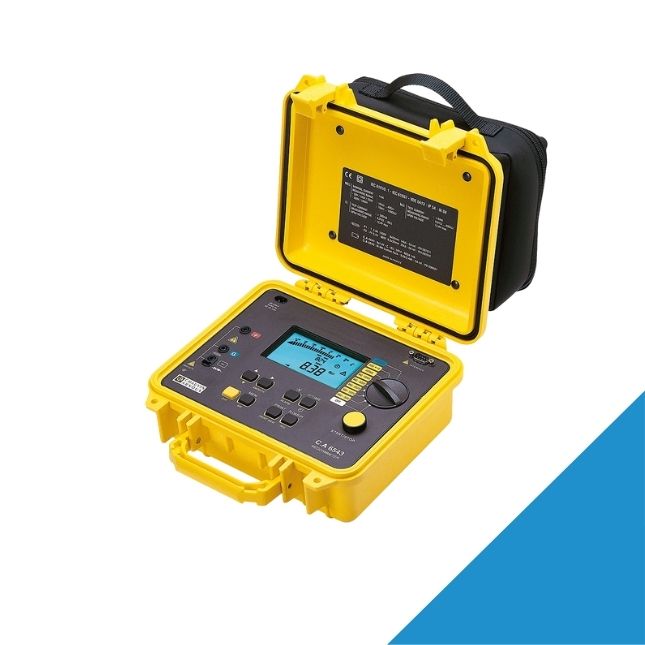

The C.A 6543 is a 50V to 1kV high-performance insulation tester. It supports extreme site conditions and is an expert tool for qualitative insulation analysis:
insulation: up to 4 TΩ (5 ranges) at 50/100/250/500 and 1,000 V DC
automatic calculation of insulation quality ratios: DAR and PI
programmable test duration and plotting of the R(t) curve
automatic indication of voltage before and after measurement: 1 to 1,000 V AC/DC
resistance: 0.01Ω to 400 kΩ
continuity: 0.01 Ω to +40 Ω (audible beep and cable compensation)
automatic capacitance measurement after each insulation measurement: 0.005 to 4.999 µF
microprocessor-controlled
storage of measurements (128 kB)
bi-driectional RS232
large LCD screen with digital display and bargraph
backlighting
SMOOTH function
possibility of locking insulation test voltages
programmable alarms
long battery life thanks to rechargeable battery with internal charger
remote control probe available as an option
electrical safety: IEC 61010 600V CAT III and IEC 61557
dimensions: 240 x 185 x 110mm; weight: 3.4kg
large number of optional accessories: remote control probe, MegohmView PC data processing software, printer
| Brand |
Chauvin Arnoux |
|---|
