Specifications:
DC voltage: 100 mV to 600 V (8 ranges)
AC voltage: 10 V to 600 V (5 ranges)
DC current: 50 µA to 10 A (6 ranges)
AC current: 3 A to 240 A (5 ranges) with MN89clamp supplied
Automatic calibration
“Voltest” LED if voltage present in ohmmeter mode
Typical accuracy: 1.5%
Impedance: 20 kΩ/V
Resistance: 10 kΩ and 1 MΩ
Audible continuity test: R < 50 Ω
dB scale (AC voltages)
Fuse status LED
Dimensions: 160 x 105 x 56 mm
Weight: 500 g
IP53
Use on any installation rated lower than or equal to CAT III 600 V as per IEC/EN 61010-1 Edition 2
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free

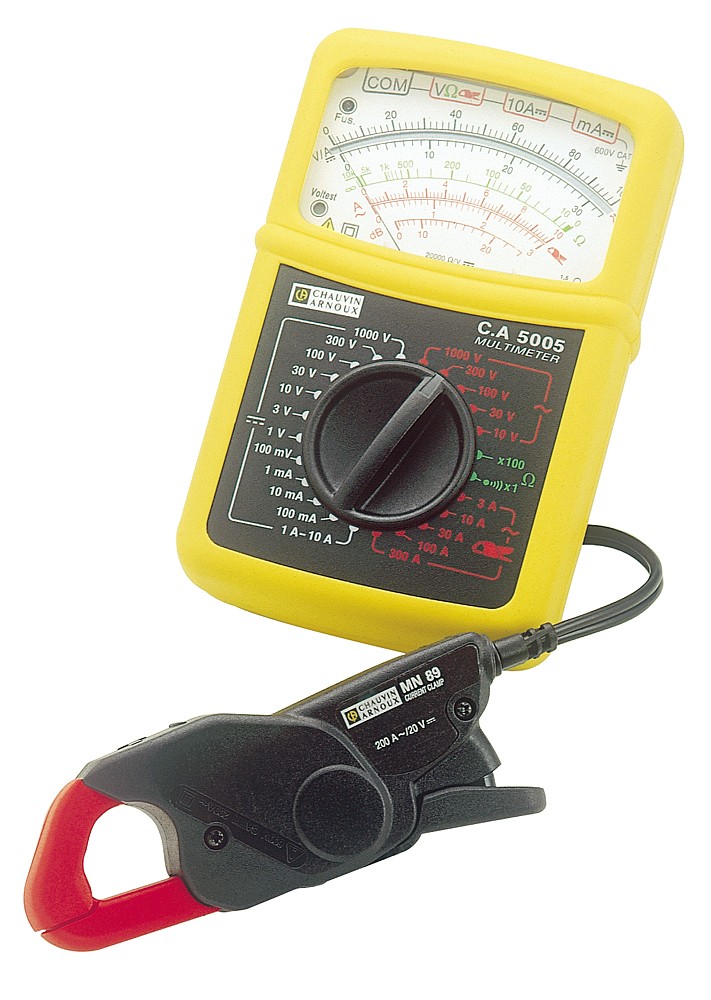

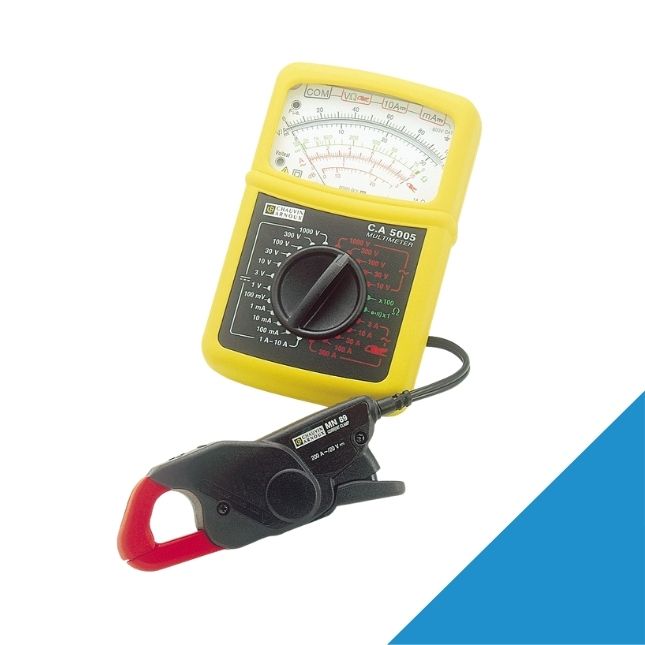

The C.A 5005 is a very competitively-priced analogue multimeter designed to meet all the needs of electricians.
It is delivered with a current clamp allowing measurement (with direct readings) of AC currents up to 200 A AC.
| Brand |
Chauvin Arnoux |
|---|
