Specifications:
• Clamping diameter: 48 mm
• Current: 1,000 A AC / 1,500 ADC
• Voltage up to 1,200 VAC / 1,700 VDC
• Resistance and audible continuity
• Power values (W, var, VA, PF) and Harmonic Distortion (THDf, THDr)
• “2-wire” phase rotation
• RELative (ΔX) and Differential measurements (ΔX/X)
• Diod test
• Automatic AC/DC detection
• TrueInrush current measurement
• Hold, Min, MAX, Peak+ / Peak-
• CAT IV 1,000 V / CAT III 1,500 V
• IP54 protection rating
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free

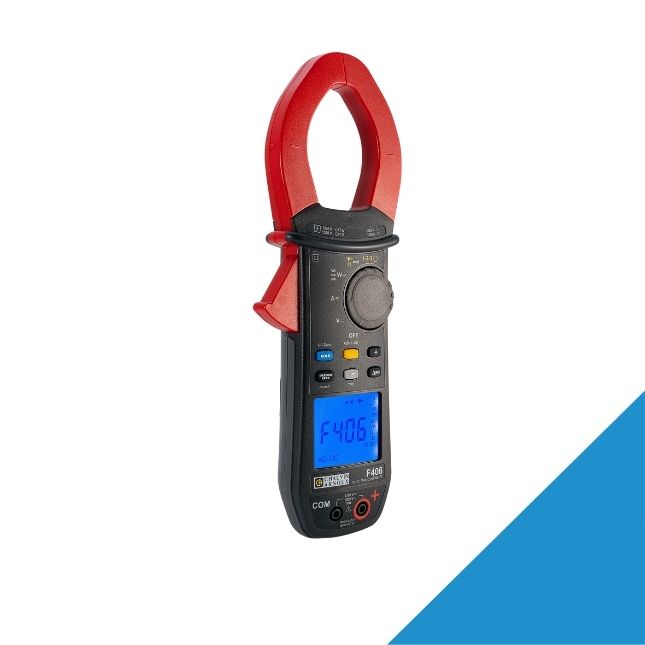

To deal with the highest level of low-voltage electrical installations, the F400 Series has a high protection rating and is ideal for maintenance, testing, monitoring and diagnostics on medium-power installations.
Equipped with a fast 12-bit TRMS digital acquisition system, F406 clamps offer particularly accurate measurements whatever the signal’s waveform.
| Brand |
Chauvin Arnoux |
|---|
