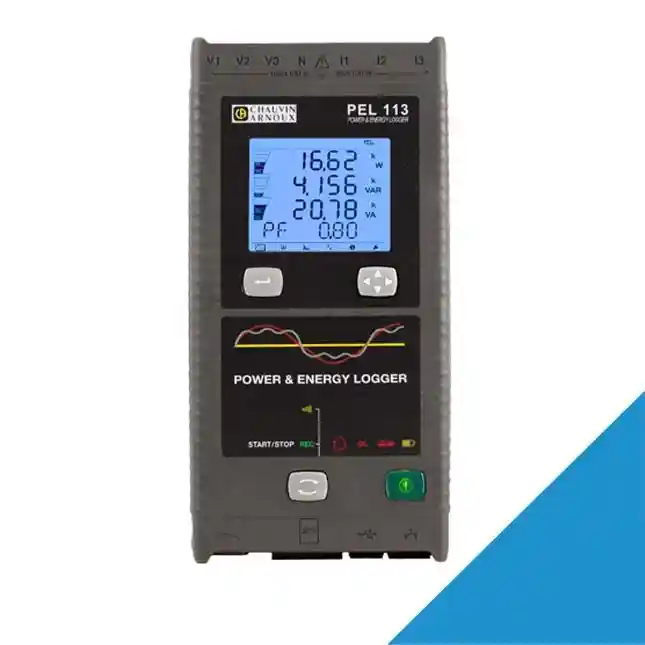

Chauvin Arnoux PEL 113 Power Logger

RMS and DC measurements
• With Quadruple digital display
• 3 input AC and/or DC voltages up to 1,000 V
• 3 input currents up to 10 kA AC or 5 kA DC (depending on the current sensor).
• active, reactive and apparent power values
• active, reactive and apparent energy values
• fundamental and balanced active power values and unbalanced active power values
• measurements and characterization on motors (via Android application)
Functions
• breakdown of energy losses
• phase information: cos φ, tan Φ, power factor (PF)
• crest factor
• THD calculation for currents and voltages
• DC, 50 Hz, 60 Hz and 400 Hz (Naval, etc.) measurements
PEL Transfer software
With the PEL Transfer software you can:
• set up your PEL
• check the connections before recording begins
• download the measurements recorded in the PEL
• view the results of the various measurements and analyses
Additional advantage: PEL Transfer converts your electricity consumption into the local currency (€, £, $, etc. – 8 tariff ranges).

Communication and networks
The PEL 110 models offer multiple communication modes:
– USB , the simplest link when not working remotely
– Ethernet RJ45 or Wifi (server): connect your PEL11x to the server to communicate from any workstation in the network equipped with the PEL Transfer software
– Wifi (Access Point):
• Create a direct link between the PEL11x and your computer
• The Access Point (AP) mode supports up to 5 clients”
