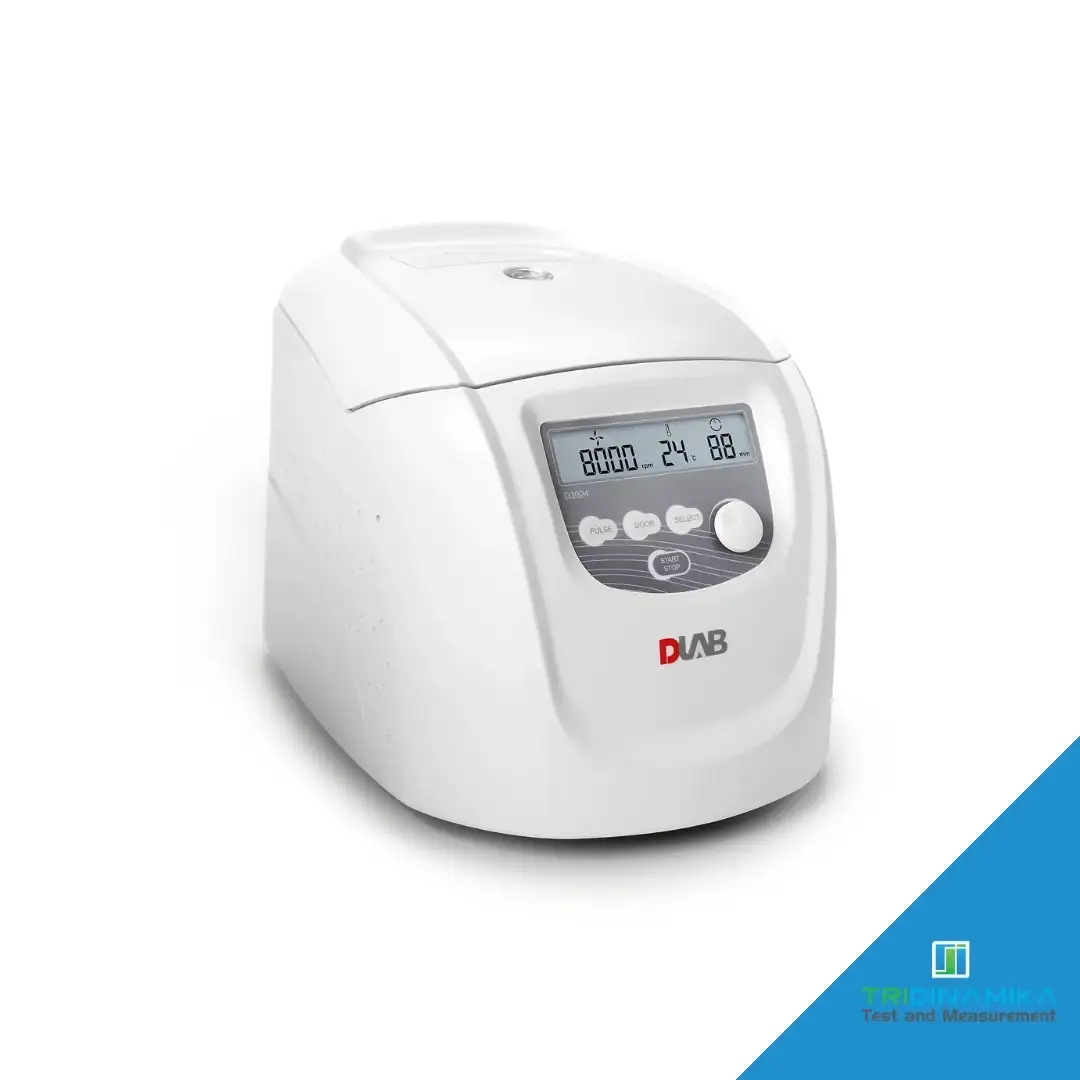

D3024 High Speed Centrifuge

The product with catalog number 9033000121 offers a speed range from 200 rpm up to 15 000 rpm adjustable in 10 rpm increments It delivers a maximum relative centrifugal force RCF of 21 380 × g which can also be adjusted in 10 × g steps The speed accuracy is maintained within ±20 rpm

This centrifuge supports multiple rotor capacities including

1 5 mL 2 mL × 24 tubes
0 2 mL 0 5 mL × 36 tubes
PCR 8 strips × 4
5 mL × 12 tubes
5 mL × 18 tubes
The run time is adjustable from 30 seconds to 99 minutes with an option for continuous operation Acceleration and braking times are both 25 seconds

An LCD display provides clear operational information The centrifuge operates using a brushless DC motor with a power consumption of 200 W It supports single phase power supply options AC 200V 400V 50Hz60Hz at 5A and AC 100V 120V 50Hz60Hz at 8A Noise levels are kept at or below 64 dB

The unit’s dimensions are 364 × 280 × 266 mm and it weighs 12 kg Safety features include dual door interlock mechanisms over speed detection and automatic internal diagnostics

Additional functions include speedRCF switching a short time run function and an audible sound alert
