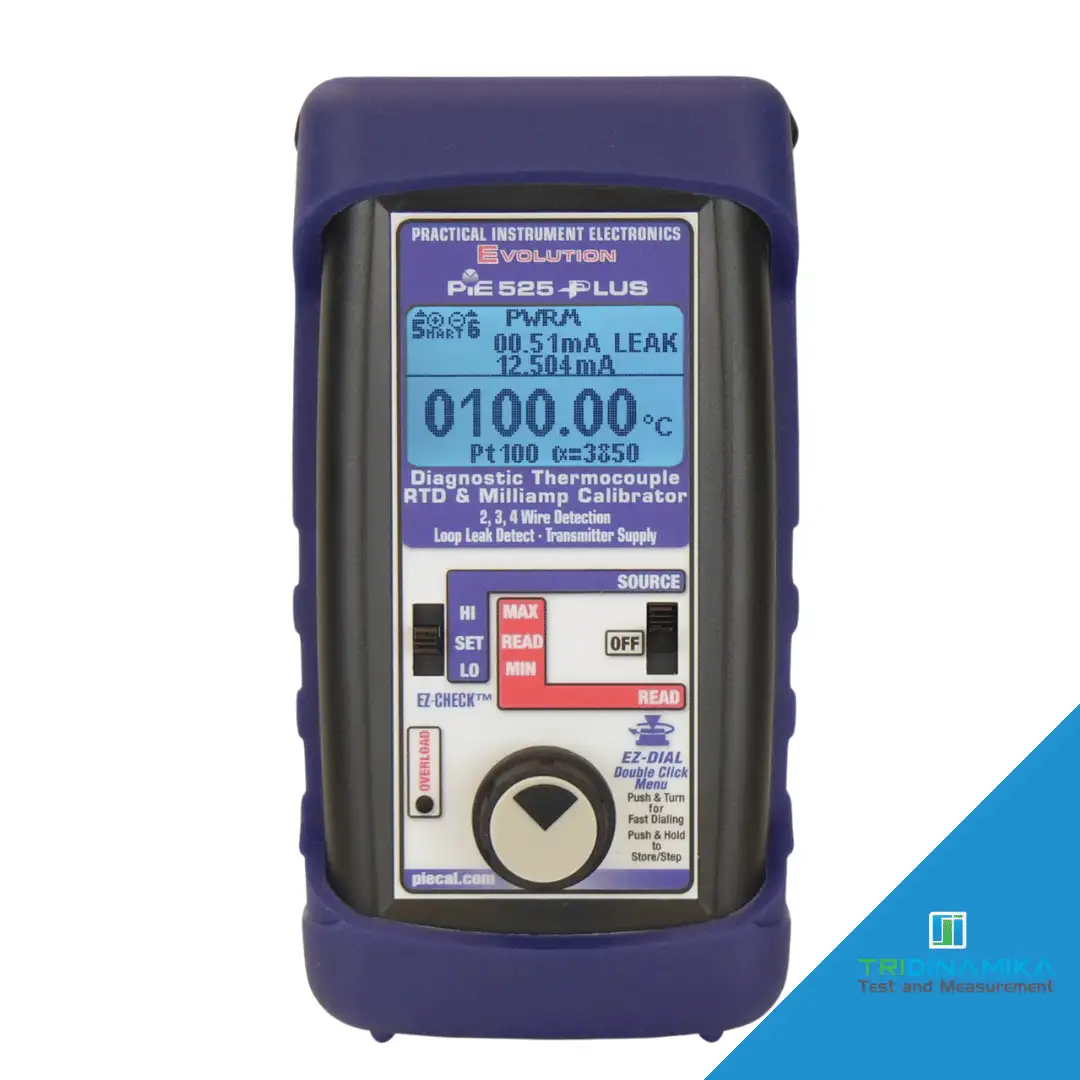

Diagnostic Temperature and mA Calibrator PIE 525Plus

Three Calibrators in One!
Calibrate all your Thermocouple RTD instruments AND your milliamp loops with the PIE 525Plus It has all the functions of a 12 type RTD calibrator 14 type thermocouple calibrator and can source 0 to 24 milliamps or simulate a two wire transmitter like a milliamp calibrator You may also perform stand alone calibrations of two wire transmitters by simultaneously supplying the RTD or thermocouple input signal while supplying the 24 volts to power up the transmitter and monitoring the milliamp output signal Powers HART™ transmitters with built in 250 ohm resistor simplifying hookups with HART communicators
Troubleshoot loop problems
Quickly diagnose ground fault and current leakage with the patented loop diagnostic technology US Patent# 7 248 058
Calibrate directly in temperature °C °F
Stop carrying around a decade box and RTD resistance tables The PIE 525Plus works with the RTDs you use including Platinum 10 50 100 200 500 1000 Ohm alpha = 3850 Platinum 100 Ohm alpha = 3902 3916 3926 Copper 10 50 Ohm and Nickel 120 Ohm Or calibrate from 0 000 to 400 000 and 0 00 to 4000 00 Ohms For RTDs the fixed or pulsed sensor current is measured by the calibrator Have thermocouples also? Choose from J K T E R S B N G C D L J DIN U T DIN or P Platinel Or calibrate from 13 000 to 80 000 mV
Measure RTD sensors
Trouble shoot sensor connections and find broken wires with patented technology Connect your two three or four wire RTDs and the PIE 525Plus automatically detects the connections and measures the RTD in degrees C or F Secondary display shows the resistance value corresponding to the RTD temperature No competitor’s calibrator is compatible with as many process instruments; also displays excitation current to confirm your RTD transmitter is working properly
Calibrate thermocouple instruments with lab accuracy and stability
The internal cold junction thermistor is accurate to ±0 05°C and is traceable to NIST The sensor is thermally bonded to an isothermal mass including brass blocks with screw terminals for connection of bare thermocouple wires along with a miniature thermocouple connector for fast connections An extremely stable voltage reference and low drift components make it more accurate than most other handheld benchtop thermocouple calibrators The PIE 525Plus is capable of meeting the requirements of an AMS 2750 Field Test Instrument when certified by an accredited laboratory
