Engybrick a system of Distributed Intelligent Power Monitoring Modules is certain to bring a revolutionary
change regarding to the on site installation and system cost control
2 Being different from the traditional all in one integrated multifunctional power monitors Engybrick is designed
as a number of individual modules namely voltage module current module communications module power
supply module and display module
3 With the design for DIN rail mounting the system can be configured flexibly The system is provided with
EngyBus a high speed data bus developed by KINGNEN and the RJ45 connection which can be used by all
the modules in common making the system installation an easy job and thus huge amount of labor time and
money is saved
4 So Engybrick is a good substitute for the traditional power monitoring meters suitable for the applications of
Power Management solution MVLV switchgear It can also be used in the side unit of a cabinet row or as the
substitute for intelligent PDU
5 Special Technology Real time data base; EngyBus the internal high speed Bus
6 Online upgrade available
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free

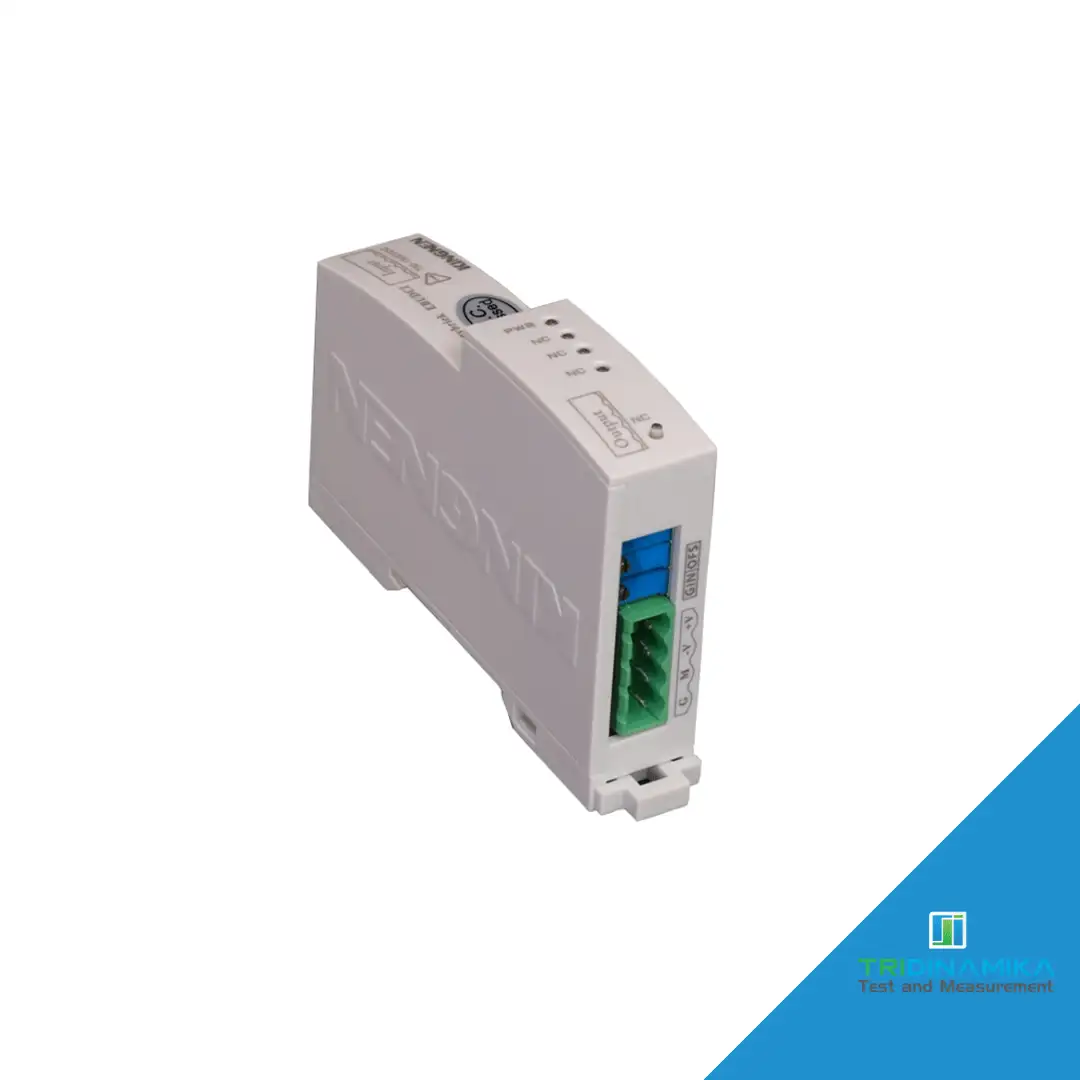

EBI10
Engybrick I module can measure the current parameters and power consumption of the closest load And these multi current measurement modules can be flexibly configured to the load to be measured or monitor independent current input For example 1 three phase load 3 single phase load
RJ45 and RJ12 interface can be easily and quickly connected to various current modules and current transformers and automatically configured current transformer connectionCommunication addressLoad typeTransformer type and ratioAutomatic classification and verification of the flow direction of the currentPrevent wiring errorsSimplified transformer configuration
Model EBI10
Power Supply Bus powered
Current Range 0~1A0~5A0~30A
Current Accuracy 0 2 class
Power Accuracy 0 5 class
Energy Accuracy 1 0 class
Dimension 64 2mm*89 3mm*18mm
Protection Grade IP40
Storage Temperature 25℃～+70℃
Operating Temperature 10℃～+70℃
Relative humidity 10%～95%RH
| Brand |
Kingsine |
|---|
