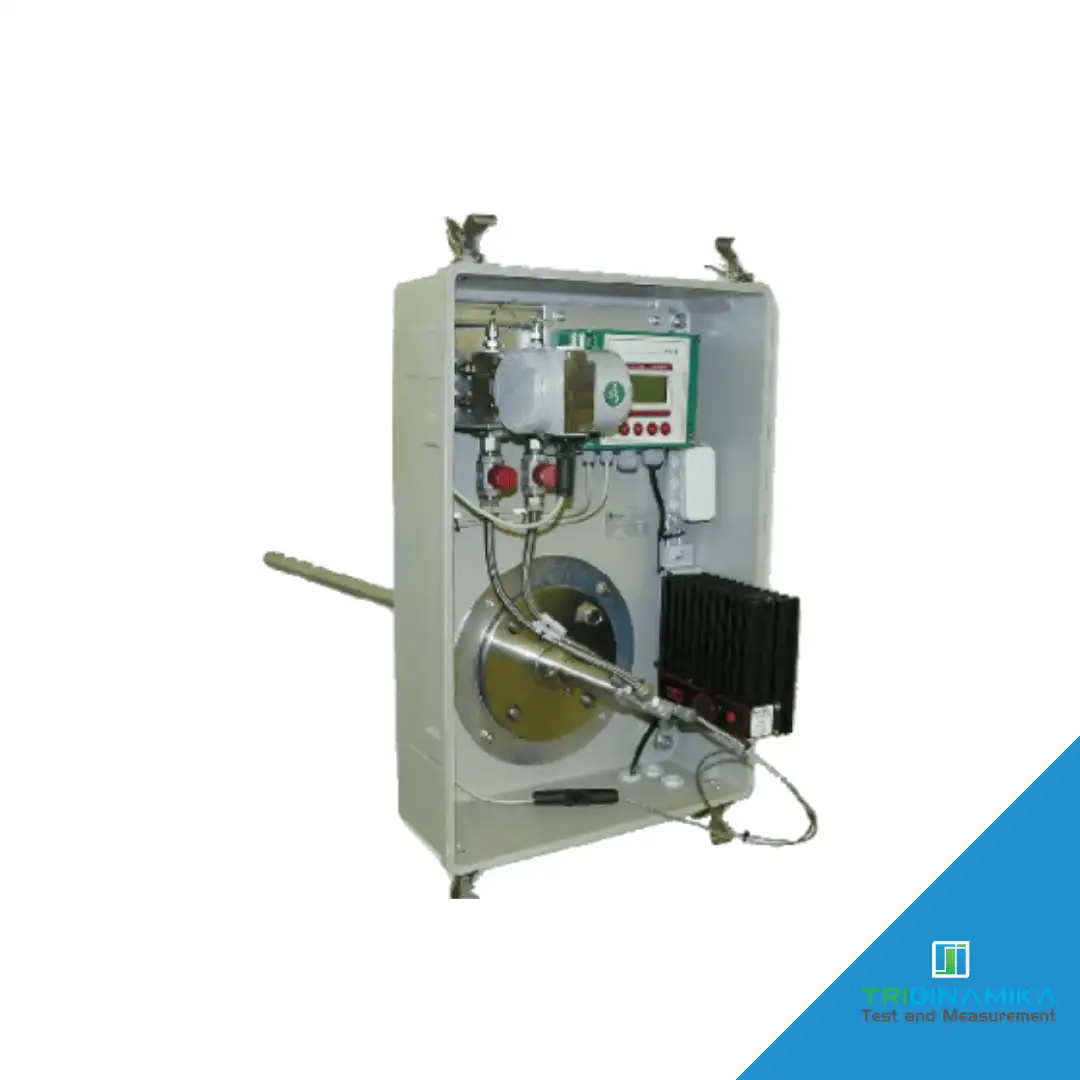

Housing compact device consisting of probe and operating unit; IP 65 protection class 1
Dimensions standard approx 440mm x 640mm x 1200mm w x h x d
Weight approx 9 5 kg
Probe dynamic pressure probe with integrated PT100; immersion depth 500 mm standard
Displayoperating graphic display 4 operating buttons
Ambient temperature 20…+50 °C
Atmospheric humidity no special sensitivity
Dew point spread min +5 K
Media temperature max 280 °C higher temperatures on request
Flow velocity from approx 3 ms
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free
The use of the measuring principle of dynamic pressure and PT100 assures a device which is easy in design and operating as well as the real time monitoring of the measuring parameters
The operating and display unit is integrated in the probe head On the high quality display all measuring values status information and parameters are displayed Furthermore a real time display as line diagram is possible
The continuous measurement of velocity and temperature of gas flows is much important at operation of a system with flowing gases e g hall outlet air exhaust etc
At emission measurements the current concentrations are determined
For the translation to absolute emitted masses the volume is necessary; this is calculated through the gas velocity
With the dynamic pressure probe the gas is measured in the exhaust flow Thereby the differential pressure is continuously measured
The signal which results from the differential pressure is a degree for the velocity of the exhaust The microcontroller integrated in the device generates a proportional signal and evaluates the volume flow
Optionally the absolute pressure at the measuring point can be measured continuously by an absolute pressure transmitter
| Brand |
IMR |
|---|
