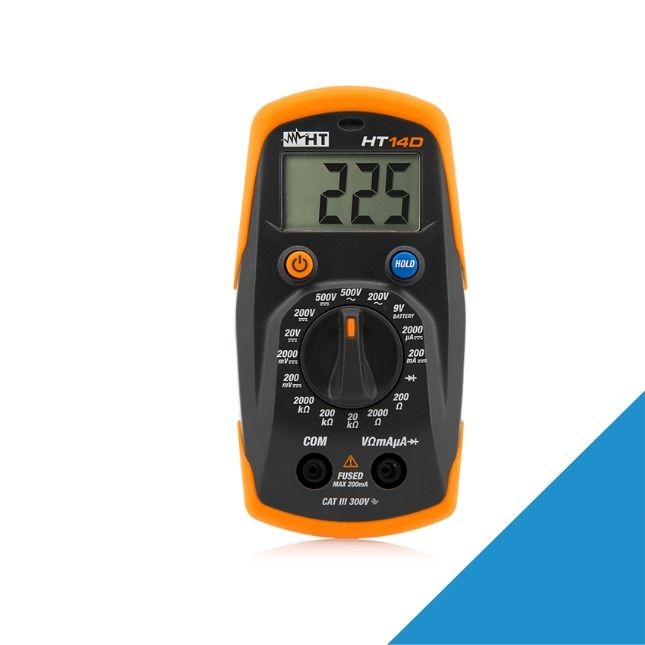

HT Italia HT14D Pocket digital multimeter

Functions
Measuring counts 2000
AC/DC voltage 500V

Resistance
Diode test
Detection of AC voltage without contact, also on insulating sheaths
Data HOLD
Protection category CATIII 300V
Power supply 1x12V type MS21 / MN21
Size (LxWxH) (mm) 105 x 50 x 25105 x 50 x 25
Weight in grams (batteries included) 100
Guidelines
CE MARK
EMC: IEC/EN61326
IEC/EN61010-1

16 People watching this product now!

Product Details

Specification

Pocket digital multimeter
Model HT14D is a compact digital multimeter capable of carrying out mainly measurements of AC/DC voltage up to 500V and DC current up to 200mA with complementary functions o Resistance, Diode test and 9V alkaline battery test.
This device has been designed in compliance with safety standard IEC/EN61010-1 with double protective insulation in CAT III 300V. HT14D is provided with a wide LCD display and each function may be selected through its relevant switch. A further function of this device is Data HOLD to freeze data on the display. Model HT603 is an extremely compact digital multimeter o modern design and very easy to use, thanks to the comfortable case which contains the integrated measuring leads. The device allows carrying out measurements of AC/ DC voltage, Resistance, Frequency, Duty Cycle, Diode test and Capacity.

Informasi Tambahan
About HT Instrument

HT Instruments is a leading Italian brand specializing in high-quality test and measurement equipment for electrical and industrial applications. The company provides innovative solutions designed for electricians, engineers, and technicians working in energy distribution, automation, and building diagnostics.
