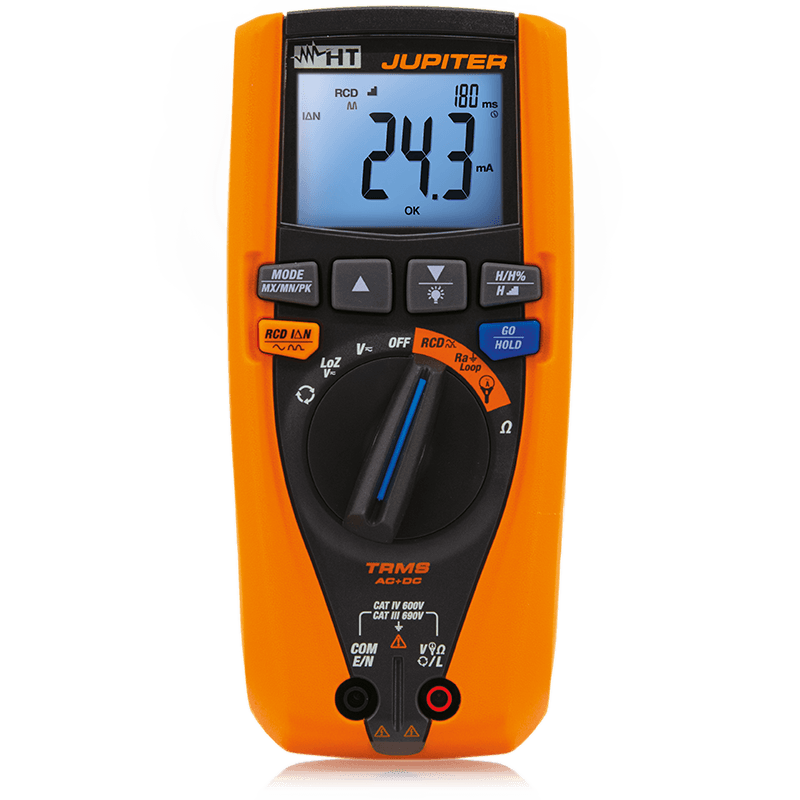

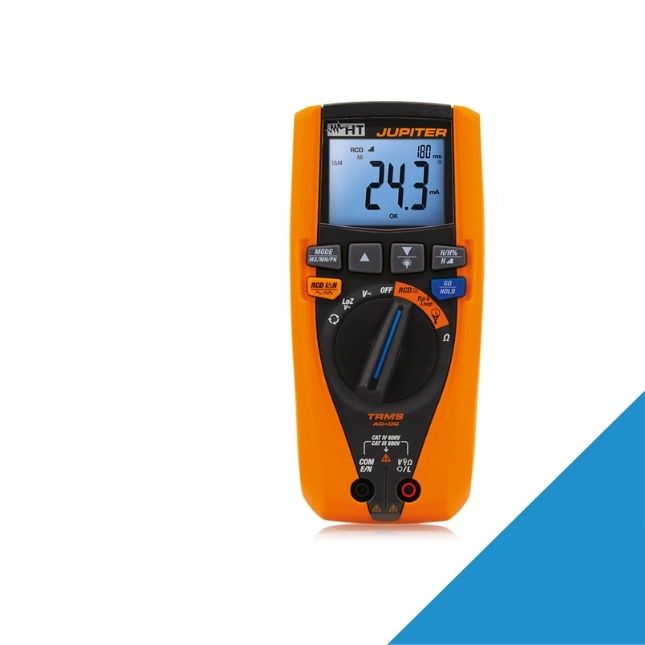

HT Italia JUPITER Multifunction Multimeter to test electrical safetyR TRMS AC DC unbreakable digital multimeter

Functions
Measuring counts 6000
AC TRMS current by means of external flexible transducer F3000U
DC, AC TRMS, AC+DC TRMS current by means of external clamp transducer
TRMS
AC/DC voltage 690V / AC+DC
LoZ Input
AC/DC current AC+DC with external clamp transducer
Resistance and continuity test with buzzer
Frequency
RCD tripping time 30mA, 100mA, 300mA A/AC
Tripping time and current of F-type RCDs

RCD trip current measurement RCD A/AC 30mA
Leakage current (with optional accessory HT96U)
Non-trip earth resistance
Voltage and current harmonics up to the 25th and THD%
Loop impedance P-N, P-P, P-PE and calculation of prospective short-circuit current
Electric motor starting current (INRUSH)
Auto x1/2, x1, x2, x5, 0°, 180°
Phase sequence
Out come OK/NOT OK According to IEC60364-6
Backlit LCD display
MAX/MIN/HOLD
Measurement category CAT IV 600V / CAT III 690V
Weight in grams (batteries included) 420
Size (LxWxH) (mm) 175x85x55
Guidelines
CEI 64-8 612.6.3
CEI 64-8 612.9
IEC/EN61010-1
IEC/EN61010-2-030
IEC/EN61010-2-033
IEC/EN61326-1
IEC/EN61557-3
IEC/EN61557-6
IEC/EN61557-7
UNE20460
