IMR 1400CP – Flue Gas Analyzer
Oxygen O2 0 – 20 9 Vol %
Carbon Monoxide CO 0 – 2000 ppm
Carbon Dioxide CO2 0 – 30 0 Vol %
Efficiency 0 – 99 9 %
Heat Losses 0 – 99 9 %
Excess Air 1 – 9 99
Flue Gas Temperature 20 – 1200°C
Ambient Temperature 20 – 120°C
Pressure + 350mbar
Soot Filter paper method
Gas sampling probe with heated probe handle 270mm hose 3 5m
Power supply 240VAC 120VAC Rechargeable battery
Dimensions 425 x 185 x 290 mm
Weight 5 8 kg
Operating conditions 0°C 40°C 10 90% RH non condensing
Other ranges are available upon request
IMR Environmental Equipment Inc reserves the right to adopt technical modifications without prior notice
Product Details

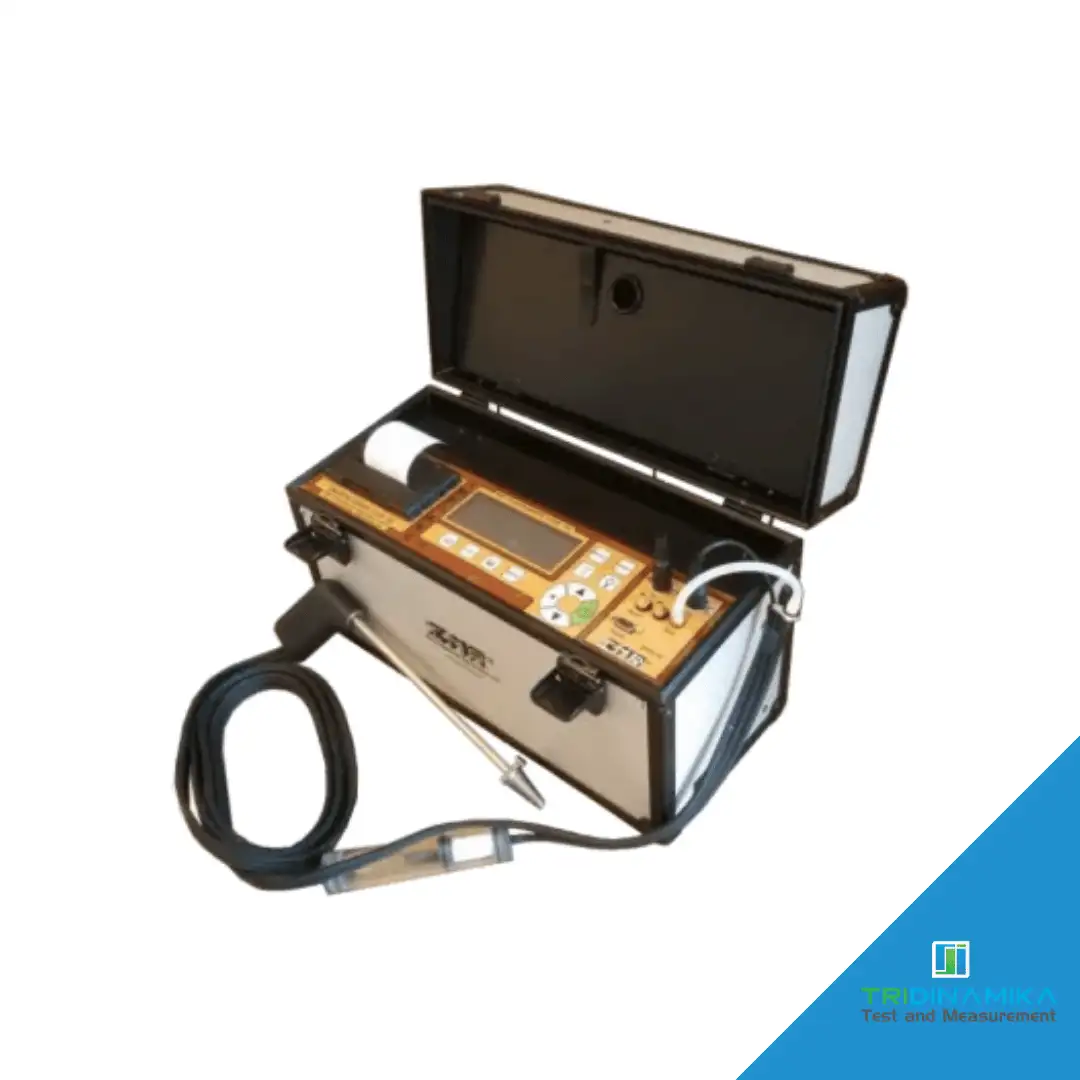

The IMR 1400CP is a portable Flue Gas Analyzer for commercial and industrial applications
The rugged combustion analyzer can be equipped with up to 4 sensors
Its basic unit has an O2 Oxygen and a CO Carbon Monoxide sensor The other two sensors are customer select able as well as the measuring ranges
The IMR 1400CP measures and calculates all the needed parameters to perform a thorough combustion test
| Brand |
IMR |
|---|
