IMR DAS: Data Acquisition System

Maximum tags2048
Real time Viewer
Real time trends
Real Time Alarms
Real time bar graphs
Real time digital value
Historical viewer
Historical Alarms
Alarms by Email
Mathematic channels
Comments for Alarms 100
Number of display pages 200
Number of tags display per page 1 to 24
Timers 100 Counters 50 Totalizers 50
Log Speed 1 2 5 10 30 60 and 120 Sec
Log trigger type By time By value change
Log Methods Instant Average Minimum Maximum
Data Types 2 byte 4 byte and 8 byte Decimal 0 to 4
Event Types H HH L LL Rate of increase Rate of decrease and Error
Number of events per Analog Channel 5
Number of Jobsevent 2
Project Auto configuration option Available
Jobs Log Alarm Log Event Log Alarm Auto ack send email Sound buzzer DO Latch ON DO Latch OFF DO Process Enable Timer Disable Timer Preset Totalizer Reset Totalizer Enable Totalizer Disable Totalizer Preset Counter Reset Counter Increase Counter Decrease Counter Log Report Reset MinMaxAvg and Log Message
Math functions SIN COS EXP SQRT LN LOG ABS POW ROUND HI LO INV TG CTG ASIN ACOS and ATG
Display languages English French German Italian Japanese Korean Polish Portuguese Russian Spanish Thai and Czeck Chinese Traditional and Chinese Simplified

20 People watching this product now!
  • Ini demo, bisa diisi apa saja
  • Ini demo, bisa diisi apa saja
  • Ini demo, bisa diisi apa saja
  • Ini demo, bisa diisi apa saja
  • Produk Tridinamika tersertifikasi jaminan SNI

Ini hanya demo

Free

  • Jasa Pengiriman kilat oleh tim Tridinamika

Ini hanya demo saja

2-3 Days

Free

Product Details

Specification

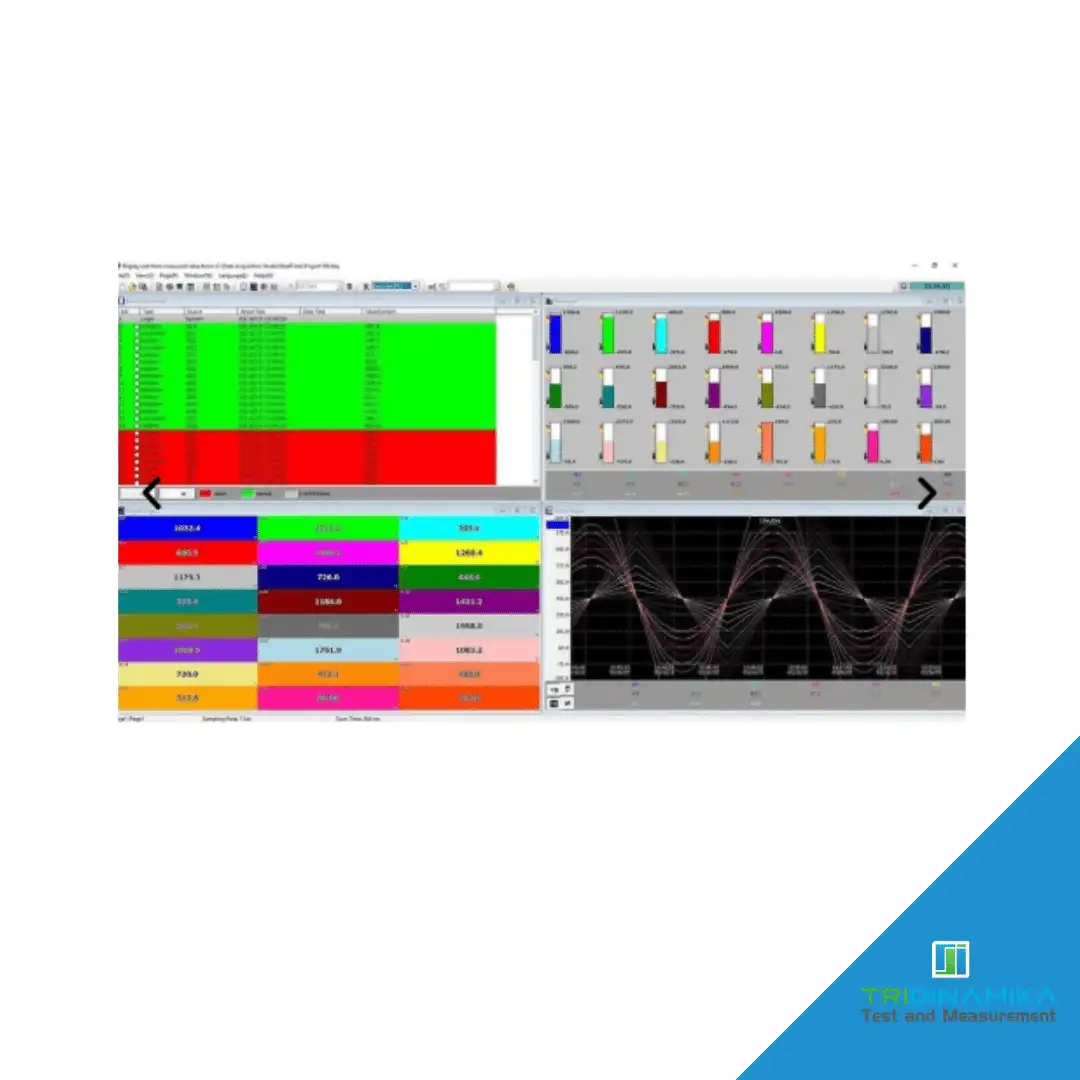

PC based data logging and Acquisition software It acquires data from Modbus RTU Modbus TCP slave devices like IO Modules Paperless Recorders Temperature Controllers third party etc and shows Real time data in PC in form of Trends Bar graphs Digital values etc and store data in PC for later archival

DAS support till 2048 tags One tag means one channel and it can be either Analog input or Analog output or digital input or digital output or Math channel

Historical viewer features

Display Historical trend
Display Historical alarmsEvents
Display Reports Daily Weekly Monthly
Display Historical values in tabular column
Mark Remarks on data Comments
Search data by Time Timer Period EventAlarm tag wise and Remark
View trends both Horizontally and Vertically
Zoom out Zoon In
Display view options available at 1 secdot 2 secdot 5 secdot 10 secdot 20 secdot 30 secdot 1 mindot 2 mindot 5 mindot 10 mindot 30 mindot 10 minpage 30 minpage 1 hrpage 2 hrpage 4 hrpage 8 hrspage daypage weekpage and Monthpage
Display white back groundblack background
Print trend view EventAlarm list Reports Tag Values
Export data and alarmsevents to CSV files Specify time or time period or all

Additional information
Brand

IMR
