Target gas O2 toxic gas combustible gas
Detecting method Natural diffusion
Response Time Semi conductor Catalytic Thermal Conductivity t90 < 30s Oxygen Carbon Monoxide Hydrogen Sulfide t90 < 30s Other Sensors t90 < 120s
Working Conditions Combustible Gas 40OC ~ 70OC Toxic Gas 20OC ~ 50OC Working humidity ≤ 95%RH non condensating
Power Source Lithium battery DC3 7V 6600mAh
Charging time 4 ~ 6hours
Continuous working time ≥ 30 hours for combustible gas and toxic gas ≥ 300 hours for toxic gas under temperature of 20OC
USB connectivity for data transfer
Explosion proof grade EXIA II CT4
Ingress protection IP66
Dimensions 147mm x 76mm x 37mm
Weight about 350g
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free

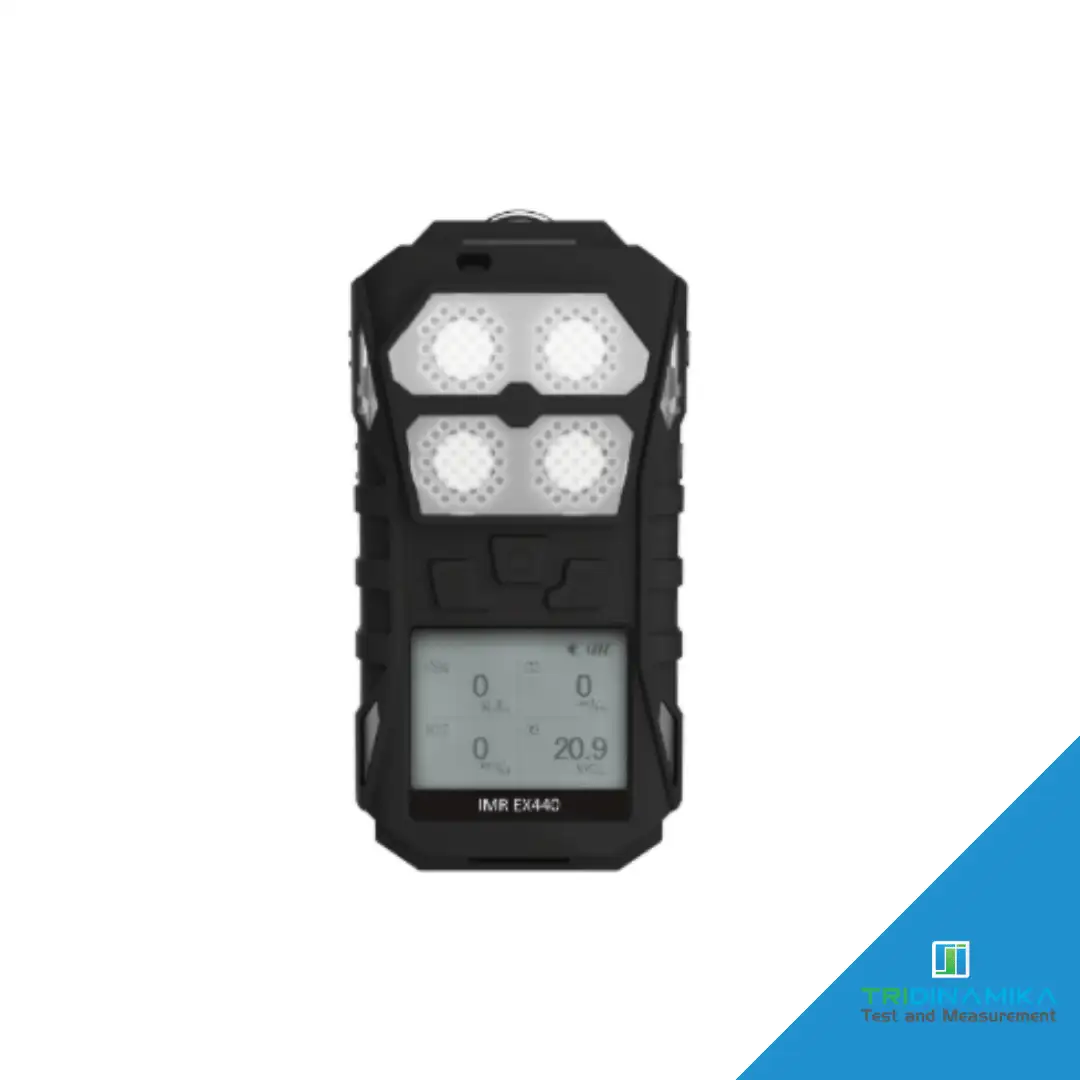

The IMR EX440 portable multi gas detector is an intrinsically safe instrument that can continuously detect the concentration of combustible gases and toxic gases It is designed for use in explosion proof toxic gas leak rescue underground pipeline or mines and other hazardous locations It effectively ensures the safety of staff life without being invasive and prevents loss of production equipment
The detector uses natural diffusion as the method to detect gas It is constructed with high strength engineering plastics composites with an antiskid rubber housing The detector is comfortable to hold is water proof and dust proof
Intrinsically safe
Smart interchangeable module
Catalytic electrochemical infrared PID sensor selectable
Built in pump optional
Storage for 100 000 detection records
Calibration point adjustable
Two alarm levels for each channel
STEL TWA alarm for toxic gases
Visual audible and vibration alarms
Data uploading
Password management
Self test when power on
Modular design for ease of maintenance
