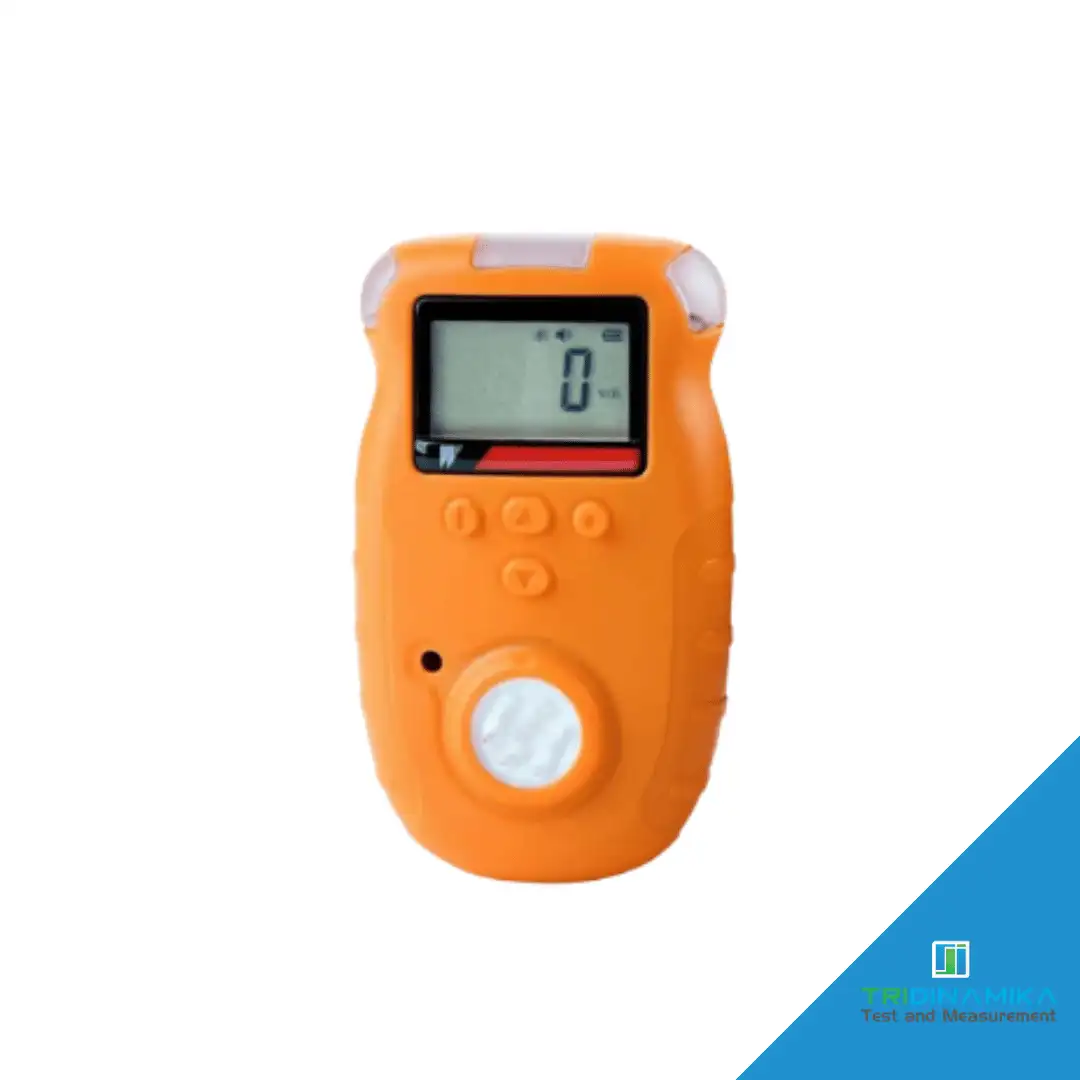

IMR IX176 Combustible and Toxic gas detection

Gas sampling method natural diffusion
Gas sensor type catalytic for combustible gas and electrochemical for H2S CO O2 NH3 CO2 SO2
Accuracy ±5%FS
Response time T90 < 30s Indication LCD displays real time and system status LED audio and vibration alert for gas leakage fault and low voltage Working environment 20 to 50°C 95% RH (no dew) Power source 3 6V DC Rechargeable Li on battery 1 800Ah Charging time 4~6 hours Working time ≥10h continuously without alarming Gas sensor life 2 years Explosion proof grade Exia II CT3 Protection grade IP65 Weight 200g with battery Dimensions 104 x 60 8 x 30 5mm Communication RS232USB Internal Memory – 2 000 records

15 People watching this product now!
  • Ini demo, bisa diisi apa saja
  • Ini demo, bisa diisi apa saja
  • Ini demo, bisa diisi apa saja
  • Ini demo, bisa diisi apa saja
  • Produk Tridinamika tersertifikasi jaminan SNI

Ini hanya demo

Free

  • Jasa Pengiriman kilat oleh tim Tridinamika

Ini hanya demo saja

2-3 Days

Free

Product Details

Specification

The IMR IX176 portable single gas detector can make continuous detection to combustible and toxic gases It is suitable for combustible and toxic gas leakage detection in underground pipe or mines It keeps the workers safe and helps prevent the facilities from being destroyed

It has a high quality sensor and uses natural diffusion as the method for detection It has high sensitivity and reproducibility It also uses an embedded MCU controller and is easy to operate The shell has special high strength anti slip rubber it is water proof explosion proof and dust proof It has alarms that are visual audible and with vibration

Memory for up to 2 000 readings
Data transfer software and USB cable included
Backlit LED display

Additional information
Brand

IMR
