Gas sampling method natural diffusion
Gas sensor type catalytic for combustible gas and electrochemical for H2S CO O2 NH3 CO2 SO2
Accuracy ±5% FS
Response time T90 < 30s
Alarm sound ≥85dB @ 1m
Indication LCD displays real time and system status
LED audio and vibration alert for gas leakage fault and low voltage
Working environment 20°C to 50°C for toxic gas 40°C to 70°C for combustible gas
Working humidity <95% RH （non condensating）
Power source DC3 7V 1 800mAh Lithium battery
Charging time 4h~6h
Working time ≥8h continuously without alarming
Gas sensor life 2 years
Explosion proof grade Exia II CT3
Protection grade IP66
Weight about 220g
Dimensions 120 x 68 x 30mm
Communication RS 232USB
Internal Memory – 100 000 records
Data transfer software included
USB cable included
Charger 110 230V 5060Hz
Clip for belt included
Calibration cover included
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free

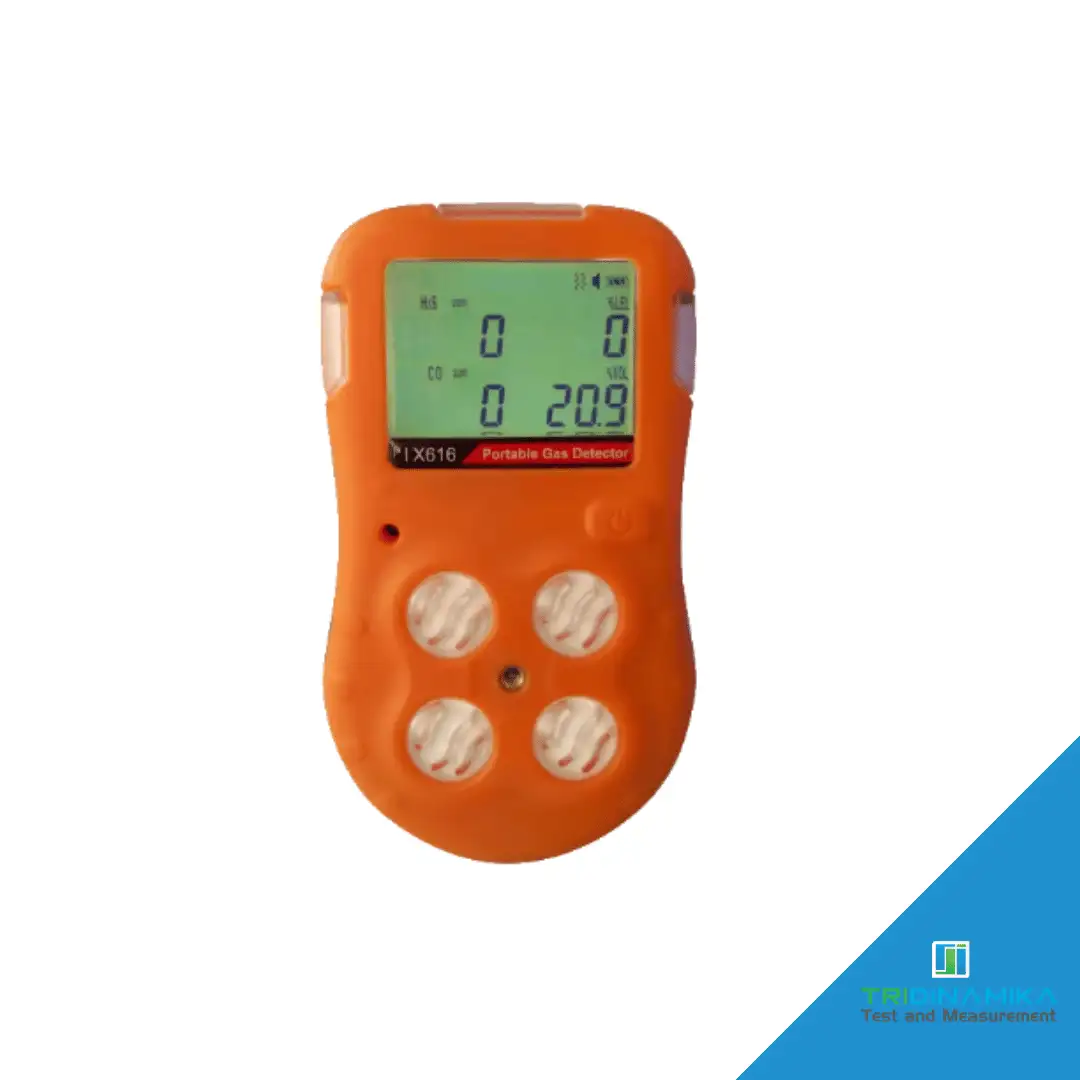

The IMR IX616 portable four gas detector can make continuous detection to combustible and toxic gases It is suitable for combustible and toxic gas leakage detection in underground pipe or mines It keeps the workers safe and helps prevent the facilities from being destroyed
It has a high quality sensor and uses natural diffusion as the method for detection It has high sensitivity and reproducibility It also uses an embedded MCU controller and is easy to operate The shell has special high strength anti slip rubber it is water proof explosion proof and dust proof It has alarms that are visual audible and with vibration
Memory for up to 100 000 readings
Data transfer software and USB cable included
Backlit LED display
| Brand |
IMR |
|---|
