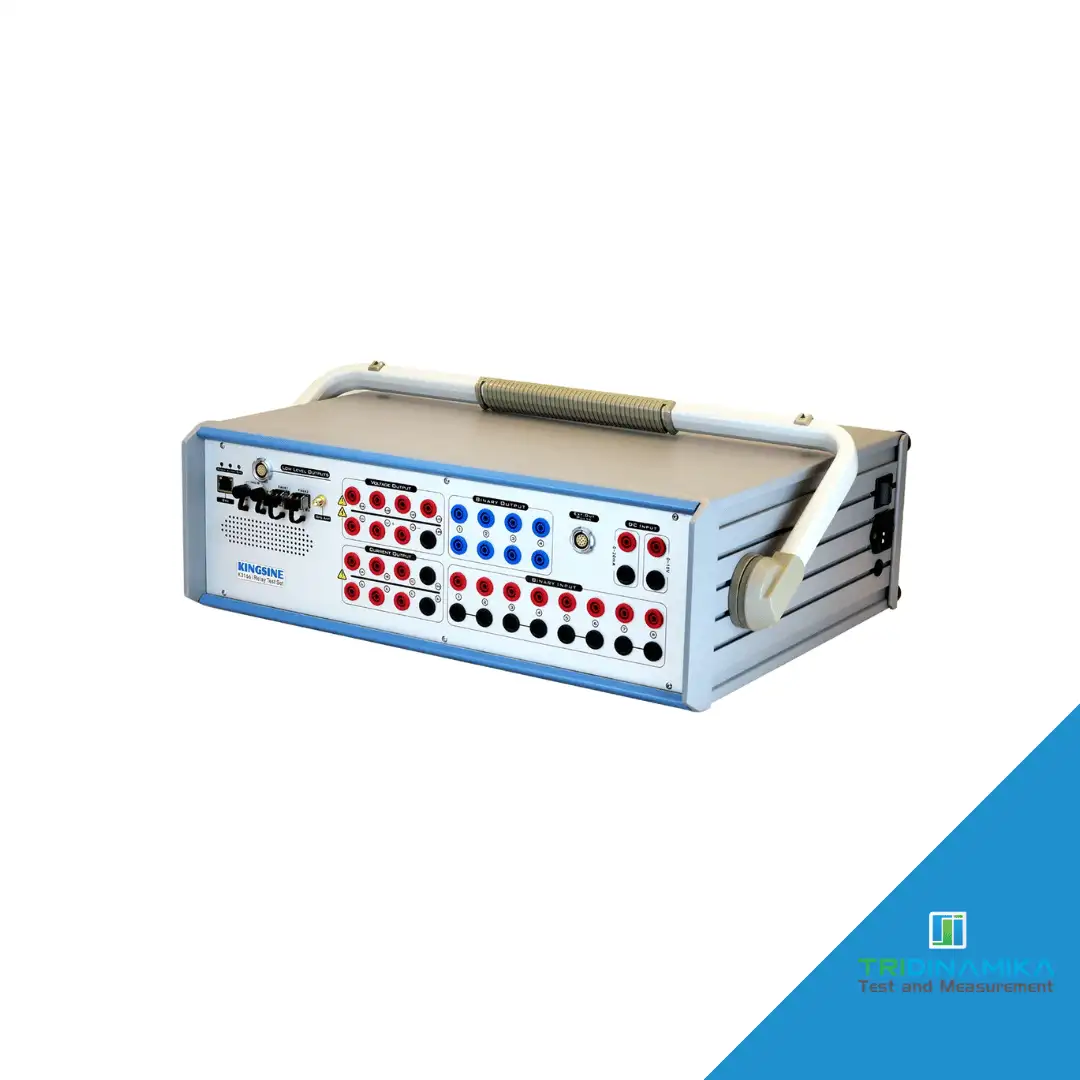

K3130i Intelligent Protection Relay Test Set

Voltage Outputs
Output Range Power 4×310 V ac L N 124 VA max each
3×350 V dc L N 140 W max each
Accuracy <0 02%Rd+0 005Rg Typ <0 05%Rd+0 01Rg Guar ±10mV @ <5V dc ±0 5% @ ≥5V dc Voltage Range Range I 30V Range II 310V Automatic Range DC Offset <20mV Typ <100mV Guar Resolution 1mV Distortion <0 015%Typ <0 05% Guar Current Outputs Output Range Power 3×35A ac L N 480 VA max each 1×100A ac 6L N 1200 VA max 3×20A dc L N 300W max each Accuracy <0 03%Rd+0 02Rg Typ <0 1%Rd+0 05Rg Guar ±5mA @ <1A dc ±0 5% @ ≥1A dc Current Range Range I 3A Range II 35A Automatic Range DC Offset <3mA Typ <10mA Guar Resolution 1mA Distortion <0 025%Typ <0 07% Guar Low Level Output Quantity 13 Channels 16 pin combination female socket Voltage Outputs Range AC 0~8V DC 0~10V Current Outputs Range Nominal 2mA 10mA max transient Output Power ≥0 5VA Accuracy 0 01~0 8 Vrms <0 05% Typ <0 1% Guar 0 8~8 Vrms <0 02% Typ <0 05% Guar Resolution 0 25mV Distortion THD% <0 05% Typ <0 1% Guar Frequency Range 0~3000KHz DC Offset <0 15mV Typ <1 5mV Guar Frequency Phase Angle Frequency Range DC~1KHz 3KHz transient Frequency Accuracy ±0 5ppm Frequency Resolution 0 001 Hz Phase Range 360°~360° Phase Accuracy <0 02° Typ <0 1° Guar 5060Hz Phase Resolution 0 001° Aux DC Voltage Source Battery simulator Range 0~350V @ 140W max Accuracy 0 5%Rg Guar Binary Input Quantity 8pairs Type wetdry measurement Threshold 10~600Vdc or potential free Programmable Time resolution 10us Sampling Rate 10KHz Debounce time 0~25ms Software Controlled Time range Infinite Time errors ±1ms @ ≤1s ±0 1% @ >1s
Galvanic isolation 4 isolated with each 2 pairs
Binary Output Relay Type
Quantity 4pairs
Type Potential free relay contacts software controlled
Break Capacity AC Vmax 400Vac Imax8A Pmax2500VA
Break Capacity DC Vmax 300Vdc Imax5A Pmax150W
Binary Output Semiconductor Type
Quantity 4pairs
Type Open collector Combination type female
Break Capacity DC 5~15Vdc 5mA 10mA max
AC not permit
Response time 100us
Synchronization
Synchronization Mode　 GPS SMA type antenna connector
IRIG B Optical fiber FT3 type
Power Supply Environment
Nominal Input Voltage 100~240Vac
Permissible Input Voltage 85~260Vac 125~350VDC
Nominal Frequency 5060Hz
Permissible Frequency 45Hz~65Hz
Power Consumption 1500 VA max
Connection Type Standard AC socket 60320
Operating Temperature 10℃~55℃
Storage Temperature 20℃~70℃
Humidity <95%RH non condensing Others PC Connection RJ45 Ethernet 10100M Grounding Terminal 4mm banana socket Weight 17 5 Kg Dimensions W x D x H
