Main Unit Specifications
Measurement Range
Acceleration ;0.02 to 200 m/s2 RMS
Velocity ;0.02 to 200mm/s RMS
Displacement ;2 to 2000 m EQp-p
Frequency Range
Acceleration ;3Hz to 10kHz
Velocity ;10Hz to 1kHz (Compliant with JIS B0907-1989)
Displacement ;10 to 400Hz
Parameters ;RMS, Peak, EQ Peak, EQ Peak-to-Peak
General Specifications
Interface ;RS232C
Output AC Output;1Vrms (Full Scale)
Headphone Output;Portable Headphones w/Volume function
Operating Environment;-10 to 50°C, 30 to 90%RH with no condensation
Power Supply ;2 x AAA batteries or AC adapter
Dimensions ;5.7″(H)x1.9″(W)x0.9″(D) Case is 12″x18″x3″ (8lbs)
Weight; 3.0lbs (136 g)
Warranty; 1 year
What’s Included; Meter, Operation manual, Accelerometer with cable and magnet, Contact pin, 2 x AAA batteries, Carrying case, Calibration certificate
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free

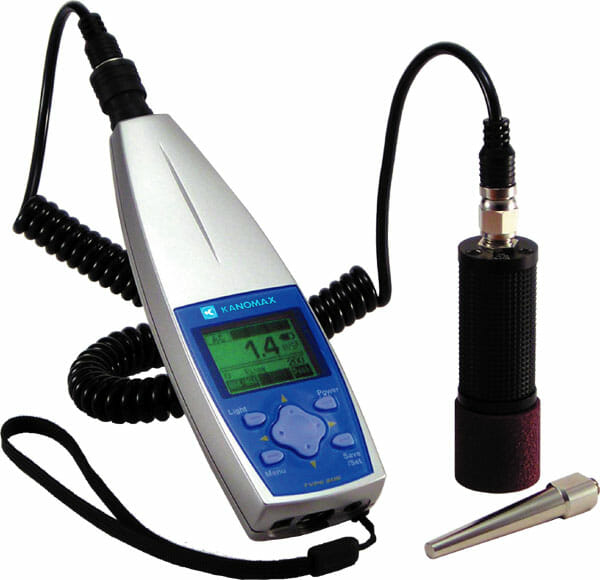

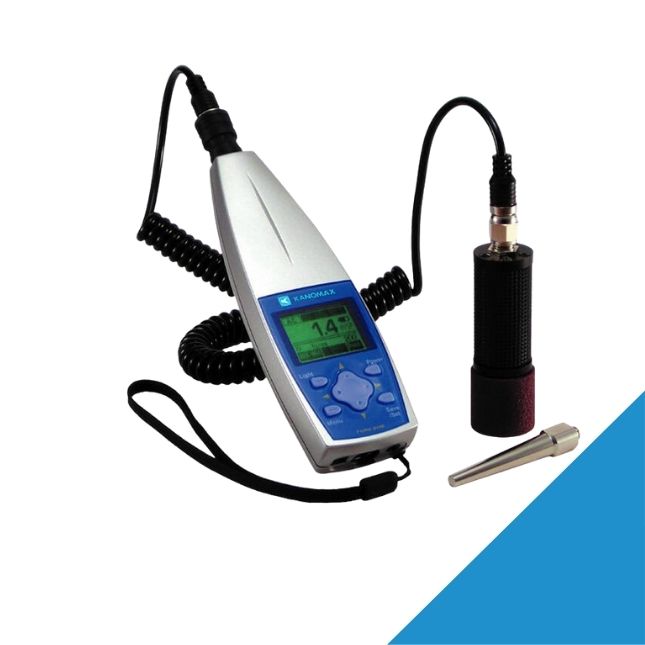

This instrument is designed to be compact, lightweight and easy to use. It diagnoses vibrations associated with your industrial machinery before they become a problem. this product’s has Features & Benefits :
*Compact size maximizes technician mobility
*Magnetic accelerometer increases measuring accuracy and ease-of-use
*Built-in RS232 interface allows data output to a PC or direct output to a printer
*Includes meter, accelerometer with cable and magnet, contact pin, 2 x AAA batteries, carrying case, and NIST TRACEABLE *Calibration Certificate
| Brand |
Kanomax |
|---|
