Weighting; A, C and Z (FLAT)
Ranges
A: 28 to 130 dB (0 to 80 BD if 0dB function is active for 4431-1G)
C: 36 to 130 dB
Z (FLAT): 40 to 130 dB
C peak: 55 to 141 dB
Z (FLAT) peak: 60 to 141 dB
Time Weighting; Fast, Slow, Impulse
Parameters;
Sound pressure level(Lp)
A-weighted sound pressure level(LA)
C-weighted sound pressure level(LC)
Equivalent continuous A-weighted sound pressure level(LAeq)
Sound Exposure level(LAE)
Maximum sound pressure level(LAmax)
Minimum sound pressure level(LAmin)
Percentile sound pressure level(5 freely selectable values、LAN)
Peak Sound Pressure level(Lpeak)
C- weighted Peak Sound Pressure level(LCpeak)
Power average of maximum sound pressure level in a given interval(LAtm5)
Impulse Sound pressure level(LAI)
Impulse equivalent continuous sound pressure level(LAIeq)
Standards;
ANSI S1.4 1983: Type 2
IEC 61672-1: Class 2
General Specifications
Interface;USB, Printer
Output ;
1 Vrms (AC output)
2.5 V (DC output)
Power Supply; 4 AA Batteries or AC adapter
Operating Environment; 14 to 122°F (-10 to 50°C), 30 to 90%RH with no condensation
Dimensions; W 3.4″ x H 12.9″ x D 1.9″
Weight; 1 lb (453g)
Warranty;1 year
Standard Accessories; Operation manual, SD card for data storage, Windshield,Carrying case, AA batteries, Hand strap, Calibration certificate
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free

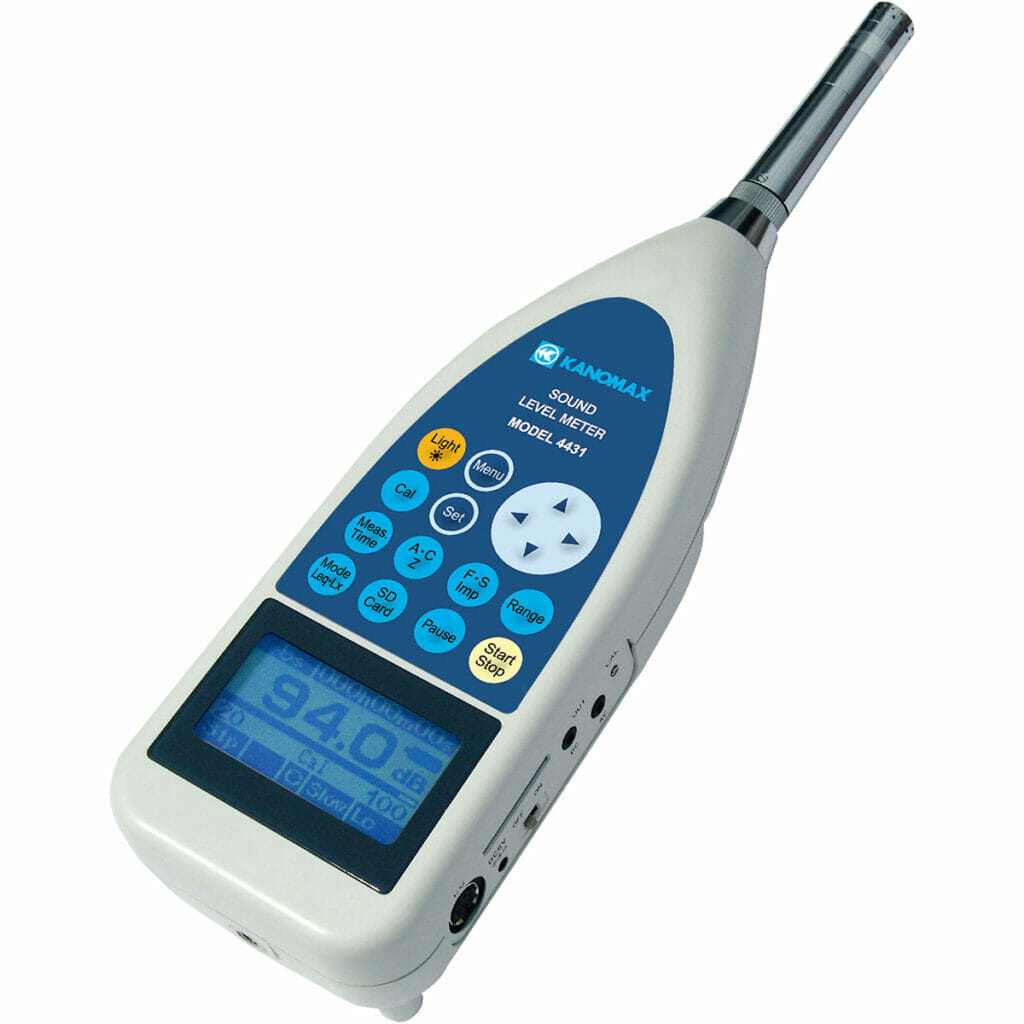

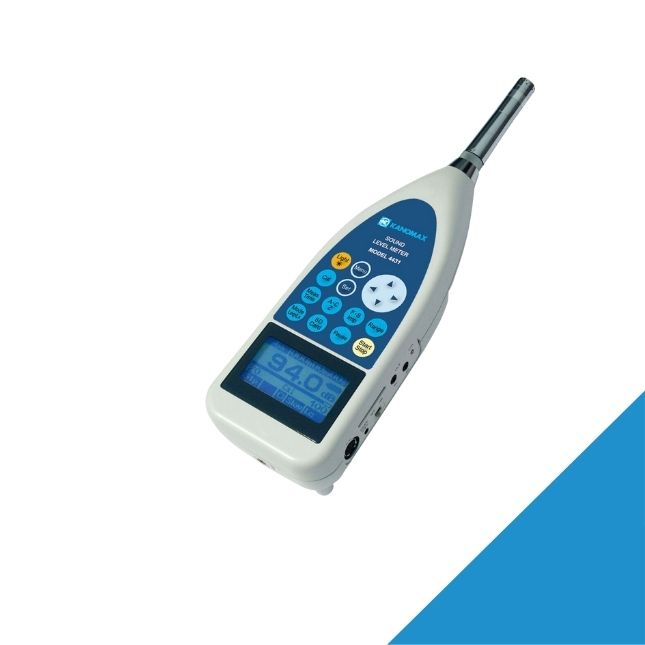

The Kanomax Sound Meter – Model 4431-1G is the world’s first 0-dB function sound meter available. It is designed to meet Type 2 standards for ANSI S1.4 1983 and IEC 61672-1. The magnetic accelerometer easily attaches to machinery for increased accuracy and precise operation.this product’s has Features & Benefits;
*Lightweight and compact design
*A, C, and F weighting modes
*28 to 130 dB measurement range
*Measures Lp, Leq, Le, Lmax, Lmin and Lx
*Equipped with highly sensitive electret condenser microphone
*Large 4 digit display with 0.1 dB resolution with backlighting and analog bar graph
*Add additional functions with the program cards
*Includes SD card for data storage, windshield, carrying case, AA batteries, hand strap, and calibration certificate
| Brand |
Kanomax |
|---|
