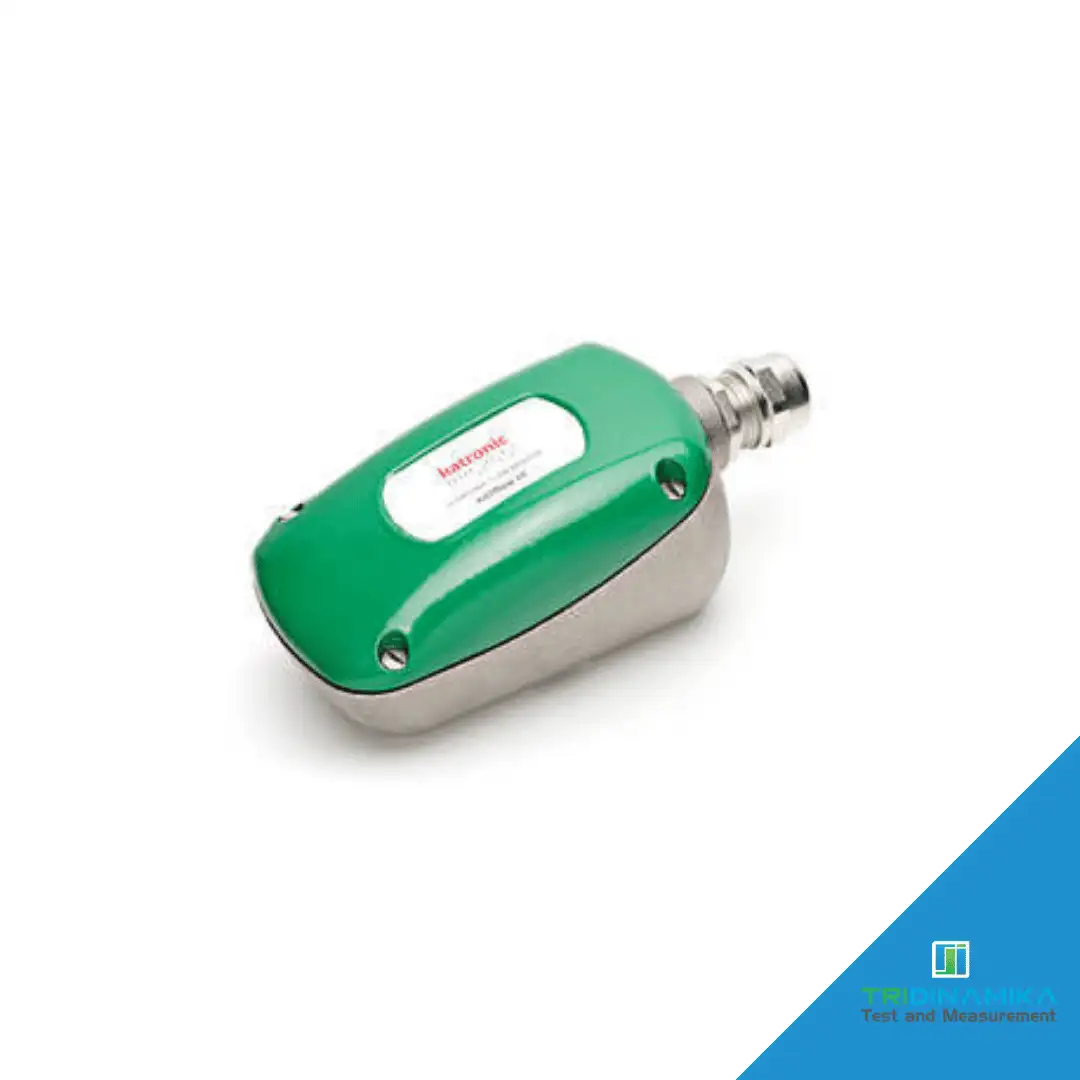

KATflow 10 Clamp On Ultrasonic Flow Monitor
Small size
Quick and simple installation
No complicated process connections
Low purchase costs
Easy programming through dedicated software
For acoustically conductive fluids with particle concentration > 200 ppm
Pipe diameter range 30 mm to over 350 mm
Temperature range 20 °C to +70 °C 4 °F to +158 °F
Robust 316 stainless steel housing
Velocity range 0 3 … 4 ms
Power supply 18 … 28 VDC
Weight 1 5 kg
Water and Wastewater
Wastewater measurements
Sludge monitoring
Effluent measurements
Pump protection
Food Production
Metering food waste pipes
High viscosity food production lines
Power Generation
Feed flows to anaerobic digesters
General Industry
Aerated liquids
Quarry slurries
Activated sludge
Ash slurries
Paper stock
Paint
Product Details
The KATflow 10 is a simple ultrasonic clamp on flow monitor which provides an extremely cost effective alternative to in line flowmeters on effluent wastewater and sludge applications The KATflow 10 is used to monitor the flow of liquids containing higher levels of solids or entrained gas bubbles for measurements where a general flow indication is sufficient The instrument is extremely simple to install and commission and is ideal for applications which demand good repeatability and reliable results
| Brand |
Katronic |
|---|
