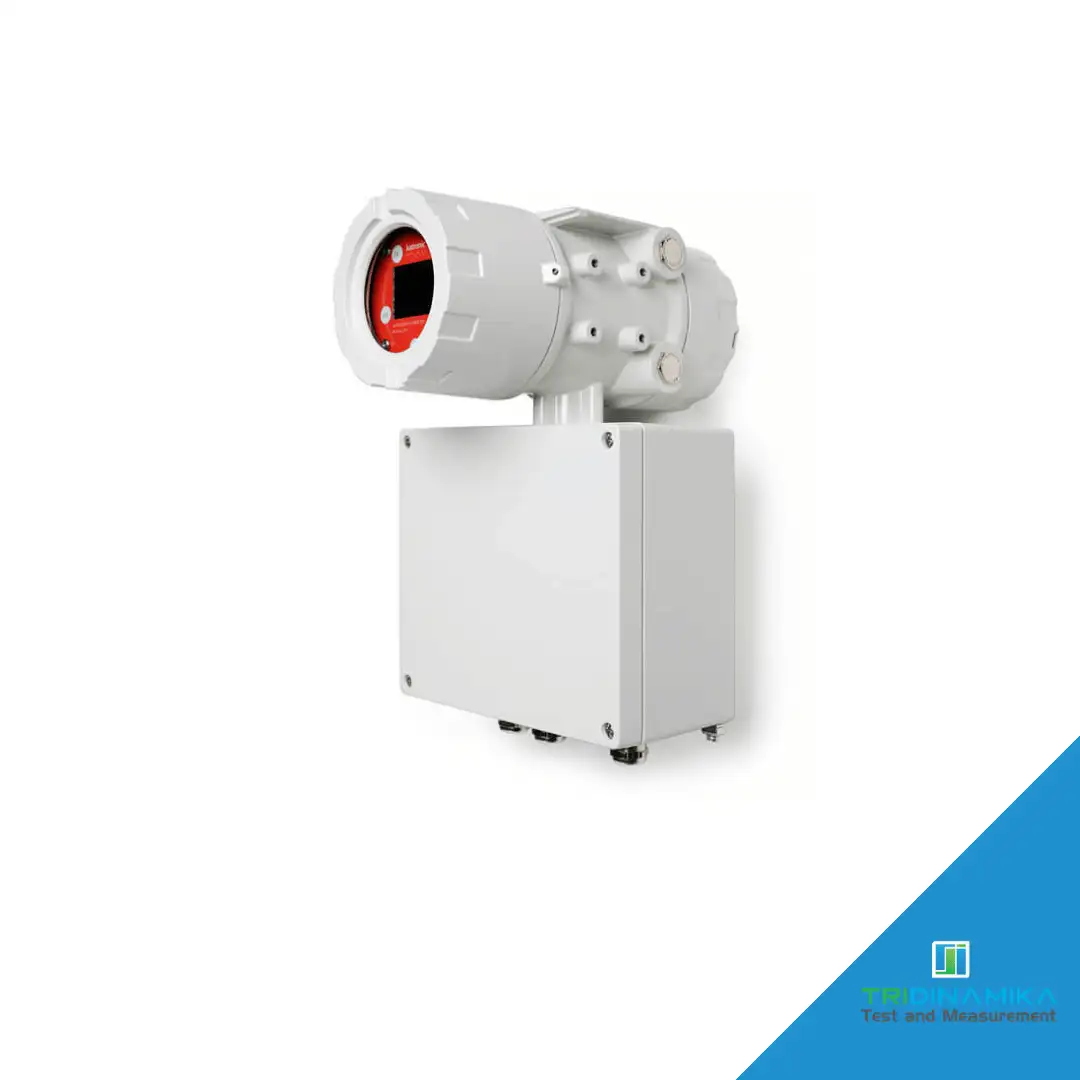

KATflow 180 Gas Clamp On Ultrasonic Flowmeter

The new KATflow 180 represents the culmination of many years of development in the field of ultrasonic technology It has been designed to provide a reliable measurement on varying applications from high pressure flow systems to locations where in the past clamp on devices would not have been considered suitable Unlike other instruments the new meter can be installed on metallic gas pipes where the pressure is far lower than the recognised five bar minimum with measurement possible down to atmospheric conditions This is achieved through a combination of powerful sophisticated electronics adaptive filtering techniques and innovative signal processing algorithms using Digital Signal Processors DSPʼs

Pipe Diameter 25 – 1500 mmDegree of Protection IP 66Temperature Compensated FlowATEX certifiedPressure Compensated FlowVarious Gases Possible
With the innovations introduced by Katronic in the KATflow 180 it is possible to measure flow of a variety of different gaseous media from 0 1 to 75 ms The advanced transducer assembly economically offers both shear and Lamb wave measurements with a minimum number of sensors for greater simplicity The unit is available for permanent use in both safe and hazardous environments with rugged housings for Zones 1 and 2 The KATflow 180 is easily programmed with a magnetic pen for increased safety and can measure on all commonly used pipe materials
