Three different measurement modes to maximise battery life
Up to 100 000 measurement data logger and software for sampling and data transfer
IP 68 stainless steel sensors cable and connectors as standard
Process output options including current open collector relay
Integrated pipe wall thickness gauge available
Optional wireless data transmission
Pipe diameter range 10 mm to 2 500 mm
Temperature range for sensors 30 °C to +130 °C 22 °F to +266 °F
Rugged integrated IP 67 portable design
Compact housing 260 h x 280 w x 200 d mm
Selectable three line LCD display and full keypad
Standard operation up to 100 days longer in power saving modes
Water and Wastewater
Long term leakage surveys
Metering in pits wells and areas where flooding is likely
In line flowmeter inspection verification
Metering of pipes in exposed locations
Temporary replacement of conventional in line flowmeters
Monitoring of irrigation systems
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free

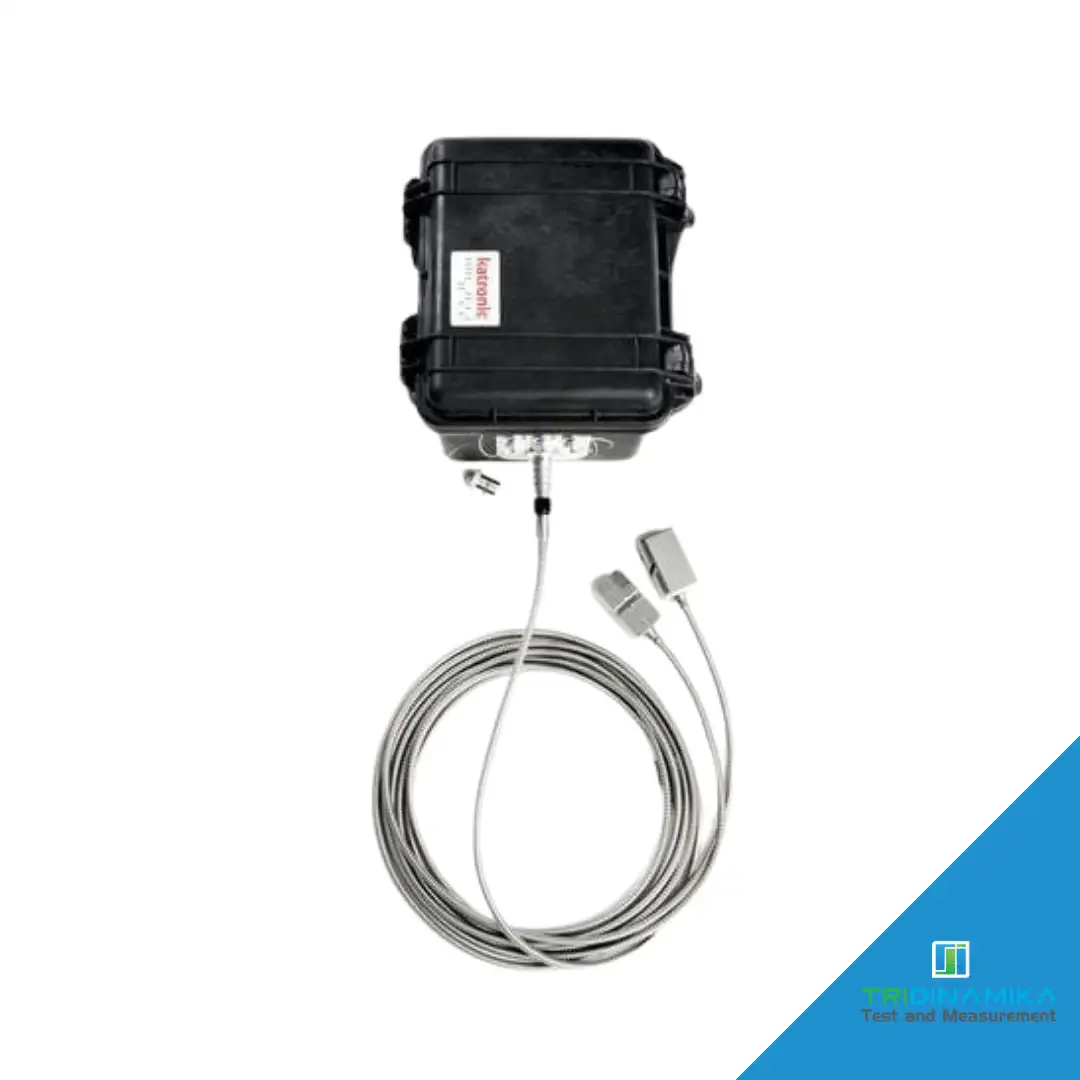

The KATflow 210 is a portable flowmeter designed for situations that require a reliable flow measurement regardless of the conditions in which it needs to be operated With its advanced battery technology and durable waterproof housing the instrument is intended for long term installation in remote areas where access to power is limited and exposure to the worst of elements is likely This device has been further enhanced by the inclusion of a specially manufactured IP 68 version of the K1N stainless steel transducers which increases shock protection and ensures this ruggedised package provides the perfect balance of reliability robustness and autonomy
Pipe Diameter 10 – 2 500 mmPortableBattery Life 100 dProcess OutputsInternal Data LoggerDegree of Protection IP 67
The flowmeter has been conceived through collaboration with customers in order to fill a niche within the Katronic product family namely to provide users with an instrument capable of operating in environments which would be beyond the tolerance of the standard portable flowmeters The KATflow 210 is built into its own robust IP 67 transport case allowing it to continue functioning even in the case of temporary immersion in water In addition to a sizeable data logger the KATflow 210 can provide a variety of process output options including the possibility of wireless
| Brand |
Katronic |
|---|
