Various input and output options for added flexibility
PT100 inputs for heat quantity energy measurement
Up to 100 000 measurement data logger and software for sampling and data transfer
Stainless steel sensors cable and connectors as standard
Three different transport case options including special IP 67 version
Standard and high temperature pipe wall thickness gauges available
Pipe diameter range 10 mm to 6 500 mm
Temperature range for sensors 30 °C to +250 °C 22 °F to +482 °F
Robust IP 65 aluminium enclosure
Selectable three line LCD display and full keypad
Battery life up to 24 hours with easily replaced battery cartridge
Dual flow monitoring with sum average difference and maximum calculations
Building Services
Single or dual channel heat quantity measurement
Efficiency monitoring of heat exchangers
Pump testing and inspection
Water and Wastewater
Drinking water and effluent measurements
Dual channel measurements on large pipes for increased accuracy
Screened sludge monitoring
Manufacturing and Process
Measurement of hydraulic oil
Fuel consumption measurements
Measurement of paint flows
Power Generation
Measurement of cooling circuits
Verification of main water inlets
CHP monitoring Combined Heat and Power
Marine and Shipbuilding
Heavy fuel oil measurements
Balancing of hot water systems
Monitoring of seawater inlets
General Industry
CIP system testing
In line flowmeter performance verification
Temporary replacement of conventional in line flowmeters
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free

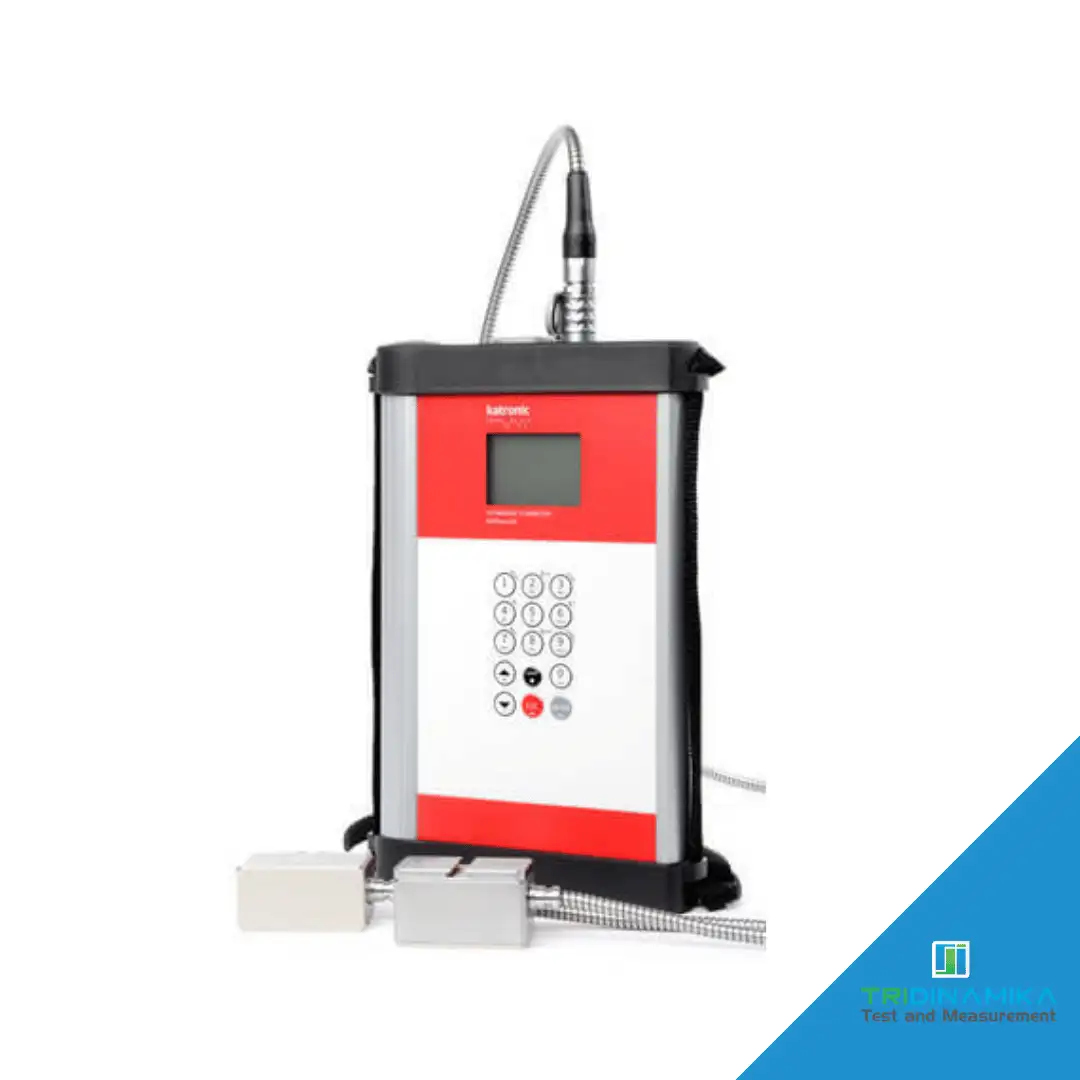

The KATflow 230 is easily portable but incorporates an advanced specification for situations which require comprehensive measurement features coupled with easy operation The flowmeter has two measurement channels which allow it to monitor two pipes simultaneously or to improve accuracy in non ideal conditions The KATflow 230 can also be supplied with a variety of options to meet the most diverse application requirements
Pipe Diameter 10 – 6 500 mmPortableBattery Life 24 hInternal Data LoggerWall Thickness MeasurementHeat Quantity Measurement
The choice of 4 20 mA relay and open collector outputs available on the KATflow 230 allow it to be used as a temporary replacement for existing in line flowmeters when calibration is due Moreover the inclusion of PT100 temperature inputs enables the instrument to provide either temperature compensated flow data or full energy measurement This functionality can be further enhanced by using the innovative expansion capability which permits the flowmeter to perform dual channel heat quantity measurements or to integrate alternative output options such as Modbus
| Brand |
Katronic |
|---|
