No
Analysis Item
Analysis content
SMV Measurement and analysis
Interception
Automatically intercepts SV messages from 4 optical ports and 1 optical interface
Effective value
Real time display channel of amplitude phase and frequency
Oscillography
Real time display of waveform
Sequence component
Real time display the positive sequence V1 negative sequence V2 zero positive sequence V0 of magnitude and phase
Power
Real time display of ABC phase and three phase active reactive power apparent power and power factor
Vectorgraph
The magnitude and phase relationship of the three phase voltage and current are displayed in vector form
Harmonic
Real time display 0 ~ 19 harmonics and show the harmonic content in the form of histograms
Message parameter
Real time display of the current message parameters the original message and parsed message
Abnormal
message
The number of abnormal message
Discrete
Value
The number of messages in each discrete
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free

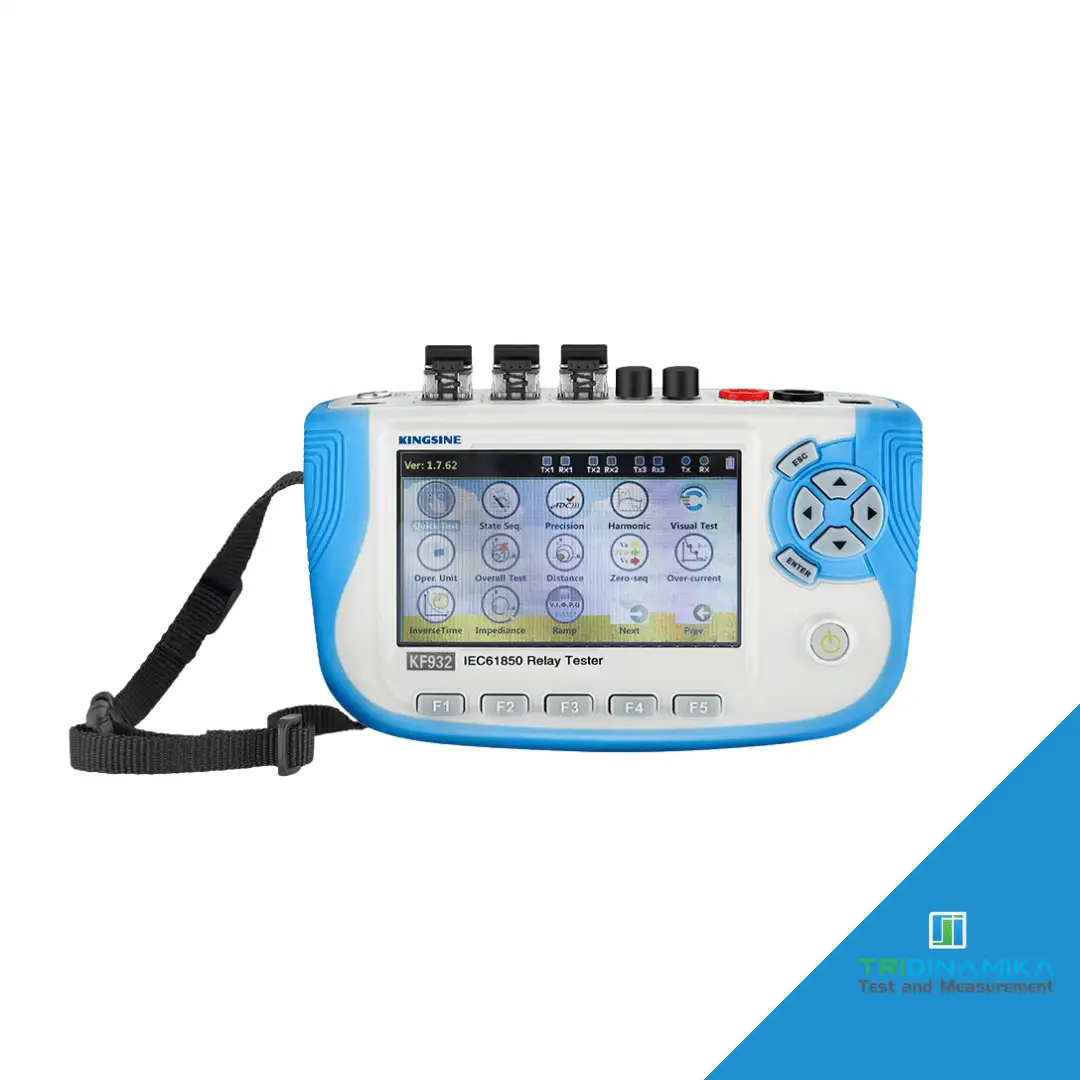

The KF932 IEC61850 is a Handheld digital relay tester digital protection relay testing device designed to meet the testing and detection needs of digital protection relays measure and control devices IEC61850 complying IEDs merge units and substation control systems
Equipped with a touch screen and keypad the KF932 test set is user friendly and can be easily customized to meet the needs of different users The device also features a large capacity 4400mAh lithium battery that can provide continuous operation for over 10 hours making it a reliable and efficient tool for Handheld digital relay tester
The KF932 test set is based on intelligent substation related standards and is capable of analyzing SV GOOSE IRIG B and IEEE1588 messages as well as calculating the magnitude phase and frequency of voltage and current Additionally the device can monitor GOOSE virtual terminals in real time
The test set can also perform closed loop testing of smart devices via SV and GOOSE message sending subscription and publication of GOOSE messages The phase detection function is achieved through analyzing and calculating different control blocks while binary input and output of the hard contact can be completed on the intelligent operation box The device can also accurately measure transmission delay and SOE
The KF932 Handheld digital relay tester also has SV and GOOSE exception statistics analysis and synchronization functions that can achieve the integration of the unit discrete lost frame and absolute delay measurement
With its small size touch screen operation and powerful measurement and analysis capabilities the KF932 test set is an excellent tool for the operation maintenance and debugging of protection monitoring and control devices IEC61850 complying IEDs merge units and station control systems It can easily meet the detection and commissioning requirements of intelligent substations
| Brand |
Kingsine |
|---|
