Specifications
Voltage Output KA30 KA60 KA30i KA60i
Voltage Range 4 × 0~130V RMS 4 × 0~300V RMS
Power >65VA Phase >150VA Phase
Gain 18VV 40VV
Voltage Output Accuracy <±0 2%
Rate Vibration of Load Change <±0 2% 1~30VA Power output 57 7V
Input Impedance >10kΩ
Frequency Range DC 5KHz ±1dB
Harmonic Distortion Ratio <0 2%
Input Output Delay <20μS 50Hz
Step Response <20μS
Input Signal Level 0~7 5V RMS
Current Output KA30 KA30i KA60 KA60i
Current Range 3 × 0~30A RMS 3 × 0~60A RMS
Power >450VA Phase >800VA Phase
Gain 4AV 8AV
Current Output Accuracy <±0 2%
Rate Vibration of Load Change <±0 2% 0~2Ω 5A
Input Impedance >10kΩ
Frequency Range DC 5KHz ±1dB
Harmonic Distortion Ratio <0 2%
Input Output Delay <20μS 50Hz
Step Response <20μS
Input Signal Level 0~7 5V RMS
Phase Phase Accuracy <0 2°
Power supply AC Voltage Input 220V±10%
Power 2000 VA
Frequency 50Hz 60Hz
Others Temperature 0℃~ 50℃
Humidity ≤95% no condensation
Weight <20 kg
Dimension 135mm×445mm×400mm 3U 19inches
Order Information
Model Part No Descriptions
KA30 205003 3 × 0~30A 4 × 0~130V
KA30i 205005 3 × 0~30A 4 × 0~300V
KA60 205004 3 × 0~60A 4 × 0~130V
KA60i 205006 3 × 0~60A 4 × 0~300V
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free

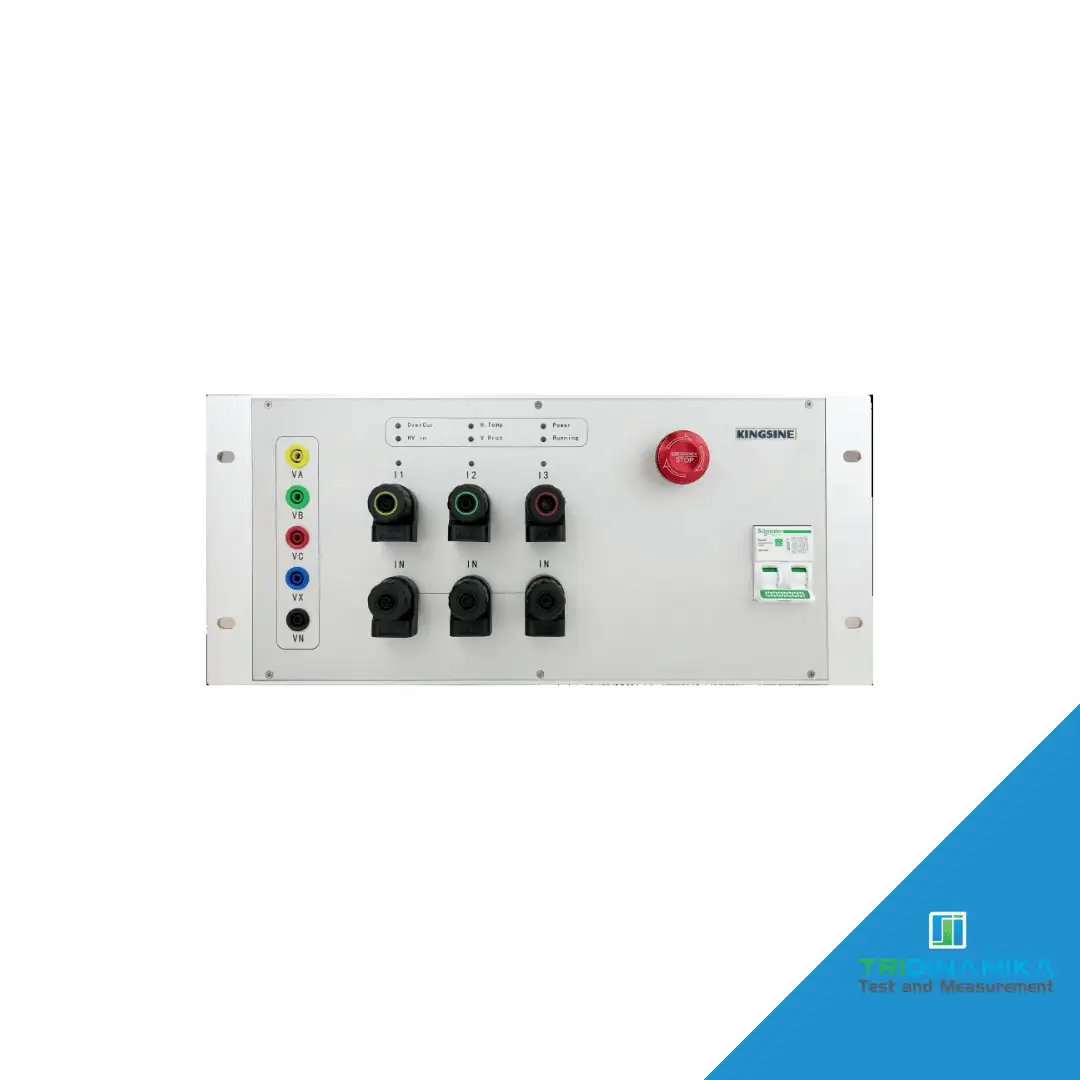

KA30 KA60 is high accuracy high power Panel mounted type real time simulation power amplifier with four phase voltage and three phase current;
Each output channels are independent and simultaneous control of magnitude Phase angle and frequency values;
Able to inject DC AC sine wave and up to 5KHz signals;
High burdens ability real time hardware in the loop simulation
| Brand |
Kingsine |
|---|
