Analog Input Channels Input Range Remark
Voltage V1 ~ V4 0 8V LPVT
Current I1 ~ I4 0 8V LPCT
LPlT output that supports all typical sensor types according lEC61869
Rogowski coil and inductive low power sensor for current
R divider and C divider for voltage
LPIT_adaptor png
Analog Output Range Accuracy
LPVT Ch1 ~ Ch4 1V 0 08%rd+0 03%rg
10V 0 06%rd+0 03%rg
LPCT Ch5 ~ Ch8 35V Single ended mode 0 15%rd+0 02%rg
70V differential mode 0 15%rd+0 02%rg
Frequency DC 1000HZ
Resolution <1 75mV
Phase 0 1°
Remote control 5V Single ended differential mode control single ended mode when no 5V is present
Load Capacity >10mA
Power Supply 90 264VAC 0 5A 47 63Hz
Dimension 270mm*167mm*64mm
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free

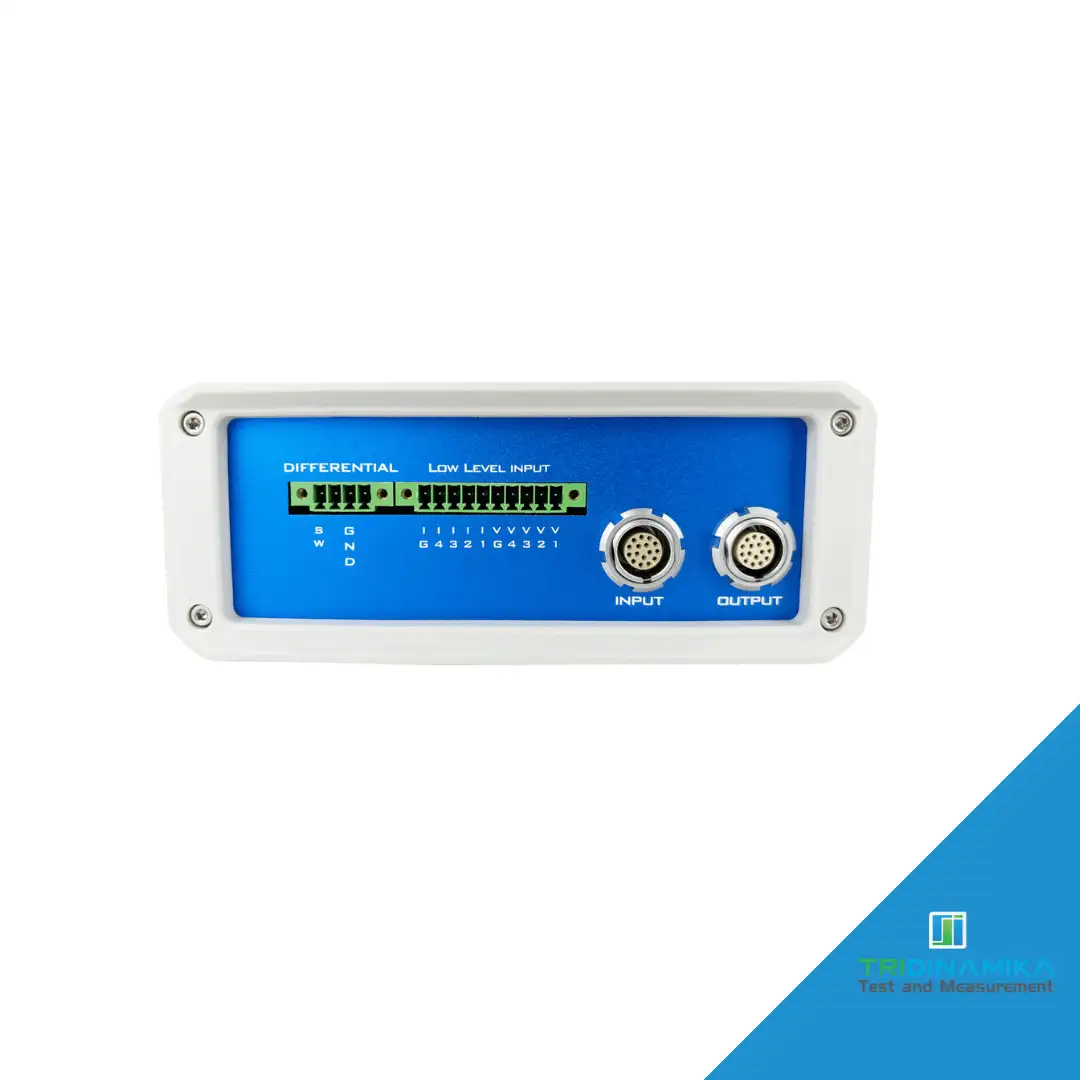

KINGSINE LPIT Adapter
The LPIT Low Power Instrument Transformer Adapter is a signal converter that can receive the LLV 0 8V signal from the test device and convert it into voltage signals that are suitable for the conditions of IEC61869 10 LPCT and IEC61869 11 LPVT standards
It enables you to test protection and measurement devices that have low level inputs for voltage and current sensors with the KINGSINE protection relay test set
| Brand |
Kingsine |
|---|
