Calibrate milliamps and voltage
Source 0 00 to 24 00 mA 0 00 to 10 25 VDC and 0 00 to 80 00 mV
Read to 24 00 mA 00 00 to 10 25 VDC 0 0 to 60 0 VDC 00 00 to 80 00 mV
Simulate 2 Wire transmitters
Power up transmitters and loops with built in 24 V power supply
Simplify HART hook ups with built in 250 ohm resistor
Calibrate directly in temperature °C °F
Thermocouple types J K T E R S B N G C D L J DIN U T DIN and P Platinel II
RTD types Pt 100 Ohm 3850 3902 3916 3926 1000 Ohm 3850
Copper 10 50 Ohm Nickel 110 and 120 Ohm
Resistance up to 4010 ohms
Checkout flow and vibration systems
Source read frequency to 2000 CPM Counts Per Minute 999 99
Hz 9999 9 Hz 20 000 kHz
Source pH signals to calibrate pH transmitters and instruments
Source from 0 000 to 14 000 pH @ 25°C 77°F corresponding to +414 12 to 414 12 mV
Measure pressure with optional pressure modules
32 modules for gauge differential compound and absolute pressure
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free

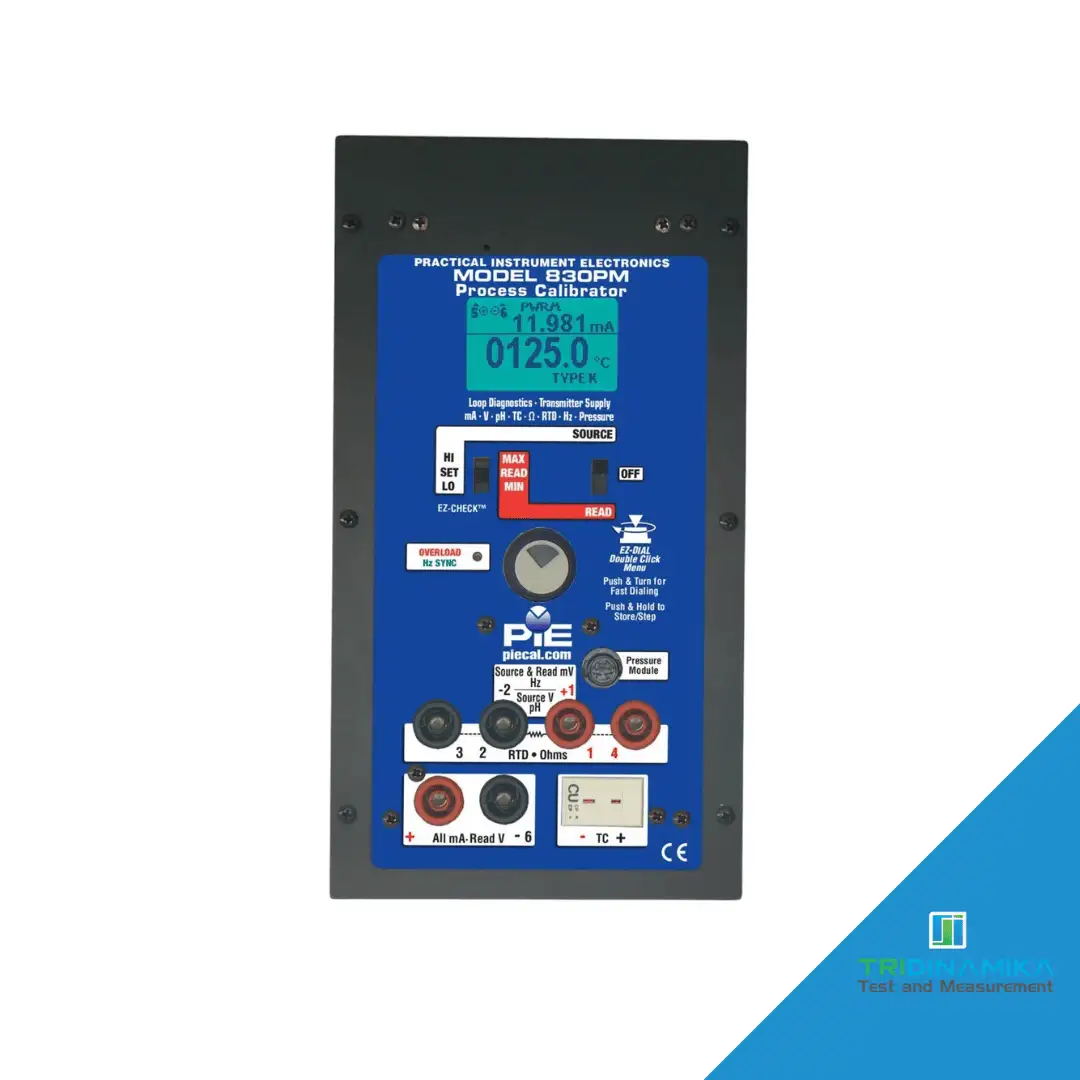

The PIE 830 830PM multifunction process calibrator sources and measures mA mV V ohms frequency to 20 KHz 14 TCs 9 RTDs It can detect hidden loop problems and can be used as a universal isolated transmitter for temperature frequency millivolt or pressure
The PIE 830 830PM automatically detect 2 3 or 4 wire RTDs It sources and reads thermocouple types J K T E R S B N G C D L J DIN U T DIN and P Platinel II RTD types Pt 100 Ohm 3850 3902 3916 3926 and 1000 Ohm 3850 copper 10 50 Ohm Nickel 110 and 120Ω
The patented Loop Diagnostic technology detects ground faults and current leakage Loop current loop loads and power supply voltage are simultaneously displayed in order to check all loop parameters at once
| Brand |
PIE |
|---|
