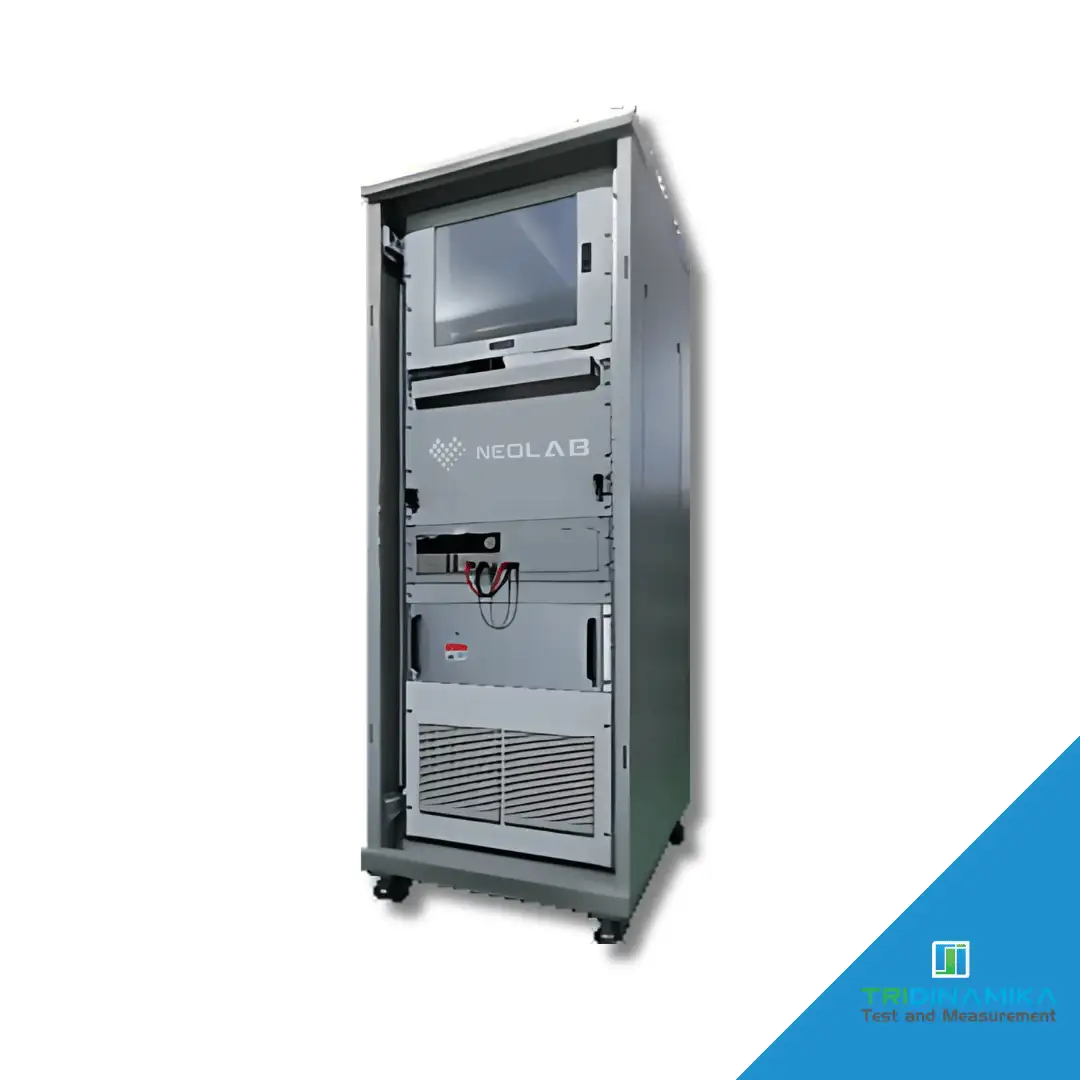

NEOLAB Bypass Diode Test System

Bypass Diode Test Meter
Thermal Test Current Range Supports DC current from 0 to 40A for precise thermal testing
Functionality Test Executes pulse current tests with a duration of 1ms
Thermal Runaway Test Performs rapid switching within 10 ms transitioning from forward current injection to reverse bias voltage application for accurate thermal runaway analysis
Data Acquisition System
Automatically adjusts current settings and measures voltage and temperature across 6 or more channels for each parameter
Support Tools and Materials
Temperature Rise Glue and Disperser Used for attaching thermocouple lines to diodes and ensuring even dispersion
Electric Drill Facilitates trepanning for thermocouple lead placement
Silica Gel and Gun For sealing junction boxes securely
Multimeter Evaluates diode resistance at Isc * 1 25

Additional Equipment
Industrial Control Computer Ensures seamless control and data processing
High Temperature Test Chamber or Electric Blanket User prepared for thermal testing needs
Test Types
Bypass Diode Thermal Test Assesses thermal performance under operational conditions
Bypass Diode Functionality Test Verifies diode functionality through pulse current application
Bypass Diode Thermal Runaway Test Evaluates the diode’s response to rapid temperature changes
Compliance Standards
Meets IEC 61215 22021 IEC 61730 22020 IEC 627902020 for thermal and functionality tests
Adheres to IEC 629792017 for thermal runaway testing
This system provides a reliable efficient and standards compliant framework for testing bypass diodes ensuring safety and performance in solar modules
