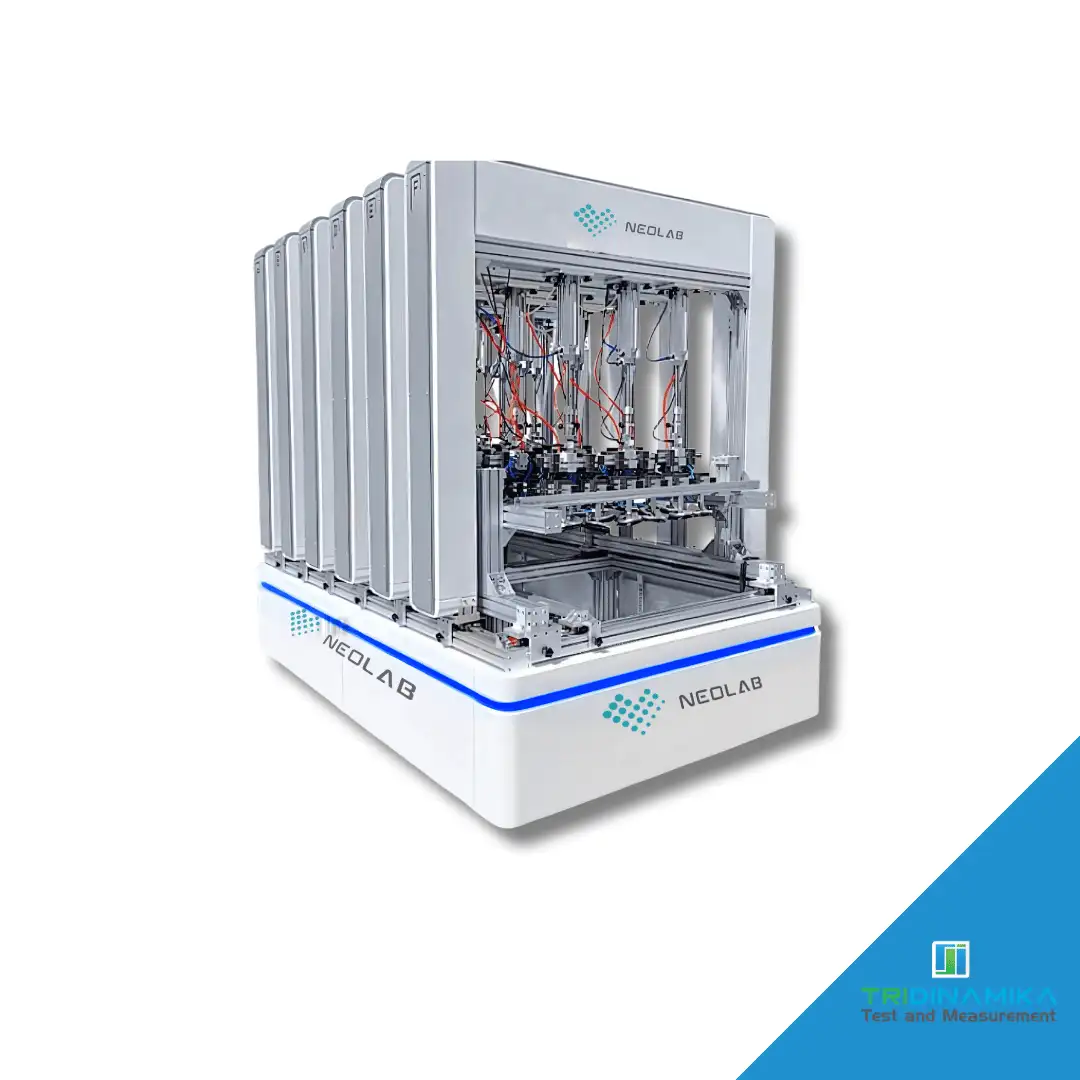

NEOLAB Dynamic Mechanical Load Tester

NEOLAB Displacement Measurement
Uses non contact displacement sensors LVDT with a deflection measurement range of up to 1 000 mm
Load Uniformity and Application
Ensures load uniformity within ±5% across the module surface
Load is applied gradually and uniformly to simulate real world conditions
Pneumatic System
Features 21 pneumatic cylinders each with one suction cup 84 cups in total
The suction cup arrangement ensures even load distribution with a center to center distance of ≤200 mm
Includes a telescopic stroke of 300 mm for flexibility
Power Supply Operates on a 380V 50Hz electric system
This tester ensures precise reliable and standardized evaluation of PV modules’ durability under mechanical stress complying with international standards such as IEC61215 22016 IEC61215 22021 IEC61730 22016 and others
Dynamic cyclic load 1 000 Pa ± 100 Pa with up to 2 000 cycles at a frequency of 3 to 7 cycles per minute
Temperature Monitoring
Equipped with temperature sensors for monitoring the module surface with an accuracy of ±2 0°C and a repeatability of ±0 5°C
Sensors can be attached to the front or back of the module without interfering with load testing
Static force Up to +10 000 Pa positive and 6 000 Pa negative adjustable to any required load
