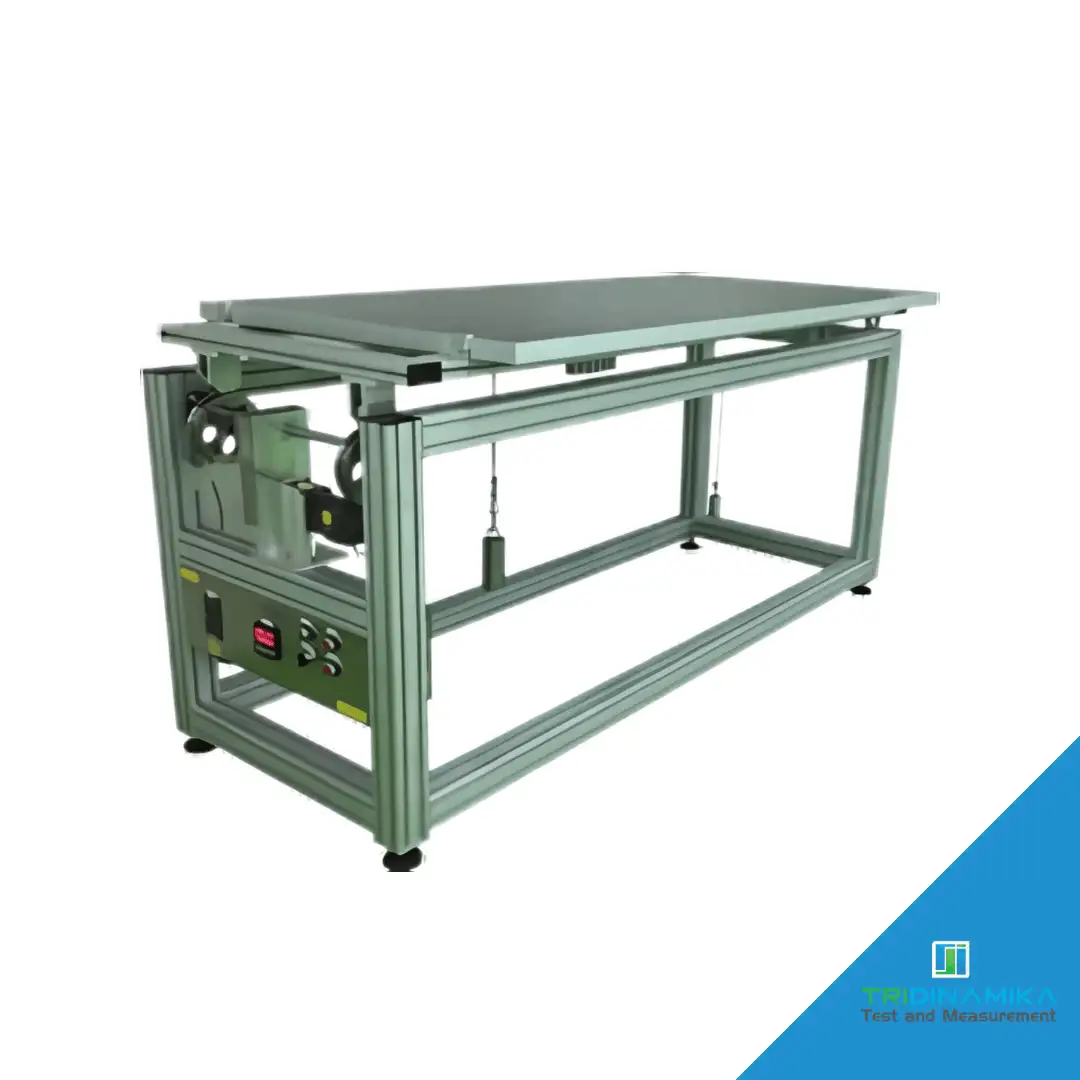

NEOLAB Robustness Terminations Tester

Cable Torsion Test
The Cable Torsion Test measures the torsional resistance of the cable anchorage Key details include
Test Subjects Cable anchorage of the module
Torsion Values The test applies a torque value of 0 1 N·m
Equipment A rotating pointer provides a direct reading of the torque value while a digital display shows the number of rotations and angles
Standards This test adheres to the standards IEC 61215 22021 and VDE 0126 ensuring reliable results for cable anchorage and torsion tests

Cable Anchorage Test
The Cable Anchorage Test evaluates the strength and durability of the cable anchorage in the module The process involves
Test Subjects Cable anchorage of the module
Method A motor controlled off center pulley rotates and the pivot point is height adjustable for precise testing The fulcrum point is also adjustable for flexibility
Execution The cable is pulled 50 times along its axis for a duration of 1 second per pull ensuring smooth jerk free movements
Pull Force The test applies a consistent pull force of 30N
