Simultaneous Survey Option
Choose between simultaneous or separate ACVG and ACCA surveys for flexibility
Enhanced Ergonomics
Lightweight receiver 4 9 lbs 2 2 kg ensures comfortable full day usage
Removable Foot
Converts into a fully featured premium RD8100 pipe cable locator
Fast Efficient Mapping
One second mapping measurements save time and reduce costs
Integrated GPS
Automatic GPS capture in survey logs for precise location tracking
Depth of Cover
Records pipeline depth alongside current voltage and GPS data
Companion Android App
Enables on the go graphing walk back and walk forward navigation
PC App for Advanced Analysis
Offers improved charting tools for in depth survey review
Peak+ Technology
Guidance arrows for quick locating
Null arrows to detect signal distortion
Advanced Transmitters
New Tx 25 Compact lightweight rechargeable—ideal for distribution networks
Tx 150 Long range transmission with 19+ miles 30km+ coverage
Enhanced Self Test Certification
Self test feature checks receiver calibration for confidence in the field
eCert allows remote calibration verification using PCM Manager PC software
Software Apps
Mobile App Android – Bluetooth enabled data transfer
PC App – USB data transfer for detailed reporting and analysis
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free

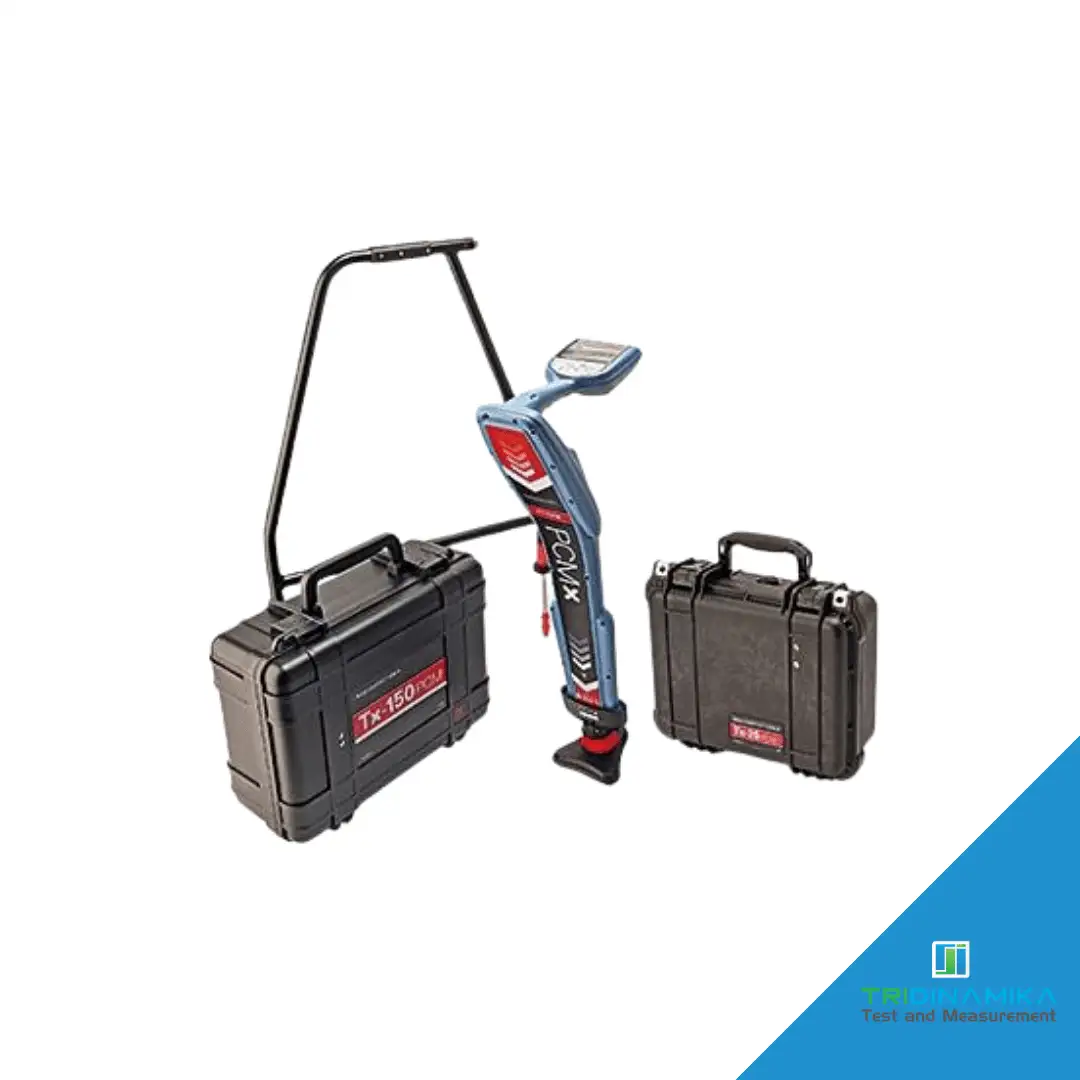

Radiodetection’s PCMx system enables corrosion and Cathodic Protection System CPS professionals to evaluate the condition and effectiveness of pipeline coatings Users can locate faults and holidays in the coatings and identify shorts caused by contact to other structures Our portable 25W transmitter represents a major advance in portability and usability
PCMx enables pipeline managers to identify and prioritise preventative maintenance on pipelines; extending asset life by identifying possible sources of corrosion at an early stage
The system can be used to conduct ACCA and ACVG surveys in accordance with ANSINACE SP0502 2010 ‘Standard Practice for Pipeline External Corrosion Direct Assessment Methodology’ These surveys which may be conducted separately or simultaneously can be used to locate and pinpoint coating defects or identify shorts made by contacts with other structures
Removal of the detachable foot leaves a fully featured RD8100PDLG pipe and cable locator Depth of cover and GPS positional data is also captured
| Brand |
PMDT |
|---|
