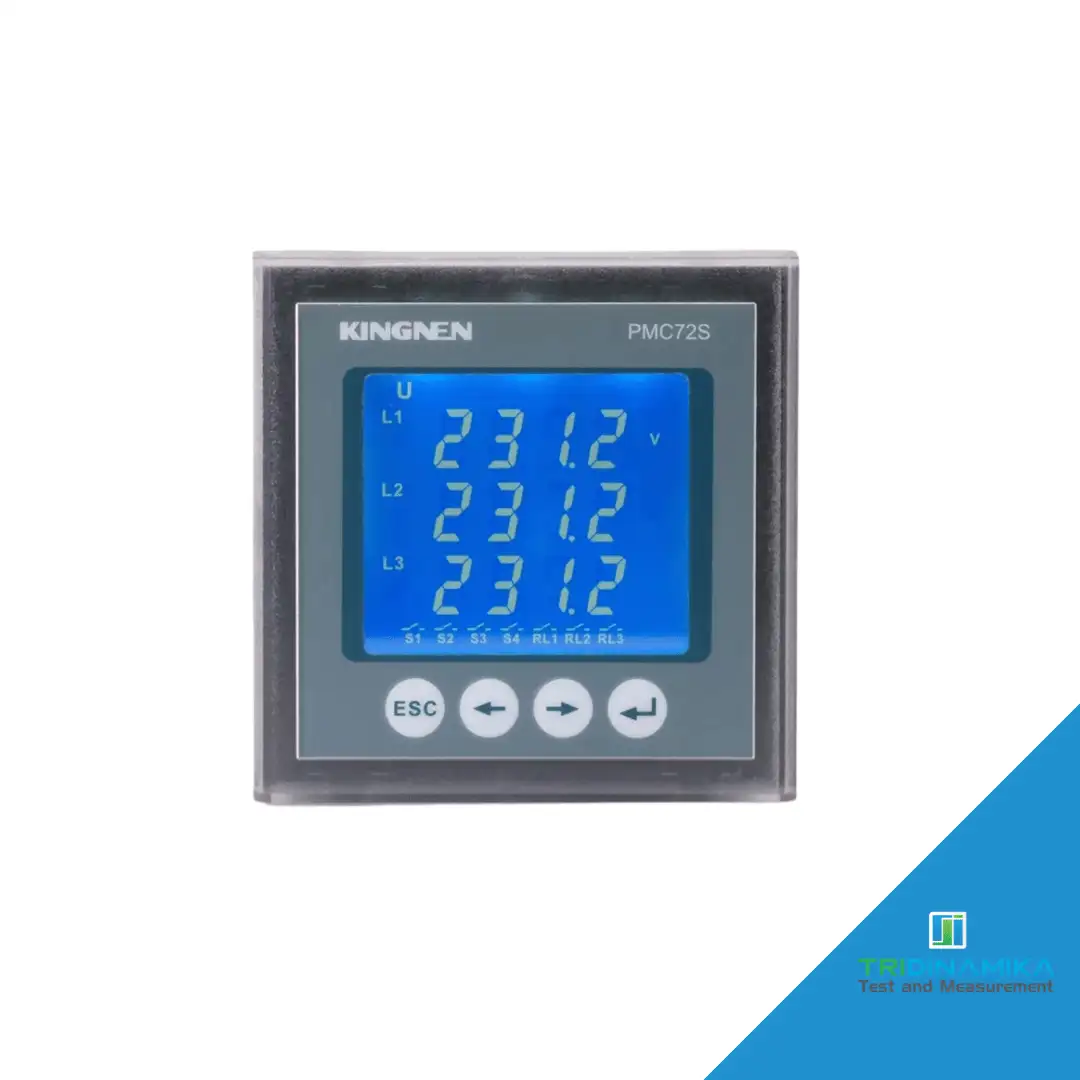

PMC72S Three phase Multifunctional Power Meter

Electrical characteristics
Measure Type 3P3W ACsystem 3P4W ACsystem
Sampling rate 128 points per cycle
Data refresh rate 1S
Measure accuracy Current ±0 2%FS
Voltage ±0 2%FS
Power 0 5S
Frequency ±0 001Hz
DC input
AI 0 5% FS
DC output
AO 0 5% FS
Input voltage characteristics Measure Voltage 3 *220380V Directly input
3 * 57 7100V PT secondary side
Allowed overload capability 1 2 timescontinuous
Input resistance 300KΩphase
Input current
characteristics Measure current 5A CT Secondary side or 1A CT Secondary side
Allowed Overload capability 1 2 timescontinuous
Input resistance <0 1Ω Binary input Working voltage 15 VDC Input resistance 12KΩ Isolation voltage 2KV Relay Output Node type Mechanical contact Node capability 220 VAC5A 30 VDC5A 4 20mA DC input measurement Measure current 4 20mA Allowed Overload capability 1 2 timescontinuous Input resistance 10Ω Isolation voltage 2KV 0 5V DC input measurement Measure voltage 0 5V Allowed Overload capability 1 2 timescontinuous Input resistance 12 5KΩ Isolation voltage 2KV 4 20mA DC output Open circuit 15VDC Load capability ≤600Ω Isolation voltage 2KV Power supply AC 85~264 VAC45 65Hz DC 100~375 VDC Power consumption < 3W Mechanical performance weight <0 5kg IP protection Level Meter Panel IP52 Meter Host IP30 Dimension Host 75 X 75 X 113 mm Working temperature Display screen 20~70℃ Meter 25~70℃ Storage temperature Meter+display screen 40~85℃ Relative humidity 5% 90%RH No condensation EMC Antistatic discharge interference IEC 61000 4 2 Level 4 Anti fast transient group pulse IEC 61000 4 4 Level 4 Anti surg IEC 61000 4 5 Level 3 Resistance to power frequency magnetic field IEC 61000 4 8 Level 3 Electrical insulation performance Insulation resistence GBT13729 >50MΩ
Power frequency withstand GBT13729 AC 3KV 50Hz 1min
Impulse voltage GBT13729 5KV 1 250us

13 People watching this product now!
  • Ini demo, bisa diisi apa saja
  • Ini demo, bisa diisi apa saja
  • Ini demo, bisa diisi apa saja
  • Ini demo, bisa diisi apa saja
  • Produk Tridinamika tersertifikasi jaminan SNI

Ini hanya demo

Free

  • Jasa Pengiriman kilat oleh tim Tridinamika

Ini hanya demo saja

2-3 Days

Free

Product Details

Specification

Description

PMC72S 3 Phase Multifunctional Power Meter adopts pen segment LCD screen which is simple and beautiful with high contrast; With the high speed processor as the core 22 bit AD is used to realize the full power parameter measurement which has a wide dynamic range and high accuracy Multi way switch value relay and RS485 communication module can be selected to meet various functional needs of users; It can easily realize the integration with various intelligent power distribution systems The product has practical functions is practical and simple and is easy to maintain It can be used to monitor and control the status of field equipment provide measurement support for power application experts provide data basis for SCADA and smart grid and provide decision making basis for efficient and intelligent power management
