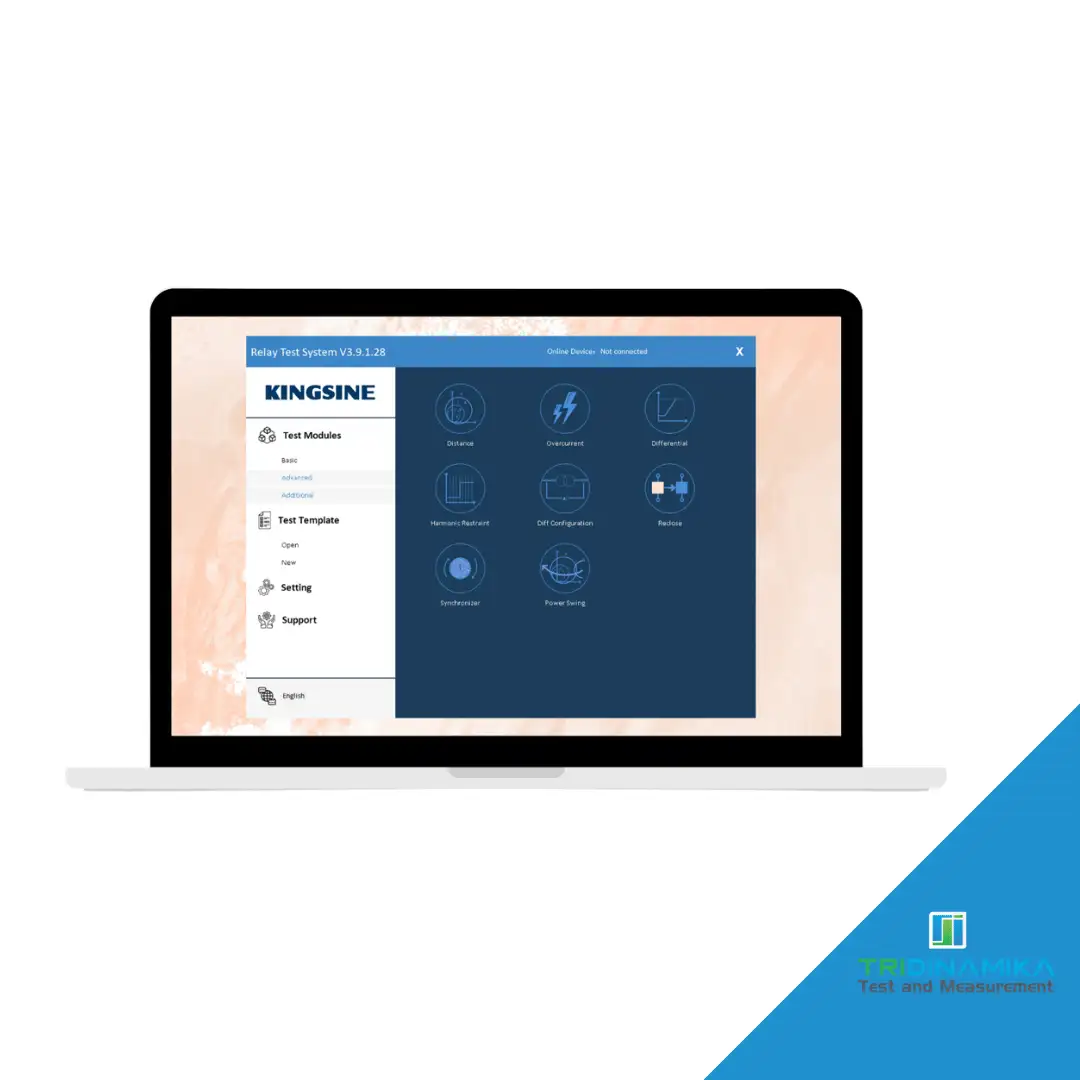

Protection Relay Test Software

Voltage Outputs
Output Range Power 4×310 V ac L N 124 VA max each
3×350 V dc L N 140 W max each
Accuracy <0 02%Rd+0 005Rg Typ <0 05%Rd+0 01Rg Guar ±10mV @ <5V dc ±0 5% @ ≥5V dc Voltage Range Range I 30V Range II 310V Automatic Range DC Offset <10mV Typ <60mV Guar Resolution 1mV Distortion <0 015%Typ <0 05% Guar Current Outputs Output Range Power 6×35A ac L N 450 VA max each 3×70A ac 2L N 850 VA max each 1×100A ac 6L N 1200 VA max 3×20A dc L N 300W max each Accuracy <0 03%Rd+0 02Rg Typ <0 1%Rd+0 05Rg Guar ±5mA @ <1A dc ±0 5% @ ≥1A dc Current Range Range I 3A Range II 35A Automatic Range DC Offset <3mA Typ <10mA Guar Resolution 1mA Distortion <0 025%Typ <0 07% Guar Frequency Phase Angle Frequency Range DC~1KHz 3KHz transient Frequency Accuracy ±0 5ppm Frequency Resolution 0 001 Hz Phase Range 360°~360° Phase Accuracy <0 02° Typ <0 1° Guar 5060Hz Phase Resolution 0 001° Aux DC Voltage Source Battery simulator Range 0~350V @ 140W max Accuracy 0 5%Rg Guar Binary Input Quantity 8pairs Type wetdry up to 300Vdc max input Time resolution 10us Sampling Rate 10KHz Debounce time 0~25ms Software Controlled Time range Infinite Time errors ±1ms @ ≤1s ±0 1% @ >1s
Galvanic isolation Isolated each pairs
Binary Output Relay Type
Quantity 4pairs
Type Potential free relay contacts software controlled
Break Capacity AC Vmax 400Vac Imax8A Pmax2500VA
Break Capacity DC Vmax 300Vdc Imax5A Pmax150W
Binary Output Semiconductor Type
Quantity 4pairs
Type Open collector Combination type male
Break Capacity DC 5~15Vdc 5mA 10mA max
Response time 100us
Synchronization
Synchronization Mode　 GPS SMA type antenna connector
Power Supply Environment
Nominal Input Voltage 110V220230V ac Appointed
Permissible Input Voltage 85~264Vac 125~350VDC auto protective
Nominal Frequency 5060Hz
Permissible Frequency 45Hz~65Hz
Power Consumption 1500 VA max
Connection Type Standard AC socket 60320
Operating Temperature 10℃~55℃
Storage Temperature 20℃~70℃
Humidity <95%RH non condensing Others PC Connection RJ45 Ethernet 10100M USB port 2 USB type A ports for external Keyboard mouse or Data transport Grounding Terminal 4mm banana socket Weight 20 Kg Dimensions W x D x H 480×320×160 mm
