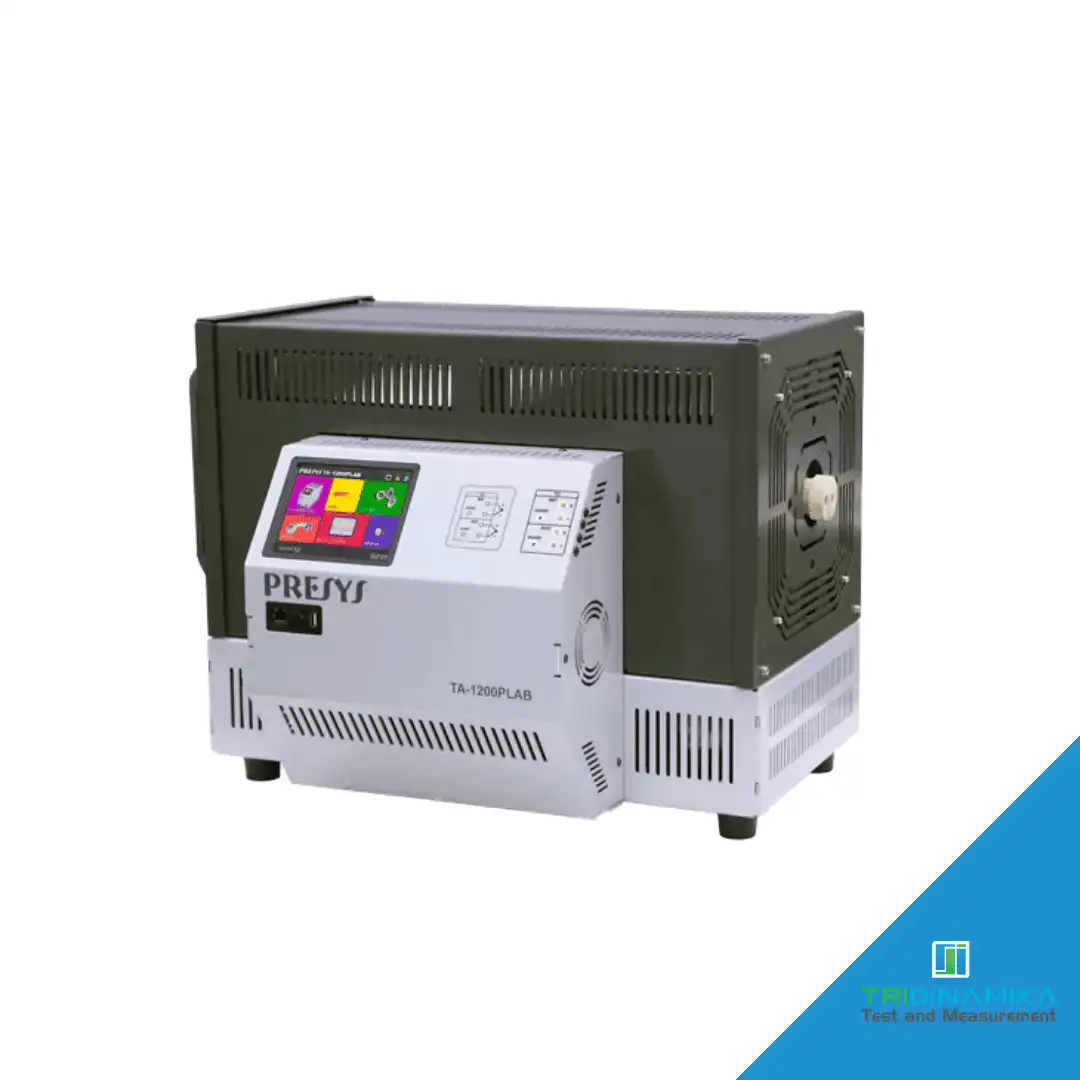

Presys TA-1200PLAB Reference High Temperature Furnace

The TA-1200PLAB Calibrator generates temperature values in the block or insert from 50 to 1200 °C. Its high accuracy and homogeneity is due to the fact that TA-1200PLAB has three control zones, allowing better distribution of temperature throughout the block and ensuring a better radial and axial uniformity through the extension of the 100 mm of measurement zone. It has two inputs for mV and for various thermocouples types, including Au-Pt, with deviation function configurable. It is available in two mounting versions: horizontal and vertical. TA-1200PLAB incorporates concepts of automatic calibration with calibration management softwares, especially with the Isoplan® Software, such as issuing reports and certificates, task management, calibration data organization and archiving etc.


Keyfeatures :

• Operating range: 50 to 1200 ºC
• Radial homogeneity: ±0.10 ºC @ 1100 ºC
• Axial homogeneity: ±0.20 ºC @ 1100 ºC
• Stability: ±0.10 ºC @ 1100 ºC
• Resolution: 0.01 ºC
• Immersion: 300 mm, Measurement zone: 100 mm
• Noise reduction design, heater core
• External reference thermocouple input
• Deviation function for TC test sensors
• Ethernet, Wireless, USB, TCP/IP – Built-in web server
• Built-in VNC for remote access, technical support
• Meets AMS2750E recommendations
• Easy LabView interface with WebApi
• Best-in-class temperature stability and uniformity
• ±0.3 ºC axial uniformity over 100 mm
• 3 zones control
• Improves uncertainty of thermocouples calibrations
