Calibrate TC instruments to 0 1 0 01 °F °C
Types J K T E R S B N G C D L J DIN U T DIN P Platinel 13 000 to 80 000 mV
Calibrate RTD instruments to 0 1 0 01 °F °C
Pt 10 50 100 200 500 1000 Ohm 3850
Pt 100 Ohm alpha=3902 3916 3926
Cu 10 50 Ohm and Ni 120 Ohm
Calibrate with Confidence
Resolution to 0 01 °F °C; accurate to 0 2°
Cold Junction Sensor accurate to 0 05°C
Verify Heat Treating Uniformity Survey Recorders and perform System Accuracy Tests
The PIE 525B is capable of meeting the requirements of an AMS 2750 Field Test Instrument when certified by an accredited laboratory
Troubleshoot RTD Sensors Instruments
Automatic detection of 2 3 or 4 wire connections indicates when individual wire connections are open Verify proper instrument operation by measuring the excitation current
Faster Calibrations
Instantly select three outputs with EZ CHECK switch
Easily find trip points with two speed EZ DIAL knob Automatic Stepping
Easily Change TC and RTD Types Scale
Double click to select TC or RTD type °F °C
Use in the Plant Field or Shop
Includes Rubber Boot and mV Test Leads
Low profile switches resist accidental damage
Brass screws for TC wires plus mini TC socket
Easy to Read Display
Turn on the backlight to read in dark areas of the plant
Simple “No Tool” Battery Changes
Four inexpensive “AA” batteries
Verify Resistance Cold Junction Temperature Output
Secondary Display of Resistance for RTDs and compensated millivolt setting and cold junction temperature for TC
Optional Accessories
Wire Mini TC Plug J T E K 020 0202 ; B RS K 020 0203
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free

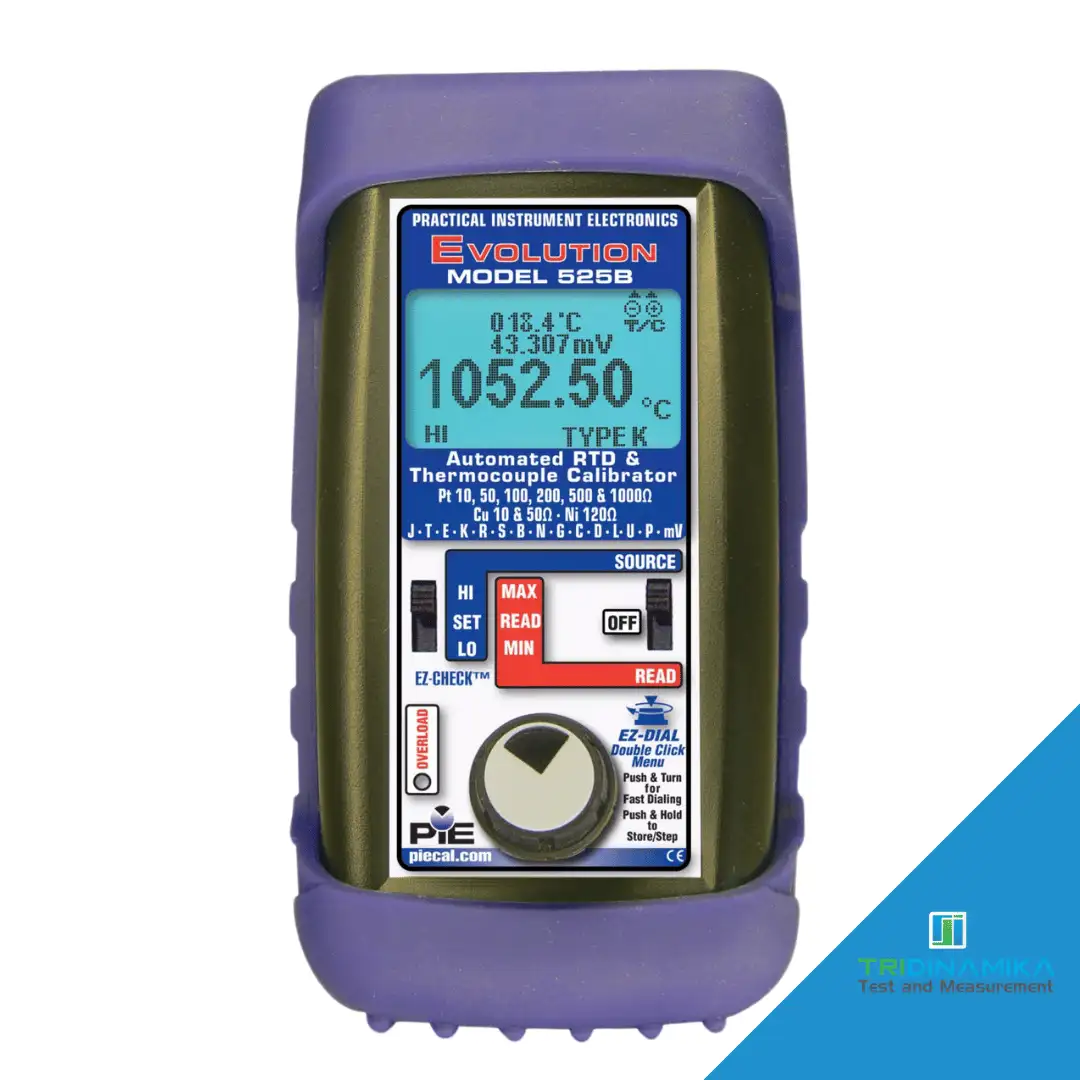

Improvements over the PIE 525 Thermocouple RTD calibator
PIE is pleased to introduce the New Model 525B which replaces the PIE Model 525 This moves our Dual Thermocouple RTD calibrator to the PIE Evolution enclosure with a rubber boot tilt stand 4 “AA” batteries and backlit display Not only did we move the product into the new enclosure we made a number of other improvements!
Increased number of TC types from 10 to 14
Added RTD types for Platinum 10 50 200 500 Ohm for the 1 3850 IEC 751DIN curve
More accurate stable cold junction compensation
NIST Traceable Cold Junction Sensor in isothermal block
Secondary display
Shows millivolts and cold junction temperature while displaying thermocouple temperature and shows ohms while displaying RTD temperature
Troubleshoot RTD Sensors Instruments
Automatic detection of 2 3 or 4 wire connections indicates when individual wire connections are open Verify proper instrument operation by measuring the excitation current
| Brand |
PIE |
|---|
