High-Current Arc Ignition Test Machine is used for evaluating Ignition Performance Level Category as per UL 746A. Any insulating material should resist electrical arcing when a high current tries to make path between a short distance that is only ‘connected’ by insulating surface. This is a requirement as per IEC 60947 – 1, BS EN 60950 – 1 and IEC 60335 – 2 – 40. Thus, it is a basic electrical safety requirement for all components such as cables, or for that matter any device employing an insulation such as polymers or polycarbonates.
This test apparatus is to be used in addition to High-Voltage Inclined Plane Tracking and Erosion Test Equipment
https://www.screlektroniks.com/pages/products/hv-inclined-plane-and-erosion-tester.php
for Cable manufacturers.
This test is necessary because insulating materials might withstand normal current but fail when a high current accidentally passes. Based on the time to fail up to 300 seconds, UL 746 A categorizes the insulating material.

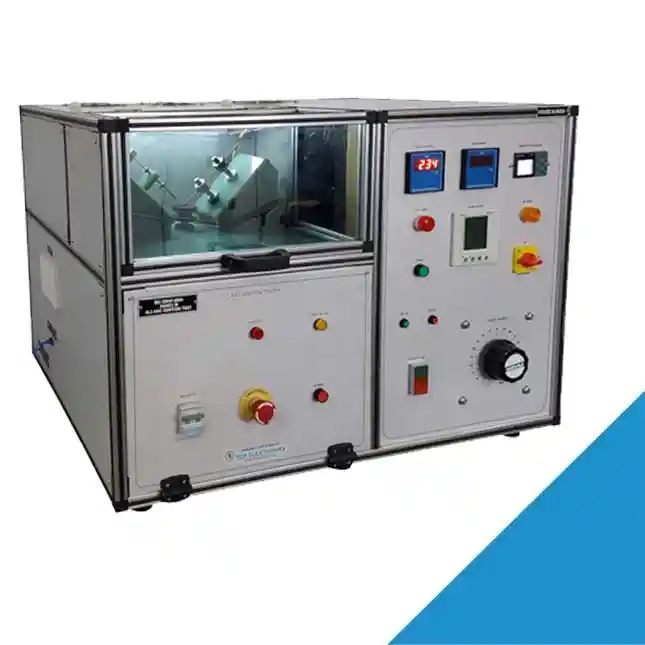

The SCR ELEKTRONIKS High-Current Arc Ignition Test Machine makes testing as per clause 32 of UL 746A a breeze. It offers a Siemens PLC based control system with all relevant meters on board. It is a cost-effective and yet elegant apparatus for your quality control department. Even the IEC 60947 – 1 clause 8.2.1.1.2 is available as a pre-programmed test procedure – something switchgear manufacturers have come to expect from us. The whole equipment is built in extruded aluminium with multiple fail-safety interlocks.
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free
Specification :
* Designed to comply with the requirements of UL 746A and IEC 60947 – 1
* Material of the products can be checked by continuous cycle by passing high current through the materials.
* Panel works in two mode such as Set Mode and Test Mode.
* Siemens make LOGO PLC to control the test sequence in Test Mode.
* Test chamber with Safety Interlock Switch.
* Emergency OFF provision.
* Protection for Over Load Trip function when set mode is selected for 10 Sec.
* Used by many leading manufacturers and Test Labs such as Intertek Testing Services, Truper S. A. de CV, Association de Normalization y Certification, A.C. (ANCE), GCC labs.
* Input Supply : 230V AC, 50 Hz, 40A max. (tailored to your standard supply from electrical utility)
* The adjustable current source is 230V AC @ 40AMP.
* Power Consumption peak during arcing is 9.2 kW
* Measurement accuracy (current) is 1%
* The load is adjusted to get 33.0 A at 0.5 Power factor across the DUT using Variac.
* The load is adjusted to get 33.0 A at 0.5 Power factor across the DUT using Variac.
