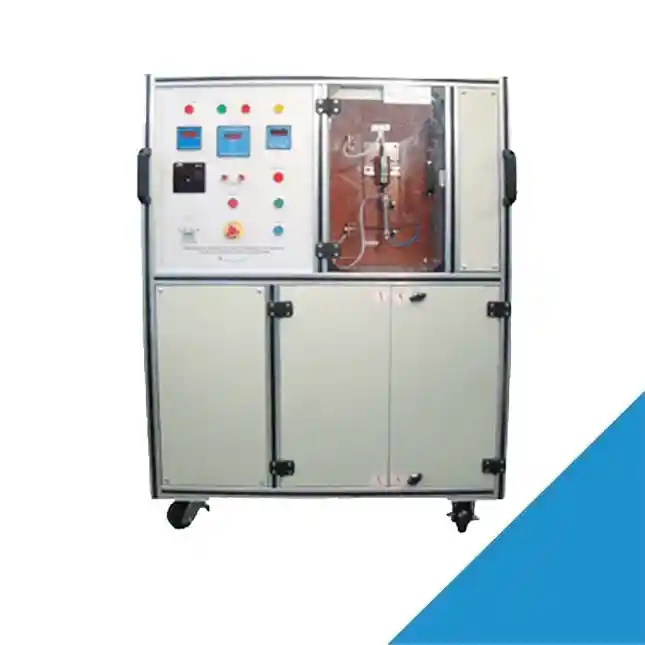

The SCR Elektroniks MCB Instantaneous Trip Test Bench is designed for Testing of MCB to carry out “Test of Instantaneous Tripping and of correct opening of the Contacts” as per IEC: 60898-1:2002 Clause 9.10.2 at rated voltage. This test is carried out with power factor between 0.95 and 1 with the sequence operation being O-t-CO-t-CO-t-CO with timings as specified in 9.12.11.1.
This test equipment also covers testing as per Indian Standard IS 8828 as well as Indonesian Standard SNI 8528-1 (BSN)
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free
* Completely stand alone test bench after initial configuration of parameters
* Output terminals for displaying current on an oscilloscope
* Sequence : By sequencing unit to get O-t-CO-t-CO-t-CO automatic
* Necessary lamps for quick indication on the front panel
* Microcontroller based timer to program test sequences
* Easy Serviceability due to smart internal wiring pattern
* Current Measurement : Transient Recording Meter to hold the current
* Fixture: Electro-pneumatic Fixture with Protected compartment
* Hold function on transient recording meter ensures holding the transient current value
Specification :
* Input : 415V, 2 phase with neutral
* Time Measured : 0.1msec to 200msec
* Rating of MCBs : 0.5A to 63A
* Curve : B, C & D Short time
* Test Current : 1.5A to 1500A
* Load : Distributed Resistive Load Bank 0.01Ω to 100Ω
* CT Ranges : 2.5A, 5A, 10A, 25A, 50A, 100A, 250A, 500A, 750A, 1500A (Selected through shorting link)
* Selection of Load: By shorting link as per chart
* Supply Required :
a) Phase I Short Time 240V@700A
b) Phase II 240V@ 5A
| Brand |
SCR Elektroniks |
|---|
