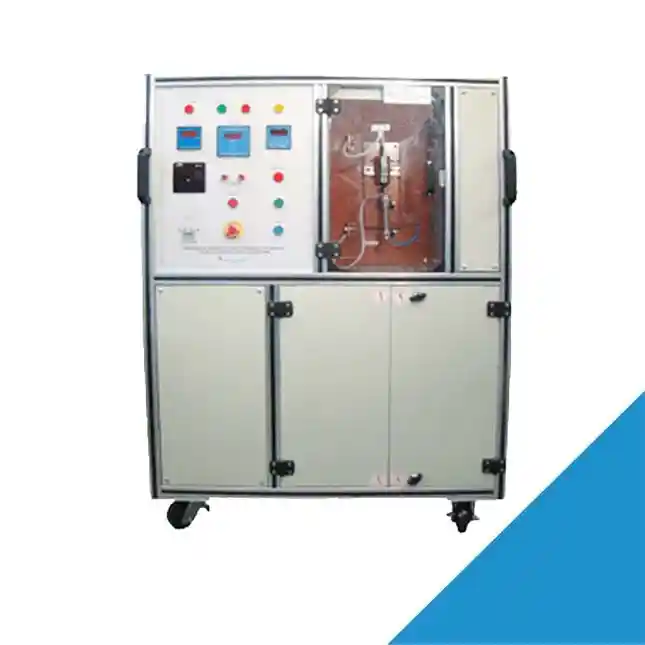

The test bench is specially built for low voltage- B, C & D curve MCBs. Specially designed custom built jigs are able to accommodate single, double, three and four pole MCBs. Decades of experience has helped us to design current source (transformer) in a special way such that good current regulation and high accuracy is ensured with a variable range without the use of any variable transformer in the system. The product is better than the competition with conventional technology at a lesser price!
This test equipment also covers testing as per Indian Standard IS 8828 as well as Indonesian Standard SNI 8528-1 (BSN)
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free
* The cycle time is around 7 seconds for 4 pole MCB (less than 2 seconds per pole)
* Can be used for both production and R&D purpose with report generation and statistical analysis (Gives a glimpse of the test results instantaneously)
* Drop down menu in the software to once select the type (rating or calibre) of MCB: Rest of the test parameters get selected automatically (User can simply jump from one type of MCB to other instantaneously)
* Current, Type of Curve, CT Range, Number of poles are set automatically by the software as per the selected setting: User does not have to configure the above settings
* Software: NI LabVIEW based for user interface, password protection and user hierarchy, settings selection, automatic testing process control & report generation exported to MS-Excel
* Exact trip current wave-form (and not a vague band) and trip time are captured, displayed & recorded on PC
* Current setting is instant without any auto transformer movement (Saves time and error due to human handling)
* Test results are displayed on monitor and stored against serial number or a bar code
* Line Voltage variation has no effect on actual test current
* Generation of Reports in MS Excel format or to Print
Specification :
* Output current programmable from 0.5 A to 1250 A for magnetic trip testing of MCB (Automatic Selection via software)
* Can test 4 MCBs of single pole OR 2 MCBs of double pole OR 1 MCB of 3 or 4 pole simultaneously for magnetic trip
* PC provided: IBM PC / compatible make with NI LabVIEW based TestwareTM
* Pressure Required for pneumatic handling: Approximately 6 Bar
* Test Procedure (IEC 60898 9.10.2):
1. Continuity Test – To check for correct electrical closing in the event of MCB being made ON externally by a pneumatic ON mechanism
2. Hold Test (No Trip Test) – To check for holding mechanism for at least 0.1 s after passing current of 3 In for B curve, 5 In for C curve, 10 In for D curve MCB
3. Trip Test – To check for tripping mechanism for less than 0.1 s after passing current of 5 In for B curve, 10 In for C curve, 20 In for D curve MCB
* 500 VA branded UPS
| Brand |
SCR Elektroniks |
|---|
