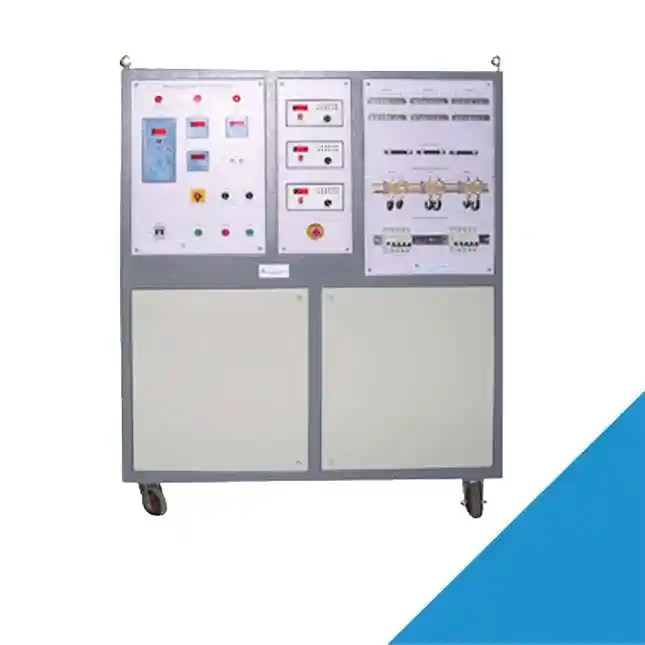

The SCR Elektroniks 3 station MCB Temperature Rise and Power Loss Test Bench is economically designed to verify temperature rise and measure power loss as per clause 9.8 of IEC 60898 with the circuit designed to follow test procedure as per Cl 9.8.2. The temperature rise is measured in accordance with Cl 9.8.3 and 9.8.4 while power loss is measured and verified as per Table 15 of Cl 9.8.5.
This test equipment also covers testing as per Indian Standard IS 8828 as well as Indonesian Standard SNI 8528-1 (BSN)
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free
* Stand-alone unit after initial configuration of test parameters
* 28 Days test module can be included as per customer demand.
* Cooling shall be provided by means of optimally placed Exhaust fans distributed all over to remove the hot air generated inside the panel cabinet.
* Microcontroller based timer unit for quick and easy user interface and automated operation
* User may opt for test bench with heating chamber for testing at 60°C
* Easy Serviceability due to smart internal wiring pattern
* Servo controlled mechanism to control current (+/- 1%) against incoming fluctuations
Specification:
* 50 / 60 Hz operation as per incoming line frequency
* Overall accuracy of the panel is better than class 1.0
* Digital Temperature Indicator with input from thermocouple
* Digital Ammeter with CT (Indication on servo controller) 6. Class 1 Accuracy
* Digital Volt Meter with 5 ranges (200mV, 2V, 20V, 200V, 250V) to measure open circuit voltage & mV drop across MCB
* Class 1 Accuracy
| Brand |
SCR Elektroniks |
|---|
