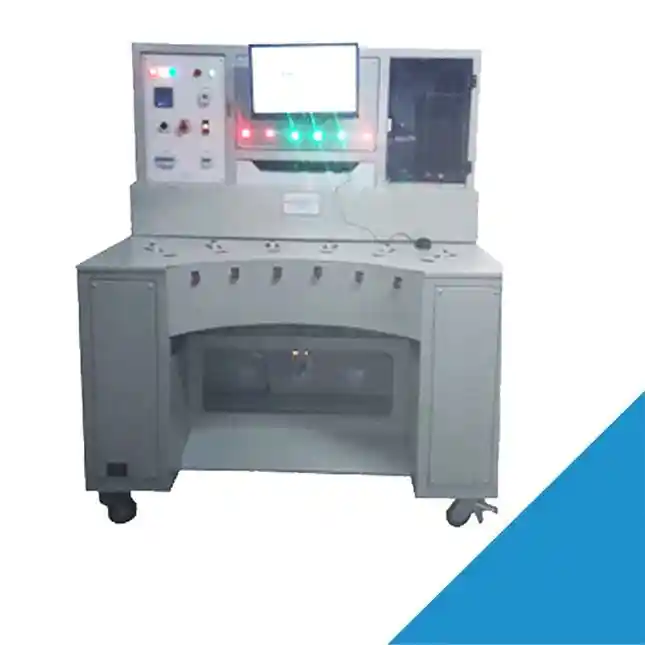

The test system is designed and customized to carry out 2.55*Intest as per Table 7 (test c) of IEC 60898 (also mentioned for routine testing of MCBs. The test is done at dc current to exactly analyze and correct the bimetallic properties of the MCB as far as thermal tripping is concerned. The unit comes with a pneumatically operated test fixture with in-built dc stepper motor that is controlled by a micro controller / PC to calibrate the breaker into a narrow tripping band programmed by the user.
This test equipment also covers testing as per Indian Standard IS 8828 as well as Indonesian Standard SNI 8528-1 (BSN)
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free
* Fully Automatic ‘Stand Alone’ Option (i.e. with or without PC)
* ON line Loading of MCBs
* Can test MCBs ranging from 0.5 Amp to 120 Amp with suitable model
* Current setting: Automatic within +/- 0.3 % of set value
* Individual DC Constant Current Source with Fine Regulation; Multiplied Reliability and Graceful Degradation
* Pneumatically operated electro-mechanical fixtures with stepper motor for calibration of the MCB
* PC based operation; Selection of MCB its parameters from PC and/or MTCM for stand alone option
* Early, OK, Late indication on each Individual Display Unit as well as on PC at same time
* Data Acquisition on PC by Windows based Software for traceability and statistical analysis
Specification
* I/p voltage : 230V AC +/-10 %
* I/p frequency : 50Hz
* O/p voltage : 10V for 10A, 5V for 20A, 2V for 100 & 200A
* O/p current (programmable)
* Line Regulation : 0.20%
* Load Regulation : 0.50%
* MCB Ratings covered for 2.55 test : 0.5, 1, 2, 4, 6, 10, 13, 16, 20, 25, 32, 40, 63, 80, 100 and 125 A (depending upon the range of the current source chosen)
* Scalable up to : 12 stations
| Brand |
SCR Elektroniks |
|---|
