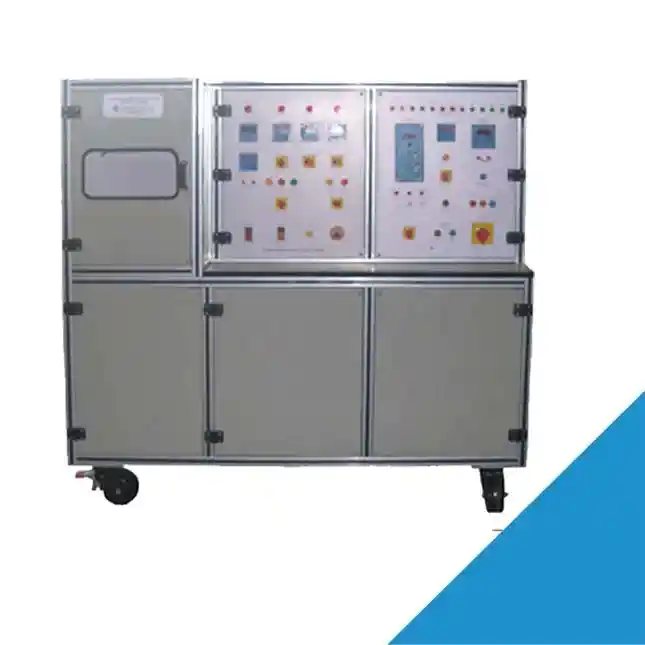

SCR Elektroniks MCB Thermal With Magnetic Characteristic Test Bench

The test system is a special version of the thermal + Magnetic test test system. The single power source able to deliver either thermal or magnetic test parameters set on the PC by the user.

This test equipment also covers testing as per Indian Standard IS 8828 as well as Indonesian Standard SNI 8528-1 (BSN)

10 People watching this product now!
  • Ini demo, bisa diisi apa saja
  • Ini demo, bisa diisi apa saja
  • Ini demo, bisa diisi apa saja
  • Ini demo, bisa diisi apa saja
  • Produk Tridinamika tersertifikasi jaminan SNI

Ini hanya demo

Free

  • Jasa Pengiriman kilat oleh tim Tridinamika

Ini hanya demo saja

2-3 Days

Free

Product Details

Specification

Specification :
* Input 415 V, 30 A (max), 3 phase, 50 Hz
* Covers the entire range of MCB from 0.5 A to 125 A : B, C, D curve.
* Thermal Test : User can set up to 4 times the rated current of MCB which includes 1.13 times rated current, 1.45 times rated current and 2.55 times rated current.
* Magnetic Test : 0.5 – 125 A MCB : B, C ,D curve Short time duty (about 100 mS) is 3000 A, which covers the max 2500 A (125 A MCB : 20 times rated current for D curve MCB). The Test is done at low voltage.
* Transient Recording Meter reads the instantaneous current and Trip time.
* Current Transformer ranges – 1A, 2A, 5A, 10A, 25A, 50A, 100A, 200A , 500A , 1000A, 2000A & 3000A – selected automatically by the software on basis of chosen MCB rating.
Output Current :
1. Continuous rating between 1 A to 600 Amps
2. Short time up to 3000 Amps
* Micro Controller based unit & software controls the sequence of operation and measures time with 1 msec resolution (for magnetic / instantaneous tripping). Heavy Duty Contactors for internal switching as per PC based test sequence.
* Separate three TIME INTERVAL METERS for each station
* Swamping inductors / resistors for stable current
