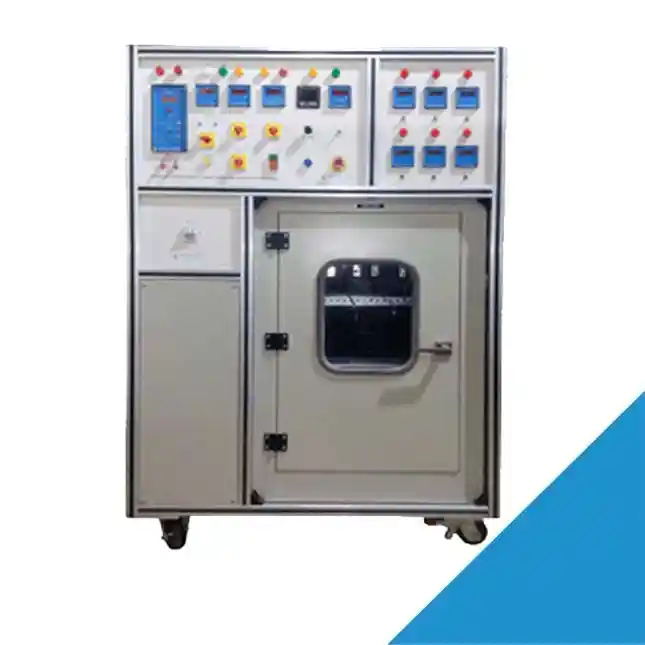

SCR Elektroniks MCB Tripping Current Characteristic Test Bench

The SCR Elektroniks 12 station MCB Tripping Characteristics Test Bench is optimally designed to verify the Tripping Characteristic of MCBs as per clause 9.10.1 of IEC 60898 (Also mentioned in Indian Standards IS 8828). The bench essentially comprises of Servo Controlled mechanism to set and maintain desired current (against incoming mains fluctuation) and a Micro controller based master controller unit plus timer, which governs the entire sequence of operation making it a stand-alone system once the user connects the MCB and configures the test parameters.

This test equipment also covers testing as per Indian Standard IS 8828 as well as Indonesian Standard SNI 8528-1 (BSN)

18 People watching this product now!
  • Ini demo, bisa diisi apa saja
  • Ini demo, bisa diisi apa saja
  • Ini demo, bisa diisi apa saja
  • Ini demo, bisa diisi apa saja
  • Produk Tridinamika tersertifikasi jaminan SNI

Ini hanya demo

Free

  • Jasa Pengiriman kilat oleh tim Tridinamika

Ini hanya demo saja

2-3 Days

Free

Product Details

Specification

* Completely stand-alone unit after initial configuration of test parameters
* MCB Range Selection : Through neatly labelled shorting links
* Chart provided on the panel for using the right CT links and Voltage Taps for required test currents (1.13 In and 1.45 In
* Instantaneous Bypass arrangement on each station in the event of MCB trip to maintain uninterrupted current
* Arrangement to connect lugs of various sizes inside the heating chamber
* Individual test time measurement for each station
* Graded inductors to maintain required OCV at the source output (Min 30 V as per standard) especially while testing less number of MCBs
* Change of test current (from 1.13 In to 1.45 In) after set time (usually 1 hour) is automatic.
* The user may simultaneously test MCBs of different brands and compare the test results (Ideal Application for Test Labs and Certification Agencies).
* PC Based Option Available (Extra) for control and data keeping on a PC (SCADA) with customized software
* User friendly digital interface to input test parameters
* 2.55 test on reduced number of stations by user setting

Specification :
* Input Supply : 230 V +/ – 10%, 35 Amps AC, 50 / 60 Hz (o/p frequency same as i/p frequency)
* Twelve samples can be tested for No Trip /Trip Test simultaneously (6 samples on 6 station bench)
* Mode of Operation: Manual Mode and Auto Mode
* Output Current : 0.5 A to 145 A
* Heating chamber of size 1200 mm, 1000 mm, 300 mm (approximate: different for 6 stations) provided with bus bar to accommodate lugs of different sizes for each station with precise temperature controller (programmed from front panel) to maintain temperature +/- 2°C (Range: 30°C to 60°C)
* Ratings of MCBs covered : 0.5A, 1A, 1.6A, 2A, 3A, 4A, 6A, 8A, 10A, 13A, 16A, 20A, 25A, 32A, 40A, 45A, 50A, 63A, 80A, 100A (Max rating of MCB can be customized such as 32, 63, 100 A)
* Available test stations on the panel : 6 or 12 stations
