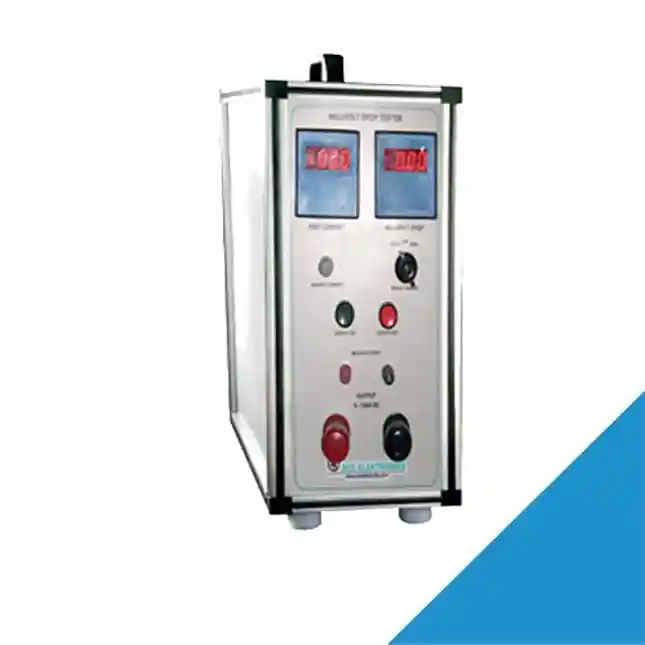

The SCR ELEKTRONIKS Millivolt Drop Tester is an industry acclaimed product. MVDT has a specially built constant current source (current generator) up to 400A (depending on model) and a dedicated PLC to store test parameters (in automatic models), perform test procedure, make the millivolt drop & junction resistance measurements and store test results, that can be retrieved later or downloaded to PC. PC based TestWare can display the test results & export those to Office, HTML, Printer or PDF. The manual models consist of the constant current source, digital ammeter and a digital millivolt meter with 3 ranges.
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free
* Microcontroller based unit
* Automated Operation Available
* Solid state DC current source from 1A to 400A depending on the range and model
* Millivolt range from 0-2000 mV
* Accurate adjustment of current with lesser time delay
* Line and load regulation of about 0.2%
* Compact in size
* Light weight and portable unit
* Heavy duty copper bus bars for minimal external voltage drop (error)
* Programmable keypad on the front panel
* LED Display to display test parameters and the test result
* PC Interface possible with software (optional) to convert test results to tabulated formats such as EXCEL
Specification :
* MVDT M05
1) Output Current : 2-50A
2) Output Voltage : 5V
3) Size (HxWxDmm3) : 370x220x370
4) Weight : Less than 10 Kg.
* MVDT M10
1) Output Current : 5-100A
2) Output Voltage : 2V
3) Size (HxWxDmm3) : 370x220x370
4) Weight : Less than 10 Kg.
* MVDT M20
1) Output Current : 10-200A
2) Output Voltage : 2V
3) Size (HxWxDmm3) : 480x220x400
4) Weight : Less than 15 Kg.
* MVDT M40
1) Output Current : 20-400A
2) Output Voltage : 2V
3) Size (HxWxDmm3) : 480x380x450
4) Weight : Less than 25 Kg.
* Common Specifications for all models:
1) Line Regulation (200V to 250V) : 0.2%
2) Load Regulation (10-100% change) : 0.2%
3) Measurement Accuracy (current) : 1%
4) Measurement Accuracy (millivolt) : 1%
5) Millivolt Range : 0-200mV & 0-2000mV
6) Input Supply : User specified. default is AC 230V ± 10%
| Brand |
SCR Elektroniks |
|---|
