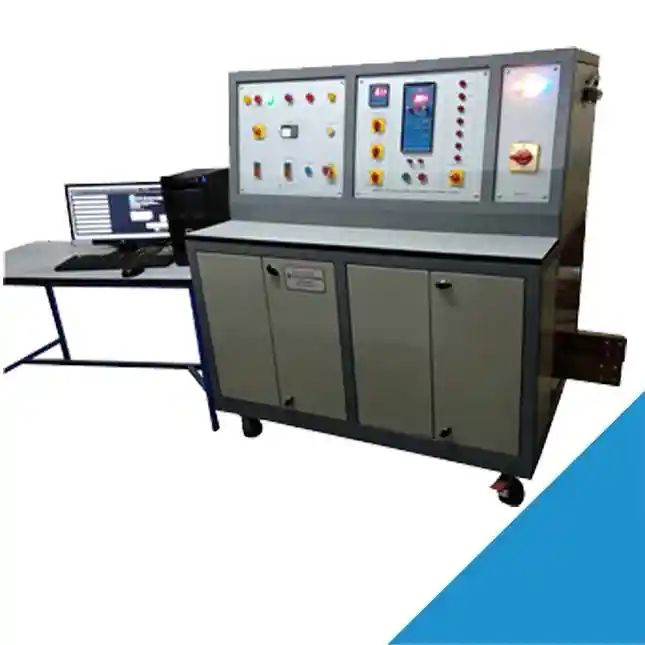

PC Based Temperature Rise Test Bench With 2000 a / 10.5 v Current Source, It is used to measure rise in temperature at various points as mentioned in standard at junctions for tests upto 2000 A.
The set-up consists of a servo controlled motorized variac, a specially designed step down transformer system, PC based control system, Temperature data logging on PCand other indications . Digital voltmeter Primary Voltage indicates the position of auto transformer (variac).
Servo controlled mechanism is used to maintain constant current throughout the test in manual mode. CR/AL(‘K’ type) type thermocouples are used for temperature sensing.
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free
Specification :
* Input Supply: Three Phase 415 VAC, 300 Amps, 50 Hz Max.
* Output: Current Source 50A to 2000A
* CT range selections: 100A, 200A, 400A, 800A, 1200A, 1600A, 2000A.
* Selection of output voltages through switches.
* Two operating modes are provided: PC & MANUAL.
* 12 Channels, Cr/Al type Thermocouple sensor for temperature sensing with PC data logging.
* Servo controlled mechanism for maintaining the Test Current at preset value in manual mode.
| Brand |
SCR Elektroniks |
|---|
